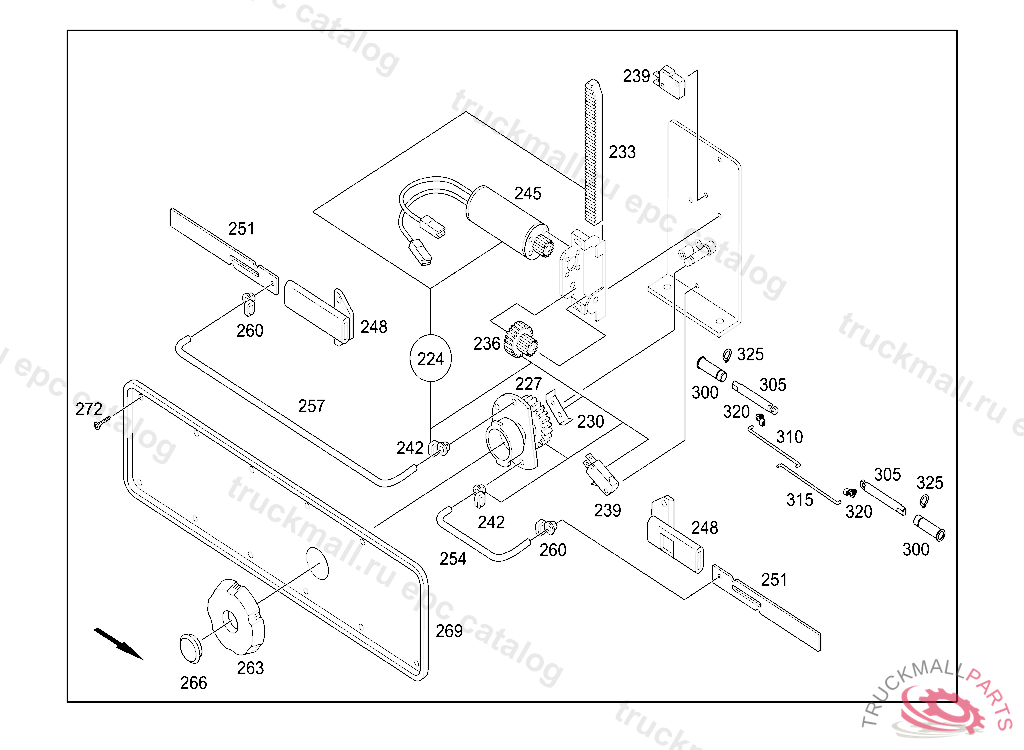

055 SWING-OUT FRONT DOOR IL. 3
Mercedes A0007330569 - ZUGSTANGE
S 431 DT 410.001
72 DOORS - 055 SWING-OUT FRONT DOOR IL. 3
Поз.
Артикул
Описание
224
A6297601108
LOCKING MECHANISM
227
A6297330018
LEVER REVERSING LEVER
230
A6297330086
CAM TRIGGER CAM
233
A6297630033
PULL ROD
236
A6297230117
GEAR DOUBLE GEAR
239
A6297630110
SWITCHTO 000 760 35 57
242
A6297230155
LOCK
245
A6297630004
MOTOR
248
A6297330064
LATCH GUIDE
251
A6297230346
SLIDE
254
A6297200192
ROD
257
A0007330369
PULL ROD
260
A6297230055
LOCK
263
A6297230109
HANDLE
266
A6297230608
COVERING PLUG
269
A6297661535
COVERING DOOR LOCKING MECHANISM
272
N000000000831
TAPPING SCREW3.5X9.5
300
A0007330464
LATCH GUIDE
305
A0007230346
SLIDE
310
A0007330469
PULL ROD
315
A0007330569
PULL ROD
320
A6297230055
LOCK
325
N000471016002
RETAINING RING. LOCK RING
