Mercedes A0009909302 - SENKSCHR M. IN.SECHS

S 431 DT 410.001

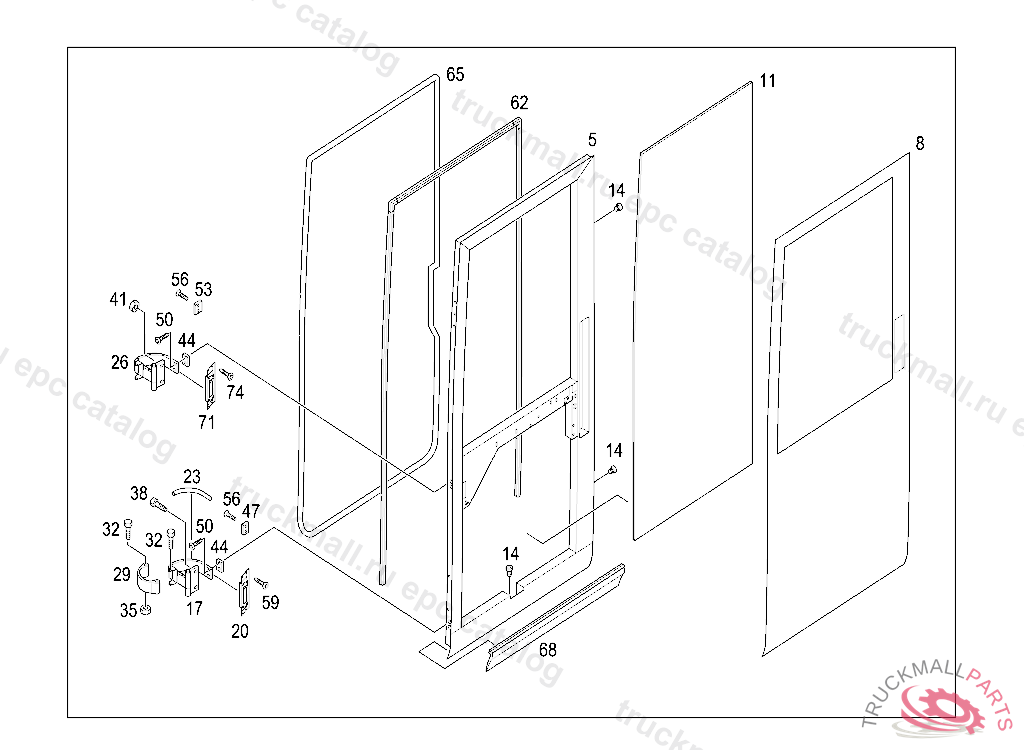

72 DOORS - 020 FRONT DOOR IL. 1

Поз.
Артикул
Описание
5
A4107200105
DOOR SHELL
5
A4107200330
DOOR SHELL
5
A4107200208
DOOR SHELL
8
A4107200009
PANELLING
11
A0009877414
RUBBER STRIPL5200MM
14
A0009845221
RIVETED NUT
17
A6297200637
HINGE
20
A6297201354
SEAL SCHARNIER UNTEN
23
A6297230064
GUIDE
26
A6297200237
HINGE TOP
29
A0007230220
DOOR CHECK
32
N910105008078
HEXAGON HEAD BOLTM8X90
35
N913023008003
NUT HORN TO BRACKET M8
38
N910105010006
SCREWM 10X20
41
N910112010001
NUT , Replaced By: N913023010002
44
A6297230410
PLATE
47
A4107230010
PLATE BOTTOM
50
A0009909302
SCREW
53
A6297230477
PLATE UPPER HINGE
56
A0029901120
SCREWM5 X 16 MM
59
N000000000452
TAPPING SCREW WIRE CABLE TO CAB 4.2X9.5
62
A4107230098
SEAL ON DOOR PILLAR
65
A4107230198
SEAL INSIDE
68
A0099873051
RUBBER SEALL810MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
71
A6297201254
SEAL SCHARNIER OBEN
74
N000000000452
TAPPING SCREW WIRE CABLE TO CAB 4.2X9.5
999
A0009906031
SCREW W HEXAGON SOCKET
999
A6297200275
HANDLE OUTSIDE
