Mercedes A4108141925 - VERKLEIDUNG

S 431 DT 410.001

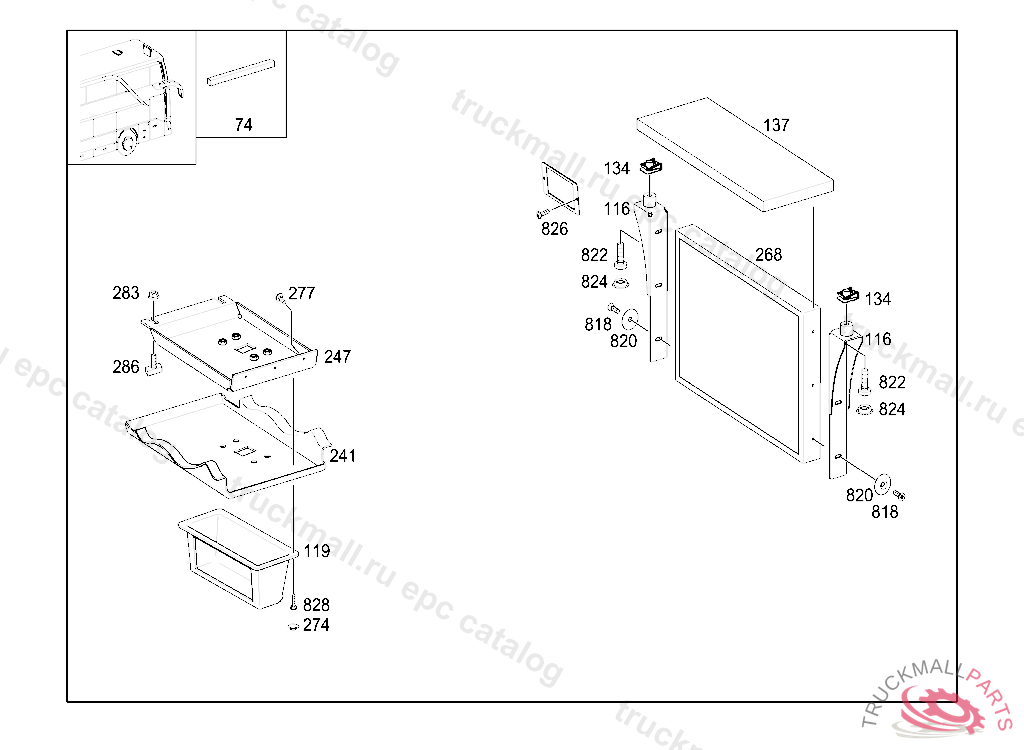

81 APPOINTMENTS - 090 INTERIOR APPOINTMENTS IL. 3

Поз.
Артикул
Описание
74
A0009870822
SEALING TAPE20X6MM/1500LG, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
116
A4108100813
BRACKET
119
A6298170007
COVER
134
A0049941845
SPRING-THREAD NUT PROTECTIVE PLATE
137
A0006828844
INSULATION550X120X20MM, TO BE ADAPTED DURING ASSEMBLY
241
A4108141025
COVER
241
A4108141925
COVER
247
A4108100313
BRACKET
247
A4108100713
BRACKET
268
A0058206289
MONITOR
274
A0009876945
CAP
277
N000000000521
TAPPING SCREW CONTROL UNIT TO FIRE WALL
277
A0019905036
SHEET METAL SCREW42X16
283
N910112006001
NUT , Replaced By: N913023006001
286
A0009900008
T-SCREWM 6X16
818
N000000002208
SCREWM5X16
820
A0099900682
COVER PLATE
822
N000000001428
HEXALOBULAR BOLT AIR CLEANER TO BRACKET
824
A0009989221
PROTECTIVE CAP, DRAWN
826
N000000000454
TAPPING SCREW SIDE REFLECTORS,K 057592
828
A0019904836
SHEET METAL SCREW. SCREWST25X 6 T20
