Mercedes A4108300342 - ZB DECKEL HINTEN,ENT

S 431 DT 410.001

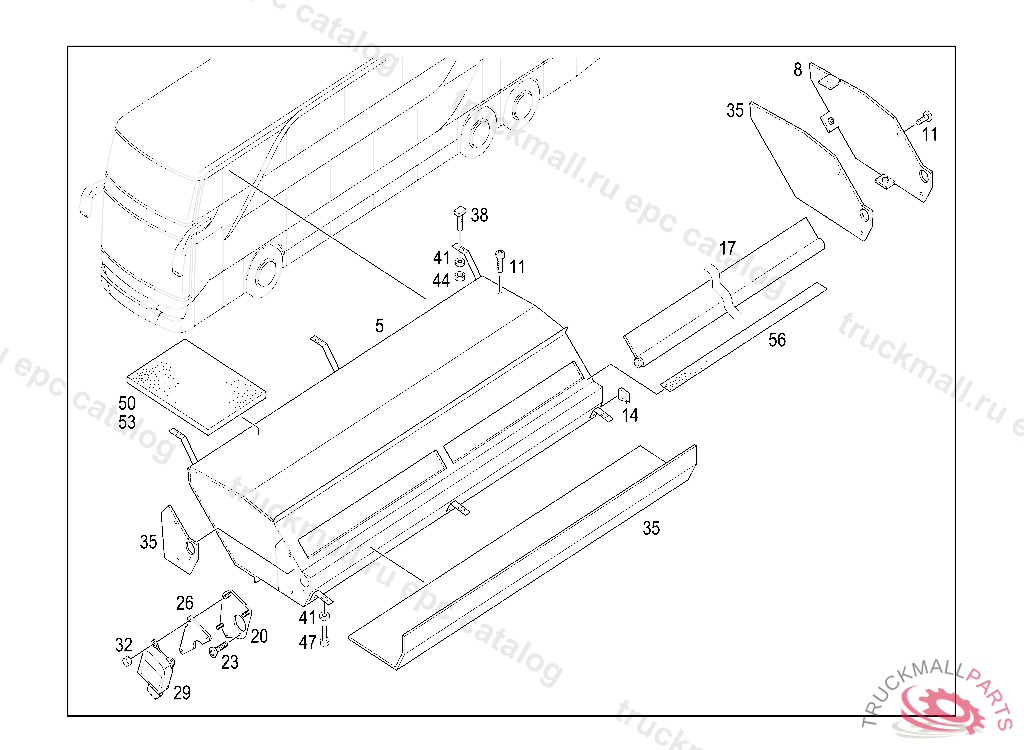

83 HEATING AND VENTILATION - 025 VENTILATION

Поз.
Артикул
Описание
5
A4108300103
HOUSING RIGHT
5
A4108300003
HOUSING LEFT
8
A4108300542
FLAP LEFT
8
A4108300342
FLAP RIGHT
11
A0039908212
SCREWM 5 X 10
14
A0019907291
CLIP FASTENERM5
17
A4108300442
FLAP
20
A4108370014
BRACKET
23
A0029901020
SCREW
26
A4108910011
PLATE
29
A4108350002
MOTOR
32
N000000002106
NUTM4
35
A4104910083
INSULATION
38
A0029908922
SCREW F CRANKCASEM8X30
41
N000125008443
WASHER EXHAUST MUFFLER TO STRAP
44
N910112008000
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
47
N910105008026
SCREW BRACKET TO CAB REAR PANEL M 8X20
50
A4108310141
COVERING
53
A4108310041
COVERING
56
A0009870822
SEALING TAPE20X6MM/1500LG, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
