Mercedes A0005450171 - RAENDELSCHRAUBE

S 431 DT 410.001

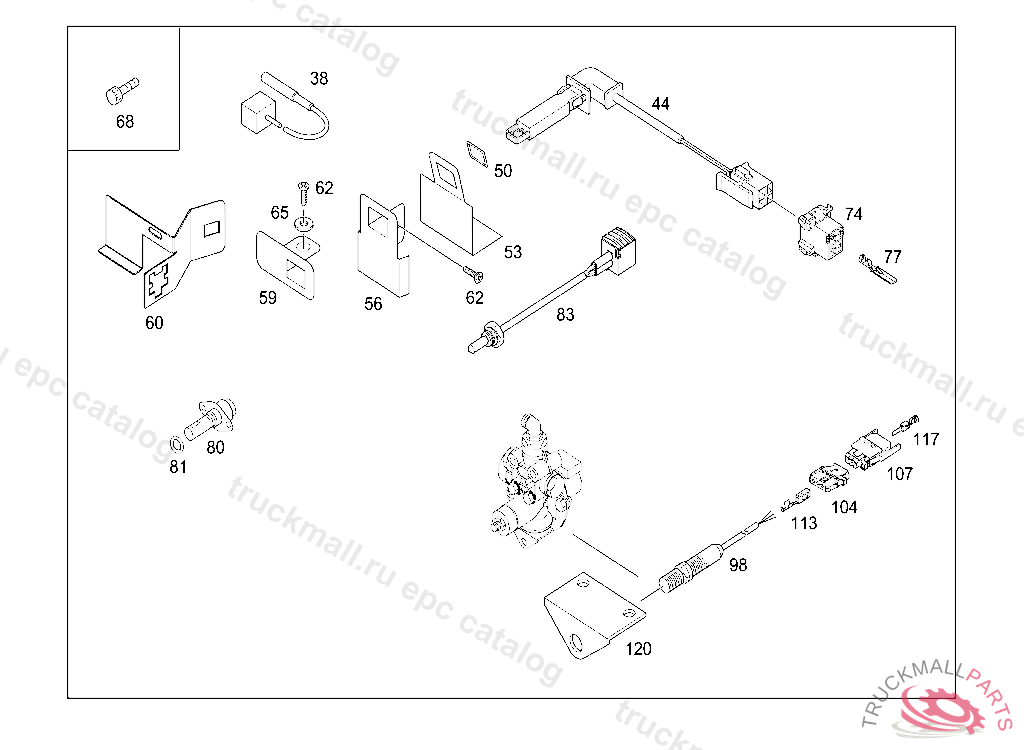

54 ELECTRICAL EQUIPMENT AND INSTRUMENTS - 455 PRESSURE SWITCH, TRANSMITTER AND SENSORS IL. 2

Поз.
Артикул
Описание
38
A0145420317
TEMPERATURE SENSOR
44
A0078200810
TEMPERATURE SENSOR
50
A0269977048
SEAL RING
53
A0008212914
BRACKET GLUED VERSION
56
A6298210014
BRACKET
59
A0008213414
BRACKET
60
A0008214614
BRACKET TEMPERATURE SENSOR
62
N000000000446
TAPPING SCREW BRACKET TO CAB FLOOR 3.5X9.5
62
N000000000460
SHEET METAL SCREW BRACKET TO FLOOR PLATE
62
N000000000461
TAPPING SCREW MOUNTING PARTS 4.8X16
65
N000000003337
WASHER
68
A0005450171
SCREW
74
A6555450828
PLUG HOUSING 4-POLE
77
A0185451928
PLUG BRAKE WEAR DISPLAY FOR RIGHT DISC BRAKE ON REAR AXLE
80
A0071531128
TEMPERATURE SENSOR MOISTURE TEMPERATURE SENSOR
81
A1029970045
SEAL RING12X2
83
A0008210281
TEMPERATURE SENSOR
98
A0025402945
PROXIMITY SWITCH MAINTENANCE FLAP
104
A0135455826
PIN BUSHING HOUSING 3-POLE
107
A0365459928
PLUG HOUSING 3-POLE
113
A0135457826
CONTACT BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 1.0-2.5 MM2
117
A0355452228
PLUG2.8 MM
120
A4103220040
BRACKET
999
A6298220006
SWITCH FRONT BOX
