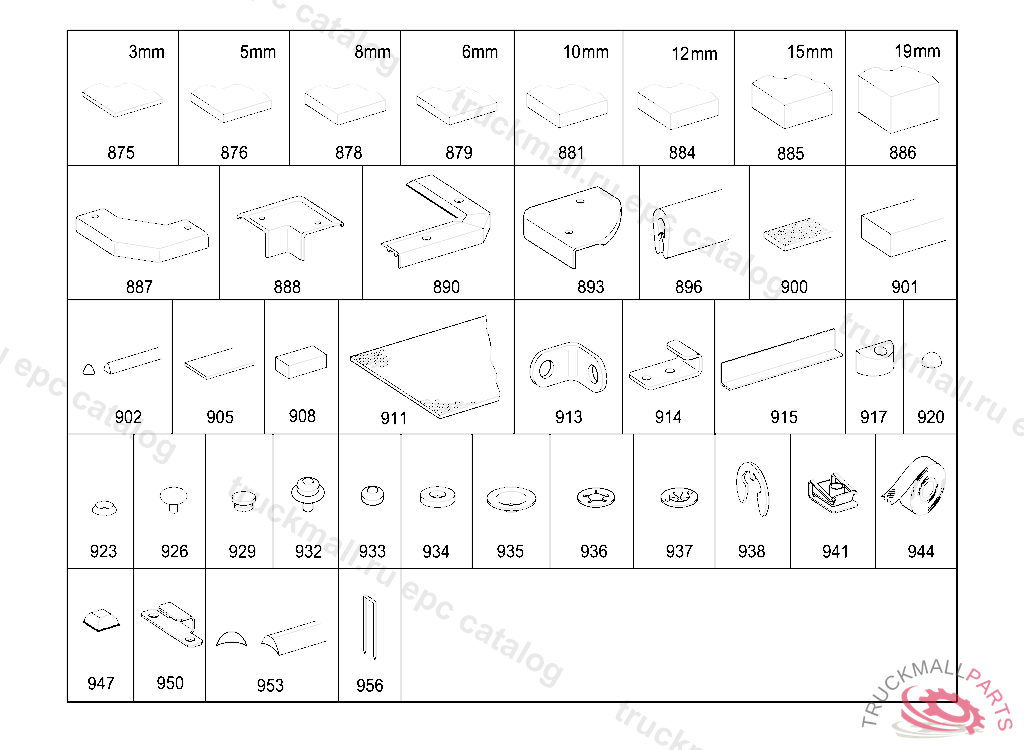

Поз.
Артикул
Описание
875
PLYWOOD2650X2050X3MM, TO BE ADAPTED DURING ASSEMBLY
876
PLYWOOD2500X1700X5MM, TO BE ADAPTED DURING ASSEMBLY
878
PLYWOOD WOOD VENEER 2500X1530X8MM,ACAJOU-ACAJOU, TO BE ADAPTED DURING ASSEMBLY
878
PLYWOOD2500X1880X8MM,ACAJOU, TO BE ADAPTED DURING ASSEMBLY
879
FLOOR WITH LINING 1769X1500X6MM, TO BE ADAPTED DURING ASSEMBLY
879
FLAT SECTION EVO GRAY 2200X1500X6MM,AL, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
881
CARPET. PLYWOOD10MM, ABMESSUNG ANGEBEN
881
PLYWOOD WITH LINING 10MM, TO BE ADAPTED DURING ASSEMBLY
881
PLYWOOD WITH LINING 2410X1500X10MM,PVC-TECHNO 630, TO BE ADAPTED DURING ASSEMBLY
884
PLYWOOD WOOD VENEER 2500X1880X12MM,ACAJOU-RAL7000, ABMESSUNG ANGEBEN
884
PLYWOOD PVC FOIL 2410X1500X12MM, TO BE ADAPTED DURING ASSEMBLY
884
WOOD FIBER SLAB WOOD VENEER 2500X1860X12MM,EKABA-EKABA, TO BE ADAPTED DURING ASSEMBLY
884
PLYWOOD , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
885
PLYWOOD2500X1530X15MM, TO BE ADAPTED DURING ASSEMBLY
885
WOOD FIBER SLAB2500X1850X15MM, TO BE ADAPTED DURING ASSEMBLY
886
PLYWOODGKL. II/II, TO BE ADAPTED DURING ASSEMBLY
887
COVER SECTION CORNER PIECE 151,5X151,5MM
888
CORNER COVERING STEP RAIL
890
CORNER COVERING STEP RAIL150X150MM
893
CORNER COVERING STEP RAIL
893
CORNER COVERING STEP RAIL
896
EDGE GUARD SECTION , ORDER BY THE METER
896
EDGE GUARD SECTION , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
896
EDGE GUARD SECTION , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
900
SOFT STRAP FLEECE STRAP,SELF-ADHESIVE, VELCROFASTENER
901
RUBBER SEAL , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
901
SEALING STRIP
902
SEALING CORD , ORDER BY THE METER
905
FELT STRIP SELF-ADHESIVE 15X1MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
905
SEALING STRIP , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
905
SEALING STRIP2 X 30 X 1000
905
RUBBER SEAL AT COVERING, ORDER BY THE METER
908
SPACER PLASTIC FOAM 80X20X6MM
908
SPACER80X20X4,5MM
908
SPACER
908
SPACER DESTINATION INDICATOR
908
SPACERTO 613 640 11 09/12 09
908
INSULATION MAT PLASTIC FOAM 35X12X2MM
908
SPACER35X12X4MM
911
RUBBER MAT BLACK 6X1000MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
913
BRACKET
914
BRACKET
915
METAL SECTION ALUMINUM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
917
BRACKET WITH CHAMFER
917
BRACKET
920
RUBBER BUFFER8X16 MM
923
WASHER W CHAMFER FABRIC GUARD PLATE
923
WASHER
926
FASTENER BUTTON
929
PLUG
929
CAP
932
FASTENER BUTTON COMPLETE
933
FASTENER BUTTON
933
LOCKING CAP
934
WASHER PUMP TO CONSOLE
934
WASHER LINE MOUNTING
934
WASHER
935
GUIDE SLEEVE
935
WASHER25X4,5X8,2MM
936
CIRCLIP
937
CLAMPING DISC30X23X3,5X0,4MM
938
CIRCLIP PIN TO CLUTCH SLAVE CYLINDER BOOT
938
LOCK PLATE PIN TO CLUTCH SLAVE CYLINDER BOOT, Replaced By: N006799005004
941
LOCK NUT. SPRING NUT MOUNTING PARTS
941
SHEET METAL NUT SPLASH GUARD
941
LOCK. NUT , Replaced By: A0039941745
941
NUT LOCK TO COVER
941
NUT
941
SPRING NUT
941
CLIP FASTENERM5
941
SPRING SHEET METAL LOCK LOWER BASIC CARRIER ON LEFT AND RIGHT
944
SEALING TAPE20X6MM/1500LG, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
944
SEALING STRIP10X2MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
944
SEALING STRIP
944
ADHESIVE TAPE , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
944
ADHESIVE TAPE , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
944
INSULATION2X12MM/L2000MM
944
SEALING STRIP
947
RUBBER BUFFER TO GLASS PANE,BOTTOM
950
BRACKET70X14X8MM
950
BRACKET70X14X13MM
953
PLASTIC SECTION12X5MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
956
STAPLE
