Mercedes A4106840477 - VERKLEIDUNG FUSSRAUM

S 431 DT 410.001

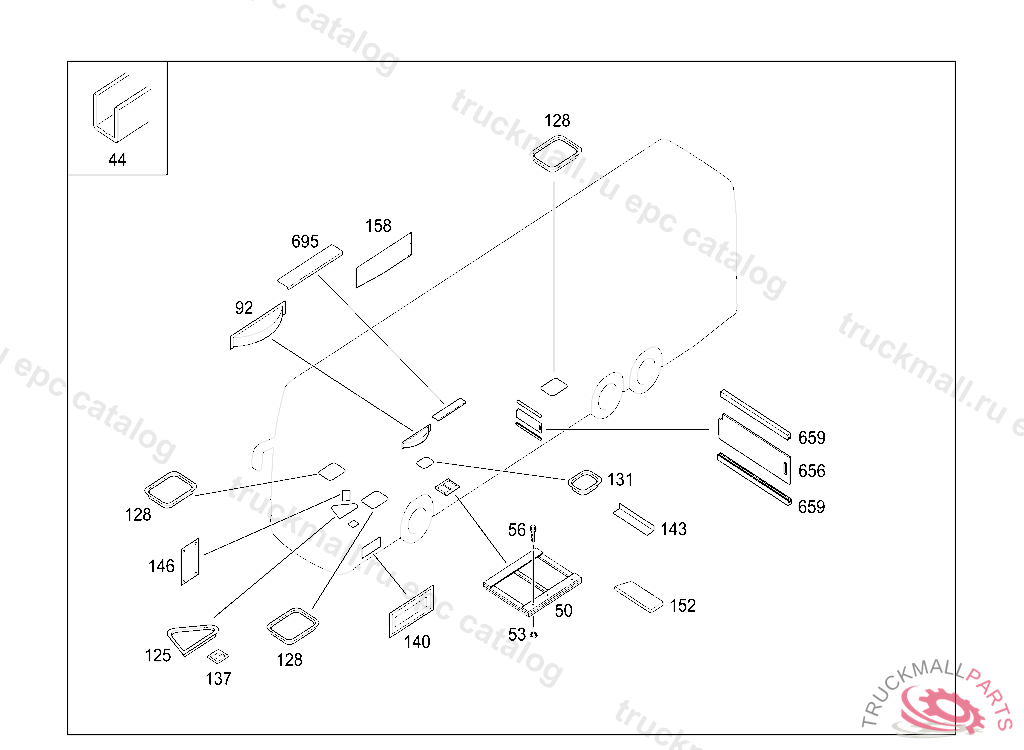

68 PANELLING AND LINING - 270 FLOORING,FLOOR FLAPS IL. 5

Поз.
Артикул
Описание
44
A0009856917
METAL SECTIONRAL7040, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
50
A0009837380
PLYWOOD , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
53
A0019907858
NUT
56
N910105006006
SCREW BRACKET AND CLAMP M6X20
92
A4106840077
PANELLING SPARE WHEEL
125
A4106800023
FLAP
128
A4106800123
FLAP
131
A4106800223
FLAP
137
A0006800117
COVER
140
A0006800218
COVERING
140
A0006800118
COVERING , Replaced By: A0006800218
143
A4106800118
COVERING
146
A4106800617
COVERING
152
A0006827144
INSULATION1000X1060X40MM
158
A4106840477
PANELLING
656
A4108551411
PLATE
659
A4108430797
PAD790MM
659
A4108430697
PAD750MM
695
A4106800107
COVERING
