Mercedes A4108960508 - Покрытие

S 431 DT 410.001

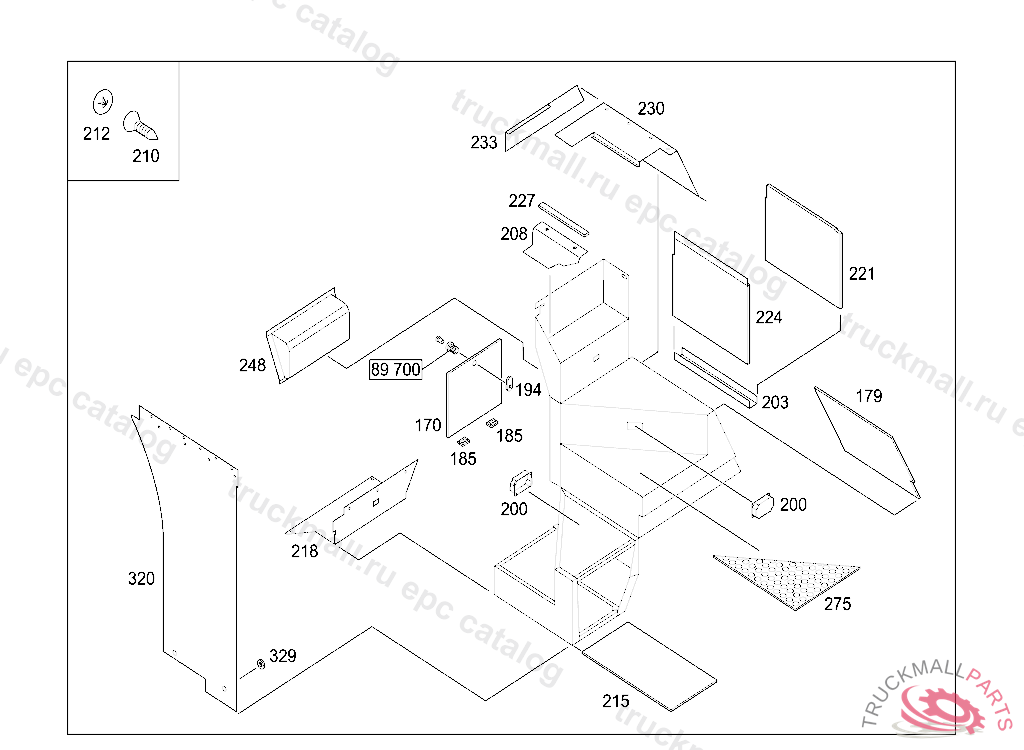

68 PANELLING AND LINING - 270 FLOORING,FLOOR FLAPS IL. 9

Поз.
Артикул
Описание
170
A4108400307
FLAP
179
A4108550711
PLATE
185
A6298430151
HINGE
194
A0009889260
LATCH PLATE
200
A4106840318
COVERING
203
A4108500012
ANGLE
208
A4106840021
COVER FRONT STEPS
210
A0019904836
SHEET METAL SCREW. SCREWST25X 6 T20
212
A0009877045
LOCKING CAP
215
A0006820104
INSULATION1000X1000MM, ABMESSUNG ANGEBEN
218
A4106600729
STEP
218
A4106600429
ROCKER PANEL
221
A4106800176
PARTITION
224
A4106800276
PARTITION
227
A0009878914
RUBBER STRIP20 X 3, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
230
A4108960508
COVERING
233
A4108960608
COVERING
248
A4106900025
PANELLING
275
A0006840001
MAT BLACK 3X1000X1000MM
320
A4106800076
PARTITION
329
N000440009104
WASHER
