Главная
›
Mercedes
›
BUS
›
S 431 DT
›
410.001
›
91 FRONT SEATS
›

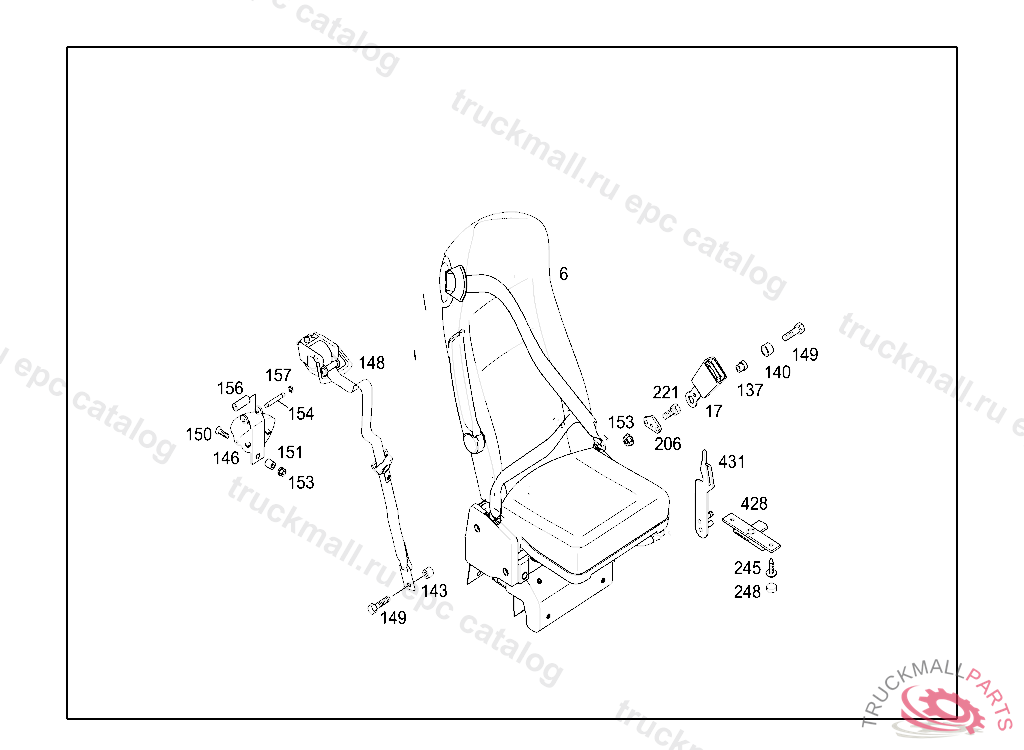

060 CO-DRIVER'S SEAT IL. 1
Mercedes A4109100103 - ZB FAHRERNEBENSITZ
S 431 DT 410.001
91 FRONT SEATS - 060 CO-DRIVER'S SEAT IL. 1
Поз.
Артикул
Описание
6
A4109100203
ADJACENT DRIVER SEAT
6
A4109100103
FRONT SEAT
17
A6298600069
FASTENER
17
A0028602869
FASTENER
137
A6299430117
BUSHING
137
A0029927901
BUSHING
140
A6299430217
BUSHING BELT LOCK MOUNTING
143
A6299430317
BUSHING ATTACHMENT,SEAT BELT TONGUE
146
A6299510823
SUPPORT
148
A6298600485
SAFETY BELT RIGHT
149
A6299510071
SCREWM10X32MM
150
A0019908120
SCREW W HEXAGON SOCKETM 8 X 16
151
A6299591217
BUSHING
153
N910112008000
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
154
A6299590815
PIN
156
A6299730417
BUSHING
157
A0009911725
WASHER
206
A6329130011
PLATE
221
N910105008016
SCREW SHIFT LEVER TO BRACKET M8X30
221
N910105008039
SCREW , Replaced By: N910143008002
245
A0019904836
SHEET METAL SCREW. SCREWST25X 6 T20
248
A0009877145
LOCKING CAP
428
A0009888960
LOCK
431
A6299100771
LEVER
999
A4109100009
FRONT SEAT LESS COVER
999
A6299950068
CLIP
