Главная
›
Mercedes
›
BUS
›
S 431 DT
›
410.001
›
81 APPOINTMENTS
›
250 GRAB HANDLE IL. 4

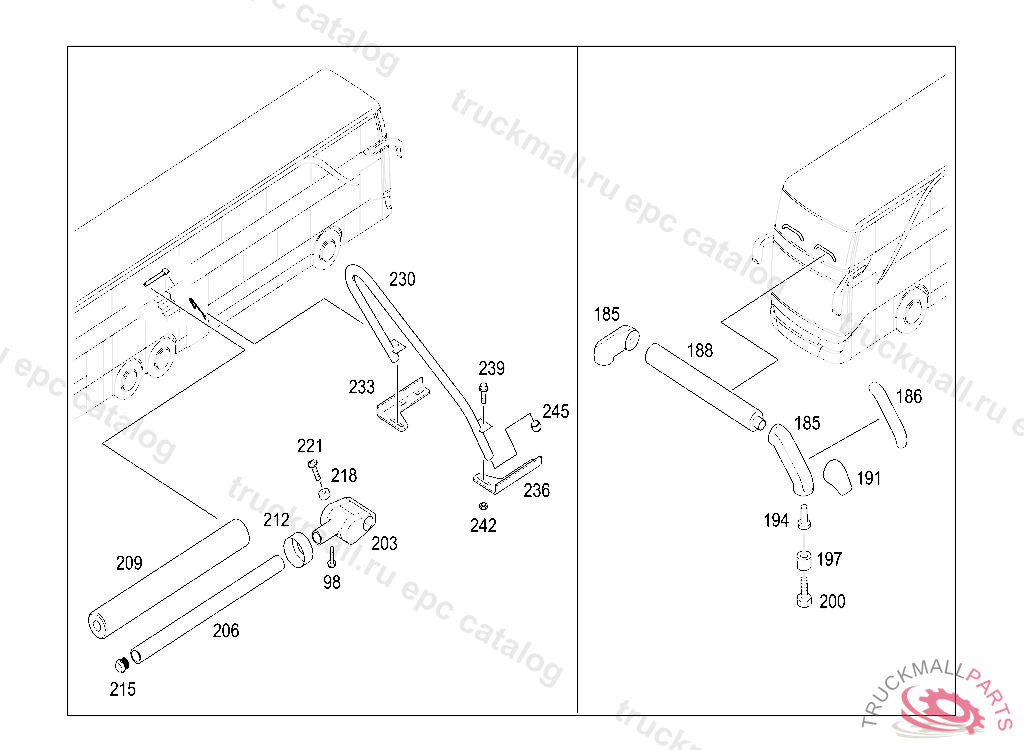

Mercedes A6278100054 - ZB HALTEGRIFF
S 431 DT 410.001
81 APPOINTMENTS - 250 GRAB HANDLE IL. 4
Поз.
Артикул
Описание
98
A0009902029
SCREW W SOCKET DRIVEM6X25 T30
185
A4107110034
CONNECTION 90 DEGREES
186
A6277117334
CAP
188
A4107100018
PANELLING
191
A6297100818
PANELLING
194
N913024008104
RIVET NUT. RIVETED NUT CONNECTING PIPE TO CAB CROSS MEMBER
197
A4106890087
SPACER
200
N910105008060
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M8X35
203
A6277100836
BRACKET. MOUNTING
206
A6299850736
METAL SECTION ALUMINUM 35X2,5, TO BE ADAPTED DURING ASSEMBLY
206
A6279852736
METAL SECTION35X2,5
209
A6297110724
PAD EVO GRAY 4, TO BE ADAPTED DURING ASSEMBLY
212
A6277110090
CAP
215
A6279870145
LOCKING CAP DIA., 34
218
A6299760132
STOP
221
A0039907512
BOLT W HEX. SOCKET
230
A6278100654
GRAB HANDLE
230
A6278100054
HANDLE , Replaced By: A6278100654
233
A6279710031
CONSOLE LEFT
236
A6279710131
CONSOLE RIGHT
239
N910105008039
SCREW , Replaced By: N910143008002
242
N910112008000
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
245
A6277117434
TUBE PROTECTIVE CAP
