Mercedes A6296251114 - HALTER MI

S 431 DT 410.001

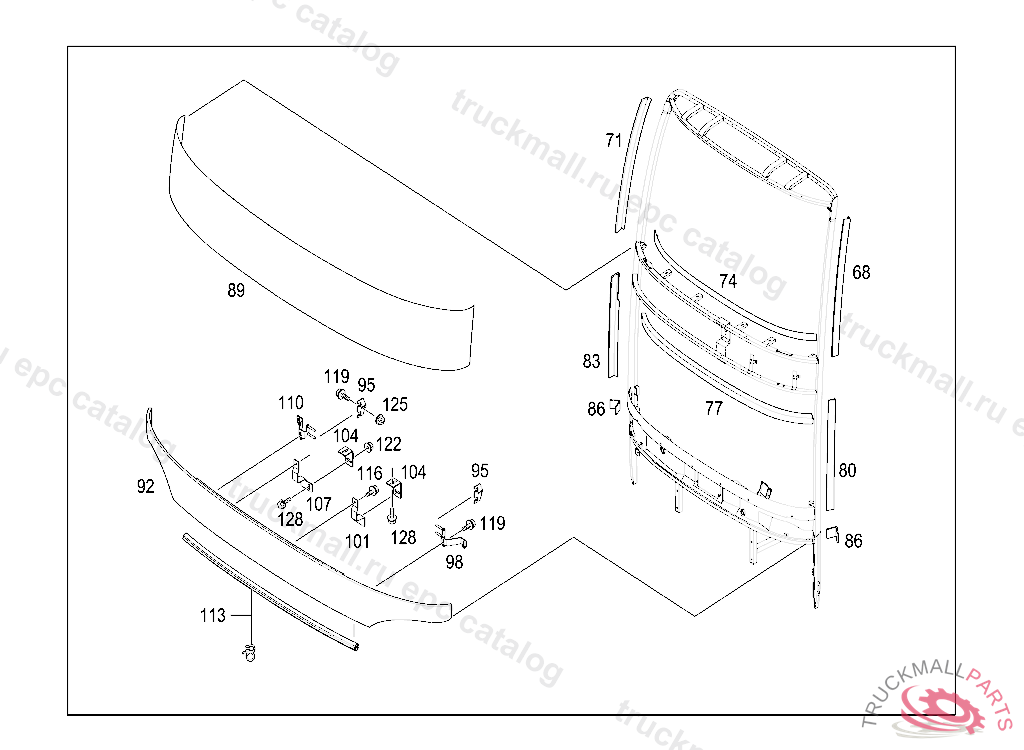

62 FRONT PANEL - 030 COWL IL. 2

Поз.
Артикул
Описание
68
A4106270312
ANGLE
71
A4106270412
ANGLE
74
A4106270612
ANGLE
77
A4106270512
ANGLE
80
A4106270112
ANGLE
83
A4106270212
ANGLE
86
A6296271212
ANGLE
89
A4106270008
COVERING
92
A6296270174
ORNAMENTAL COVER
95
A6296201814
BRACKET
98
A6296200715
CONSOLE
101
A6296251014
BRACKET , Replaced By: A6296251114
104
A6296250914
BRACKET
107
A6296251114
BRACKET , Replaced By: A6296254514
110
A6296200815
CONSOLE
113
A0009871762
RUBBER SECTION BLACK PVC, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
116
N910105008013
SCREW PIPE ELBOW TO BRACKET M8X12
119
N910143006001
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
119
N910105006004
SCREW , Replaced By: N914146006102
122
N910112008000
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
125
N910112006001
NUT , Replaced By: N913023006001
128
N910105008026
SCREW BRACKET TO CAB REAR PANEL M 8X20
