Главная
›
Mercedes
›
BUS
›
S 431 DT
›
410.001
›
83 HEATING AND VENTILATION
›
390 FUEL-OIL PIPES

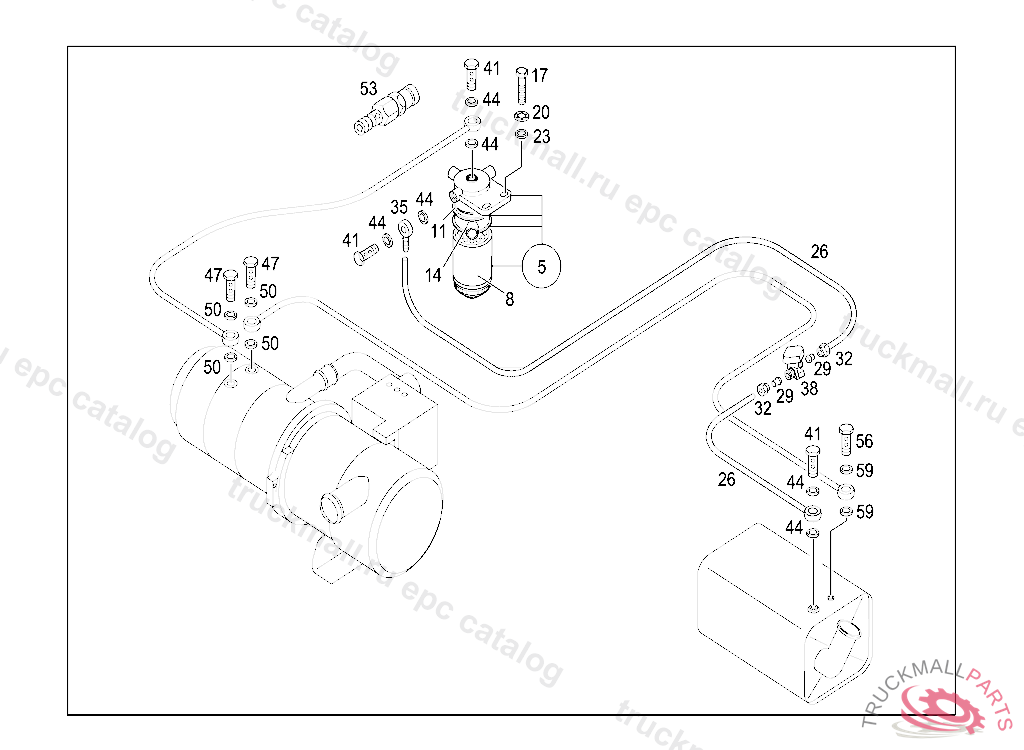

Mercedes A6298320017 - HEIZOELLEITUNG D10X1
S 431 DT 410.001
83 HEATING AND VENTILATION - 390 FUEL-OIL PIPES
Поз.
Артикул
Описание
5
A0008302518
FILTER
5
A0008302618
FILTER
8
Q8311997648
FILTER CARTRIDGE
11
Q8319128168
FULL FACE GASKET
14
Q8319128162
ADAOTER
17
N910105008016
SCREW SHIFT LEVER TO BRACKET M8X30
20
A0009943710
LOCK LEVER TO TRANSMISSION
23
N000000003250
WASHER BRACKET TO CAB REAR PANEL
26
A6298325622
PIPE LINE
26
A6298320017
PIPE LINE
29
N915003008200
BALL-TYPE NIPPLE
32
N915017010200
NUT. UNION NUT RETURN
35
A6295000024
BREATHER PIPE
38
A0028306984
SHUT-OFF VALVE
41
N915036010200
HOLLOW SCREW
44
N007603014102
SEALING RING. SEAL RING ENGINE BREATHING
47
N915036006200
HOLLOW SCREW BREATHER LINE TO HEAT EXCHANGER
50
N007603010110
SEAL RING PNEUMATIC VALVE
53
A0048201210
SWITCH
56
N915036008200
HOLLOW SCREW COMPRESSED AIR LINE TO OPERATING CYLINDER
59
N007603012111
SEAL RING LINE CONNECTION
999
N910112008000
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
