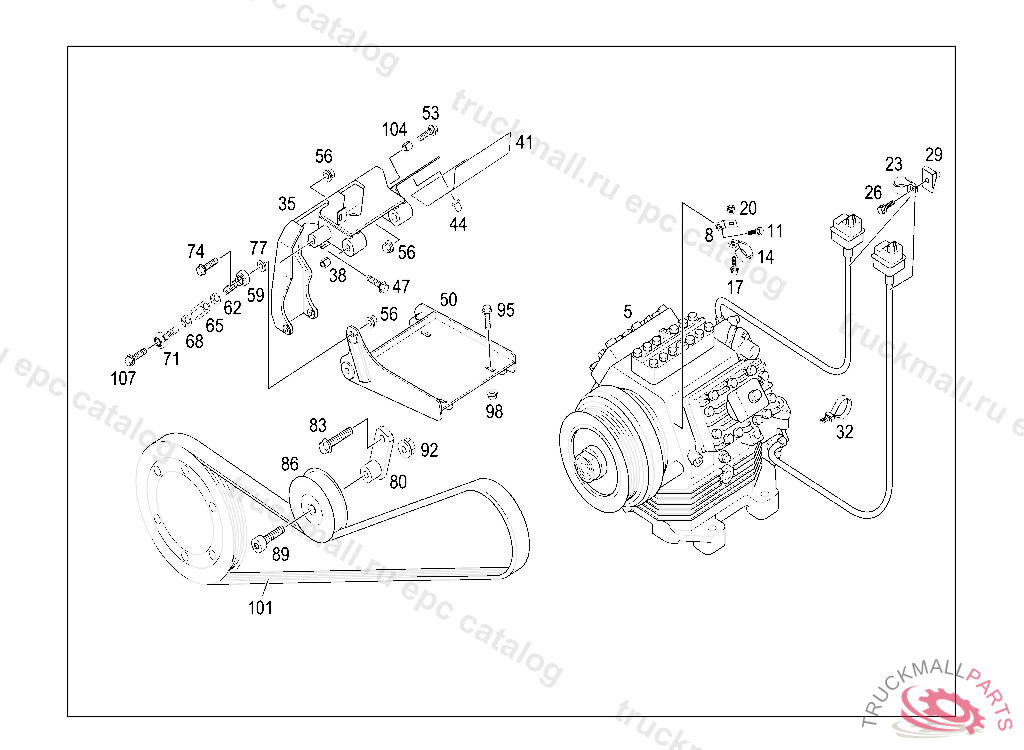

Поз.
Артикул
Описание
5
COMPRESSOR
8
BRACKET
11
SCREW BRACKET TO DISC WHEEL M 10X16,D 315832
14
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
17
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
17
SCREW , Replaced By: N914146006102
20
NUT , Replaced By: N913023006001
23
CLAMP LINE MOUNTING
26
SCREW BRACKET AND CLAMP M6X20
29
LOCK. NUT , Replaced By: A0039941745
32
LOOM TIE
35
SUPPORT
35
SUPPORT , Replaced By: A4105500238
38
BUSHING
41
COVER PLATETO A 410 550 01 38
44
BLIND RIVET4,8X7,4
47
HEXAGON HEAD BOLT. SCREW LOCK SPRING TO CROSS MEMBER M14X1.5X30
50
SUPPORT
53
HEXAGON HEAD BOLT MOUNTING PARTS M 16X120
56
HEXAGON NUT BRACKET TO SPARE WHEEL CARRIER M16X1.5
56
NUT MOUNTING PARTS
59
ARTICULATION PIECE METERING DEVICE TO COOLANT CONNECTION
62
HEXAGON NUT METERING DEVICE TO COOLANT CONNECTION, Replaced By: N000000005405
65
SCREW COLLAR24X75
68
HEXAGON NUT. NUT METERING DEVICE TO COOLANT CONNECTION
71
ARTICULATION PIECE BOTTOM
74
HEXAGON HEAD BOLT SUPPORT TO SIDE MEMBER M16X1.5X65,V 207570
77
WASHERD30MM
80
BRACKET
83
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
86
TIGHTENER PULLEY
86
TIGHTENER PULLEY REINFORCED, Replaced By: A0005502233
89
CAP BOLT. SCREW FILTER HEAD TO CYLINDER CRANKCASE
92
NUT AIR CLEANER TO BRACKET
95
HEXAGON HEAD BOLT. SCREW CLAMP TO DRAG LINK
98
HEXAGON NUT. NUT BRACKET TO SIDE MEMBER M 12X1,5
101
V-BELT
104
BUSHING
107
HEXAGON HEAD BOLTM16X1.5X110
107
SCREW MOUNTING PARTS M16 X 1.5 X 110
