Поз.
Артикул
Описание
5

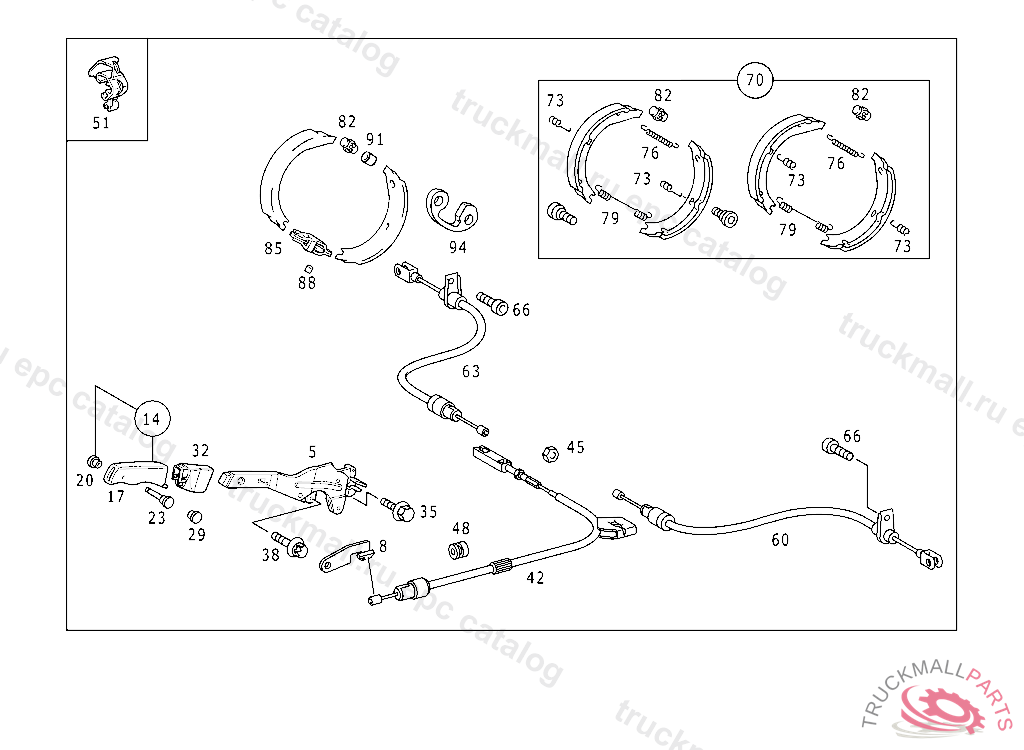

PARKING BRAKE
8
14
HANDLE
17
20
PROTECTIVE CAP , 9B51 002A/006A/007A/008A/202A/205A/206A/207A/208A/402A/405A/406A/407A/408A/608A/708AQFT168A4504 ANTHRACITE
23
PIN , 9B51 002A/006A/007A/008A/202A/205A/206A/207A/208A/402A/405A/406A/407A/408A/608A/708AQFT168A4504 ANTHRACITE
29
PROTECTIVE CAP , 9B51 002A/006A/007A/008A/202A/205A/206A/207A/208A/402A/405A/406A/407A/408A/608A/708AQFT168A4504 ANTHRACITE
32
COVER
35
SCREW ENGINE MOUNTING TO FRONT CROSS MEMBER
38
HEXALOBULAR BOLT TORSION BAR TO CARRIER M8X16
42
45
NUT SPRING-LOADED PUSH ROD
48
GROMMET BATTERY CASE
51
CLAMP BRAKE CABLE, A 03724020010815
60
BRAKE CABLE REAR LEFT
63
BRAKE CABLE REAR RIGHT
66
SCREW BRAKE CABLE TO REAR AXLE DIN912-M8X12-8.8-MK, Replaced By: N914125008511
70
73
EXTENSION SPRING BRAKE SHOES TO COVER PLATES
76
EXTENSION SPRING BRAKE SHOE PULL-BACK
79
SPRING BRAKE SHOE PULL-BACK
82
SCREW BRAKE SHOE ADJUSTMENT
85
SHACKLE
88
CYLINDER PIN. PIN
91
SUPPORTING BUSH
94
GASKET COVER PLATE TO WHEEL BEARING
