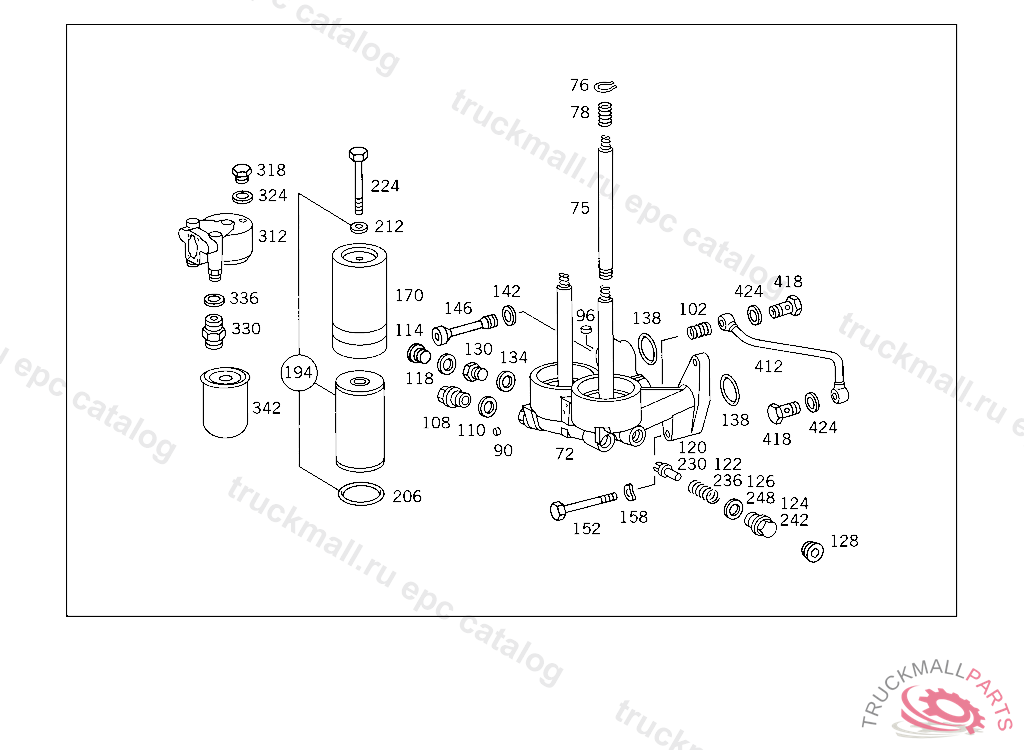

Поз.
Артикул
Описание
72
FILTER BOWL
75
FILLER NECK
76
LOCK RING ANNULAR JOINT ON AXLE SHAFT
78
SPRING
90
CAP. EXPANSION PLUG SHAFT
96
EXPANSION PLUG TRANSMISSION CASE,SIDE
102
THREADED INSERT DE-AERATION LINE TO COOLING WATER LINE
108
FITTING AT OIL PAN
110
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
114
SCREW PLUG OIL COOLER,5 360280
114
SCREW PLUG FUEL DISCHARGE
118
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
120
VALVE
122
SPRING BY-PASS VALVE
124
SCREW PLUG
126
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
128
SCREW PLUG BELL HOUSING
130
SCREW PLUG , Replaced By: A3219970630
134
SEAL RING TO PLUG AIR COMPRESSOR CYLINDER HEAD TO 003 131 48 01
138
SEAL RING SUPPORT TO CYLINDER CRANKCASE
138
SEAL RING OIL FILTER HEAD TO CYLINDER CRANKCASE FRONT SIDE 39.2X3
138
SEAL RING OIL FILTER HEAD TO CYLINDER CRANKCASE FRONT SIDE
142
SEAL RING POWER STEERING PUMP TO BEARING FLANGE
146
SCREW OIL FILTER HEAD TO CYLINDER CRANKCASE FRONT SIDE
152
SCREW PIPE ELBOW TO CHARGING AIR INTERCOOLER M 10X35,5 708090
152
SCREW BEARING BRACKET TO FRONT AXLE
152
SCREW BRACKET TO SIDE MEMBER
152
SCREW BELL HOUSING TO NMV M 10X135
152
SCREW , Replaced By: N910105010017
152
HEXAGON HEAD BOLT. SCREW VIBRATION ABSORBER TO BRACKET M 10X65
152
SCREW PLATE TO FRAME M 10X45
152
SCREW MAIN SHAFT,REAR
152
SCREW BRACKET TO TRANSMISSION,D 203092
152
SCREW , Replaced By: N304017010002
152
HEXAGON HEAD BOLT. SCREW BRACKET TO AIR INTAKE PIPE M 10X45
152
STUD BOLT BEARING COVER TO TRANSMISSION CASE, UP TO CHASSIS 4 277882 FROM CHASSIS 4 277883 SEE MICROFICHE,MODEL 750.402
158
SPRING WASHER STEERING COLUMN BRACKET TO CAB
170
HOUSING OIL FILTER BOWL
194
FILTER ELEMENT WITH GASKETS
194
FILTER ELEMENT WITH GASKETS
194
FILTER ELEMENT WITH GASKETS
194
FILTER ELEMENT , Replaced By: A4411800109
206
SEAL RING OIL FILTER BOWL WITH FULL-FLOW FILTER TO OIL FILTER HEAD
212
SEAL RING BRAKE CYLINDER STROKE INDICATOR
212
SEAL RING FROM FUEL TANK TO FUEL TANK
224
SCREW OIL FILTER BOWL WITH FULL-FLOW FILTER TO OIL FILTER HEAD
224
HEXAGON HEAD BOLT VIBRATION ABSORBER TO BRACKET
230
VALVE
236
SPRING BY-PASS VALVE
242
SCREW PLUG
248
SEAL RING TO PLUG AIR COMPRESSOR CYLINDER HEAD TO 003 131 48 01
248
SEAL RING
312
COVER (OIL FILTER HEAD)
318
SCREW PLUG SHIFTING SHAFT DETENT
324
SEAL RING VALVE TO VALVE,K 025179
330
FITTING
336
SEAL RING OIL LINE TO OIL COOLER
342
OIL FILTER
412
OIL LINE OIL RETURN LINE
412
OIL LINE OIL RETURN LINE
418
HOLLOW SCREW , Replaced By: N915036010108
418
HOLLOW SCREW HEATING CONNECTION
418
HOLLOW SCREW FUEL LINE TO FEED PUMP
424
SEALING RING. SEAL RING ENGINE BREATHING
999
EXPANSION PLUG
999
SCREW BRACKET TO BRACKET, NOT USED
999
FILTER ELEMENT WITH GASKETS
