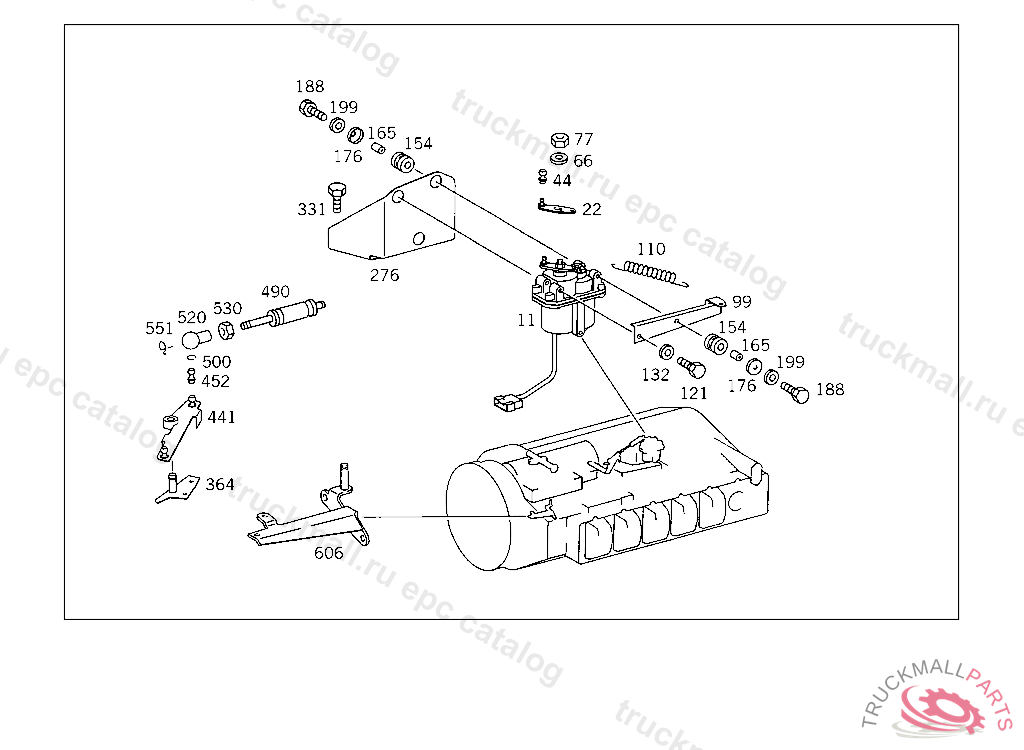

Поз.
Артикул
Описание
11
MOTOR FINAL CONTROL ELEMENT
11
MOTOR , Replaced By: A0005453265
11
MOTOR , EXHAUST STOCK OF OLD PARTS UP TO ENGINE 147934, Replaced By: A0005451165
22
LEVER
44
BALL PIVOT
44
BALL PIVOT LEVER
44
BALL PIVOT , Replaced By: A3129910120
66
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
66
SPRING WASHER , Replaced By: N000137008212
77
HEXAGON NUT. NUT , Replaced By: N913023008002
77
NUT ENGINE MOUNTING M8
99
BRACKET BRACKET WITH TENSION SPRING TO FINAL CONTROL ELEMENT
110
SPRING (RELEASE SPRING)
121
SCREW COVER PLATE TO COVER PLATE M 6 X 12
121
HEXAGON HEAD BOLT
132
SPRING WASHER LICENSE PLATE TO BRACKET
154
GROMMET ACTUATOR TO BRACKET
154
GROMMET , Replaced By: A1029970081
165
SPACER TUBE OIL LINE TO BRACKET,K 093236
176
WASHER ACTUATOR TO BRACKET
188
SPRING WASHER LICENSE PLATE TO BRACKET
188
HEXALOBULAR BOLT. SCREW LINE MOUNTING M 6X30
188
SCREW , Replaced By: N000000001479
199
SPRING WASHER LICENSE PLATE TO BRACKET
276
BRACKET
331
SCREW OIL LINE TO CRANKCASE
364
BRACKET CONTROL LEVER
441
LEVER FINAL CONTROL ELEMENT
452
BALL PIVOT LEVER
452
BALL PIVOT INJECTION PUMP
452
BALL PIVOT
452
BALL PIVOT , Replaced By: A3129910120
490
ROD LINK TO ACCELERATOR PEDAL
490
ROD
490
ROD (PUSH ROD),SPRING-LOADED
500
SNAP RING SPRING-LOADED PUSH ROD
520
BALL SOCKET
520
BALL SOCKET PULL ROD TO INTERMEDIATE LEVER
520
BALL SOCKET ROD TO LEVER
530
NUT BALL PIVOT TO LEVER
551
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
551
CIRCLIP. SECURING CLIP CONTROL ROD
606
BRACKET CONTROL
999
LEVER LOAD CONTROL, TO BE ADAPTED DURING ASSEMBLY
999
LEVER
999
LEVER
999
ROD CONTROL
999
ELECTRIC MOTOR , Replaced By: A0005450665, +001A4220700621, +001A4220720621
999
BRACKET FINAL CONTROL ELEMENT
999
BEARING BRACKET CONTROL SHAFT
999
BEARING BRACKET CONTROL SHAFT
999
BEARING BRACKET TELMA BRAKE CUT-OFF WHEN ACTUATING ACCELERATOR PEDAL
999
BEARING BRACKET CONTROL SHAFT
999
BEARING BRACKET , Replaced By: A4030701023, +001A4420701319, +001A4220700921, +001A4030721250, +001A4429935010, +001N000931006118, +001N000934006007, +001N006888004012, +001N912004006102
999
ROD
999
ROD
999
ROD
999
BRACKET FINAL CONTROL ELEMENT
999
SHAFT , 402.910 256465 404.901 005579 422.905 047593460461, Replaced By: A4420700323, +001N071803010102, +001N913004006002
999
LEVER , Replaced By: A4420702121
999
SHAFT , Replaced By: A4220700723
999
BRACKET CONTROL LEVER
999
SHAFT , Replaced By: A4220700323, +001A4073015088
999
ROD (PUSH ROD),SPRING-LOADED
999
ELECTRIC MOTOR , Replaced By: A0005450665, +001A4070704621
999
ROD
999
PIN , Replaced By: A4221440174, +001N999900008004
999
LEVER , Replaced By: A4410700621
999
SHAFT ,256464, Replaced By: A4220700323, +001A4073015088
999
WASHER INTERMEDIATE SPEED STOP TO INJECTION PUMP
999
CYLINDER , Replaced By: A0004304826
999
REPAIR KIT (POWER CYLINDER)
