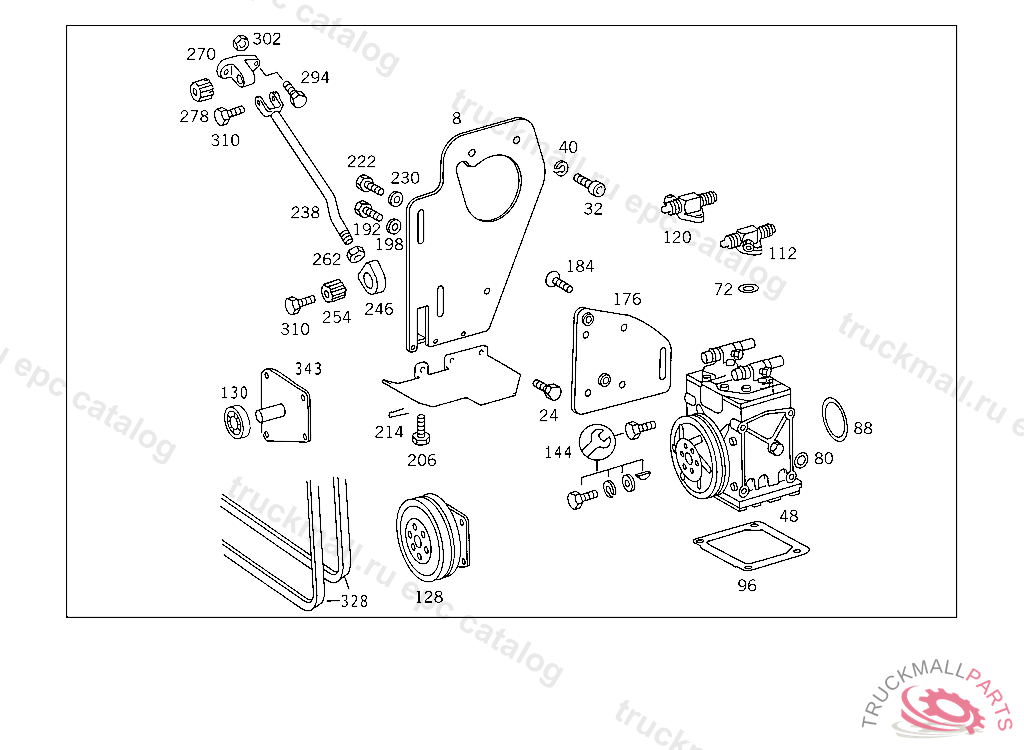

Поз.
Артикул
Описание
8
SUPPORT BRACKET TO COMPRESSOR BRACKET, TO BE ADAPTED DURING ASSEMBLY
8
BRACKET , Replaced By: A4221300235
8
BRACKET ,617.024-15-229475, Replaced By: A4222300140, +001A4221300035, +001A4222300139, +001A4222300294
8
BRACKET , Replaced By: A4032300740
24
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
24
SCREW , Replaced By: N304017008016
32
SCREW SUPPORT TO CYLINDER CRANKCASE
32
SCREW BRACKET TO FRAME SIDE MEMBER M 14X25,5 724020
40
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
48
COMPRESSOR WITH COUPLING
48
COMPRESSOR
48
COMPRESSOR , WITH COUPLING, Replaced By: A0031313801
48
COMPRESSOR , WITH COUPLING, Replaced By: A0021317101
48
COMPRESSOR , WITH COUPLING, Replaced By: A0031314001
72
SEAL RING
80
SEAL RING
88
SEAL RING
96
GASKET
112
VALVE PRESSURE VALVE
120
VALVE SUCTION VALVE
128
COUPLING6"
128
COUPLING , Replaced By: A0001325808
128
COUPLING , Replaced By: A0001325908
128
COUPLING6" 24 V
130
GROOVED BALL BEARINGTO 000 132 32 08
144
REPAIR KIT DRIVE END, WITH REFRIGERANT COMPRESSOR 001 131 17 01 FROM CODE LETTER M
144
REPAIR KIT VALVE DISC
144
REPAIR KIT CYLINDER COVER
144
REPAIR KIT COUPLING MOUNTING PARTS
144
GASKET (GASKET KIT),VALVE DISC
144
REPAIR KIT COMPRESSOR
144
REPAIR KIT (GASKET KIT),VALVE DISC, APPLICALE TO SYMMETRICAL ROTALOCK VALVE,SEE SERVICE INFORMATION 83/24
176
SUPPORT YORK COMPRESSOR
176
SUPPORT YORK COMPRESSOR,617.024-15-229475
184
SCREW REFRIGERANT COMPRESSOR TO BRACKET
184
SCREW
192
HEX. HEAD SCREW. SCREW STRUT TO SIDE MEMBER
192
SCREW END PIECE TO EXHAUST PIPE M 10X25
198
WASHER STRUT TO CROSS MEMBER
198
WASHER , Replaced By: N007349010007
206
SCREW , Replaced By: N304017010055
206
SCREW , Replaced By: N304017010050
206
SCREW UNDERRUN PROTECTION AND BRACKET TO FRAME
214
COTTER PIN LEVER TO ROD
214
COTTER PIN LEVER TO ROD, Replaced By: N000094002060
222
SCREW , Replaced By: N308676012038
222
SCREW BRACKET TO TRANSMISSION
230
WASHER BRACKET TO SIDE MEMBER
238
STIFFENING
238
STIFFENING , OLD PART NUMBERS TO BE USED UP ON MANUAL TRANSMISSION, Replaced By: A4222300394
238
STIFFENING , 229475
238
STIFFENING , Replaced By: A4032300294, +001A4031504170, +001A4031504370, +001A4032300039
238
STIFFENING , Replaced By: A4032300194
246
BEARING BODY BRACING TO SUPPORT
246
BEARING BODY , Replaced By: A4222300008
254
BUSHING
262
NUT JOINT TO BRACKET
262
NUT , Replaced By: N308675014001
270
BEARING BRACKET , Replaced By: A4222300139
270
BEARING BRACKET , Replaced By: A4222300139
270
BEARING BRACKET , Replaced By: A4222300039
270
BEARING BRACKET
278
BUSHING
278
BUSHING
278
BUSHING
294
SCREW BRACKET TO SIDE MEMBER
294
SCREW BRACKET TO CONSOLE
294
SCREW
294
SCREW , Replaced By: N304017010043
302
NUT
310
SCREW BRACKET TO FRAME SIDE MEMBER
328
V-BELT SET2 PIECES 12.5X1325
328
V-BELT SET OF NARROW V-BELTS2 PIECES 12.5X1325
328
V-BELT SET2 PIECES 12.5X1450 MM
328
V-BELT SET2 PIECES
328
V-BELT , Replaced By: A0039976292
328
V-BELT FAN DRIVE,D 180260
328
V-BELT12.5X1350
343
ALTERNATOR WITH REGULATOR INCORPORATED,LESS PULLEY BOSCH 28V 110/180A
343
BRACKET TIGHTENER PULLEY
999
HEXAGON HEAD BOLT. SCREW CLUTCH TO FLYWHEEL M8X16 MM
999
OIL FILLER NECK
999
OIL FILLER NECK
999
PROTECTIVE PLATE
999
INTERMEDIATE PIECE FAN TO VIBRATION DAMPER
999
INTERMEDIATE PIECE , Replaced By: A4030350914
999
PULLEY TWO-GROOVE
999
INTERMEDIATE PIECE , Replaced By: A4220350314, +006N000933008247
999
GASKET
999
COVER
999
CLAMPING BOLT (CLAMPING BOLT)
999
SUPPORT ALTERNATOR
999
INTERMEDIATE PIECE PULLEY
999
PULLEY THREE-GROOVE
999
GUIDE TUBE
999
INTERMEDIATE PIECE FAN TO VIBRATION DAMPER
999
PULLEY
999
BUSHING
999
BUSHING
999
V-BELT FROM TIGHTENER PULLEY TO FAN DRIVE 12X1250 MM,D 180260
999
GASKET
999
SUPPORT REFRIGERANT COMPRESSOR, NOT USED
