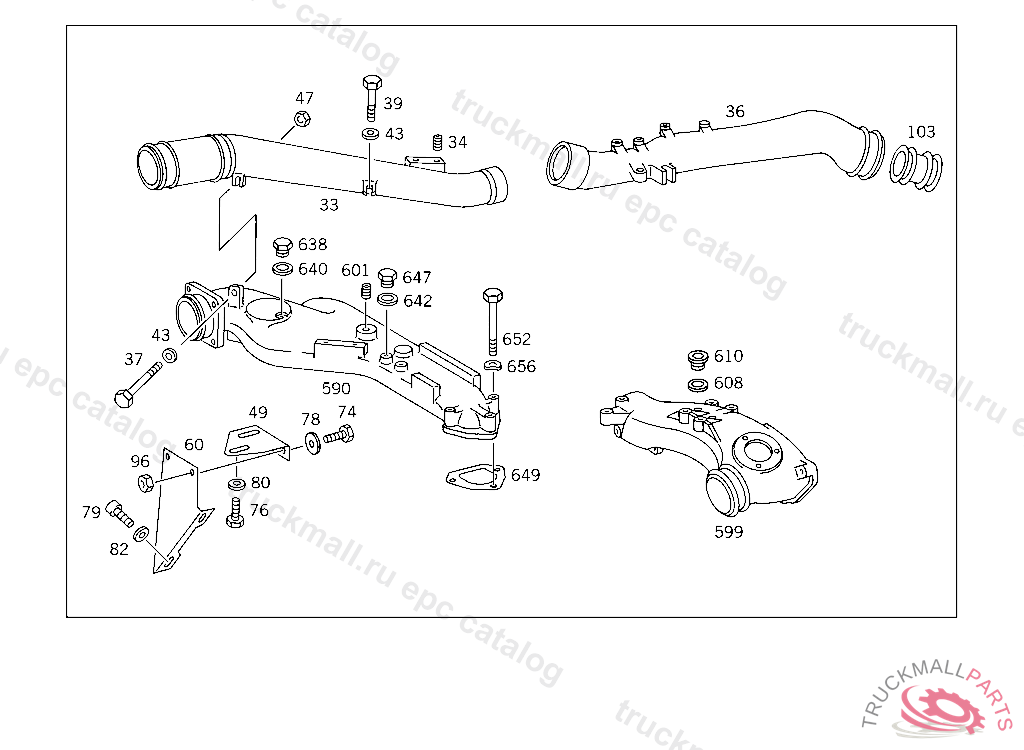

Поз.
Артикул
Описание
33
AIR LINE (CHARGE AIR PIPE),725048
33
AIR LINE (CHARGE AIR PIPE)
33
AIR LINE ,725047, Replaced By: A4410901537, +001A3760780244, +001A4420780180, +001A4410901837, +001N000931010274, +003N000933008025
33
CHARGING AIR LINE , Replaced By: A4410901137
34
THREADED INSERT
36
CHARGING AIR LINE (CHARGE AIR PIPE)
37
HEXAGON HEAD BOLT AUTOMATIC TRANSMISSION AT ENGINE M10X60
37
HEXAGON HEAD BOLT. SCREW SHIFTING TUBE TO SHIFT LEVER M 10X90
37
SCREW CYLINDER TO BRACKET, UP TO IDENT NO. - ,FROM IDENT NO. SEE SA 44120 762132 N 000000 P 000000
37
HEXAGON HEAD BOLT. SCREW BRACKET TO TRANSMISSION M 10X50
37
SCREW. HEXAGON HEAD BOLT TRANSMISSION CASE M10X80
37
SCREW , Replaced By: N304017010030
39
SCREW , Replaced By: N304017010030
39
SCREW PIPE ELBOW TO BRACKET M 10X50
39
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
39
SCREW DE-AERATION LINE TO THERMOSTAT BRACKET M 10X120
43
WASHER BRACKET TO COVERING
43
WASHER , Replaced By: N009021010209
43
WASHER STRUT TO CROSS MEMBER
47
NUT , Replaced By: N304032010002
47
NUT
49
BRACKET CHARGE AIR PIPE, NOT USED
49
BRACKET CHARGE AIR PIPE TO CYLINDER CRANKCASE
60
BRACKET CHARGE AIR PIPE
74
HEXAGON HEAD BOLT BRACKET TO BRACKET M8X25
74
SCREW , Replaced By: N304017008034
74
SCREW BRACKET TO CROSS CONNECTION STRUT
76
SCREW , Replaced By: N304017008021
76
SCREW PIPE CLAMP
76
SCREW CABLE HARNESS MOUNTING
76
SCREW CLAMP TO EXHAUST PIPE AND TO FLEXIBLE METAL TUBE M 8X25
78
WASHER BRACKET TO LEFT SIDE MEMBER
78
WASHER , Replaced By: N009021008213
79
SCREW , Replaced By: A4419905201
79
SCREW BRACKET TO BRACKET, NOT USED
80
WASHER
80
WASHER EXHAUST MUFFLER TO STRAP
80
WASHER , Replaced By: N007349008007
82
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
82
WASHER BRACKET TO FRAME SIDE MEMBER 16/25/4 MM
82
WASHER CONSOLE TO FENDER BRACKET
96
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
103
CONNECTING PIPE
103
CONNECTING PIPE EXHAUST GAS TURBOCHARGER TO CHARGING AIR LINE
103
CONNECTING PIPE AIR INTAKE PIPE TO TURBOCHARGER, TO BE SELF-PREPARED
103
CONNECTING PIPE AIR INTAKE PIPE TO TURBOCHARGER
103
CONNECTING PIPE EXHAUST GAS TURBOCHARGER TO CHARGING AIR LINE
103
CONNECTING PIPE , Replaced By: A4420980016
103
SPACER TUBE CONNECTION OF CHARGING AIR PIPES, TO BE ORDERED ONLY FROM MTU-FRIEDRICHSHAFEN
590
AIR LINE (TRANSVERSE CHARGING AIR PIPE),551022
590
AIR LINE ,551023725047, Replaced By: A4410901837, +001A3760780244, +001A4420780180, +001A4410901537, +001N000931010274, +003N000933008025
590
AIR LINE , Replaced By: A4410981707
590
CHARGING AIR LINE (TRANSVERSE CHARGING AIR PIPE),725048
599
CHARGING AIR LINE (TRANSVERSE CHARGING AIR PIPE)
599
AIR LINE , Replaced By: A4410902437
599
AIR LINE (TRANSVERSE CHARGING AIR PIPE)
599
AIR LINE , Replaced By: A4410982107
599
CHARGING AIR LINE (TRANSVERSE CHARGING AIR PIPE)
599
CHARGING AIR LINE (TRANSVERSE CHARGING AIR PIPE)
601
THREADED INSERT ,5 462573
601
THREADED INSERT
601
THREADED INSERT
601
THREADED INSERT
601
THREADED INSERT
601
THREADED INSERT
601
THREADED INSERT
601
THREADED INSERT
601
THREADED INSERT
608
SEAL RINGTO 376 131 74 01
608
SEAL RING POWER STEERING PUMP
608
SEAL RING TEMPERATURE GAUGE SENDER UNIT
608
WASHER ELECTRONIC DIESEL CONTROL,901221
610
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
610
SCREW PLUG , Replaced By: N000908022011
610
SCREW PLUG BELL HOUSING TO 620 251 07 01,620 251 16 01, 426,427,428,521,522 5 095724 532 5 104253
610
SCREW PLUG RETAINER FOR RPM SENSOR ON WATER PUMP AND CHARGE PRESSURE PIPE
610
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
638
SCREW PLUG 4/2-WAY VALVE
640
SEAL RINGTO 001 431 72 14
642
SEAL RING PRESSURE CONNECTION TO AIR COMPRESSOR
647
SCREW PLUGROCKINGER,TYP 59 U150
647
SCREW PLUGROCKINGER TYP 59 G140,59 G150, Replaced By: N007604012105
649
GASKET
649
GASKET CHARGE AIR PIPE TO INTAKE MANIFOLD
652
SCREW , Replaced By: N304014008001
652
SCREW FRONT AXLE REGULATING SOLENOID VALVE M 8X75
656
SPRING WASHER , Replaced By: N000137008212
656
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
999
CAP
999
FITTING
999
CHARGING AIR INTERCOOLER , Replaced By: A0010989120
999
CHARGING AIR INTERCOOLER , Replaced By: A0020986220
999
CHARGING AIR INTERCOOLER
999
GASKET
999
GASKET , Replaced By: A4421411380
999
INTAKE MANIFOLD
999
AIR INTAKE PIPE
999
BAFFLE PLATE (CONNECTING LEDGE)
999
BRACKET (CHARGE AIR PIPE),LEFT, 423 - 121553 424 - 001918
999
BUSHING
999
SCREW , Replaced By: A4419905201
999
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, REAR
999
BRACKET , Replaced By: A4470980739, +001A6205240340
999
FLANGE BRACKET TO SOLENOID,012723
999
SPRING WASHER CAB FLOOR
999
SCREW , Replaced By: N304017006020
999
SCREW LICENSE PLATE TO BRACKET
999
NUT , Replaced By: N913023010002
999
NUT PUMP TO BRACKET
999
NUT , Replaced By: N913004006001
999
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
999
COMBINATION BOLT CHARGE AIR PIPE TO INTAKE MANIFOLD M 10X130
999
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
