Поз.
Артикул
Описание

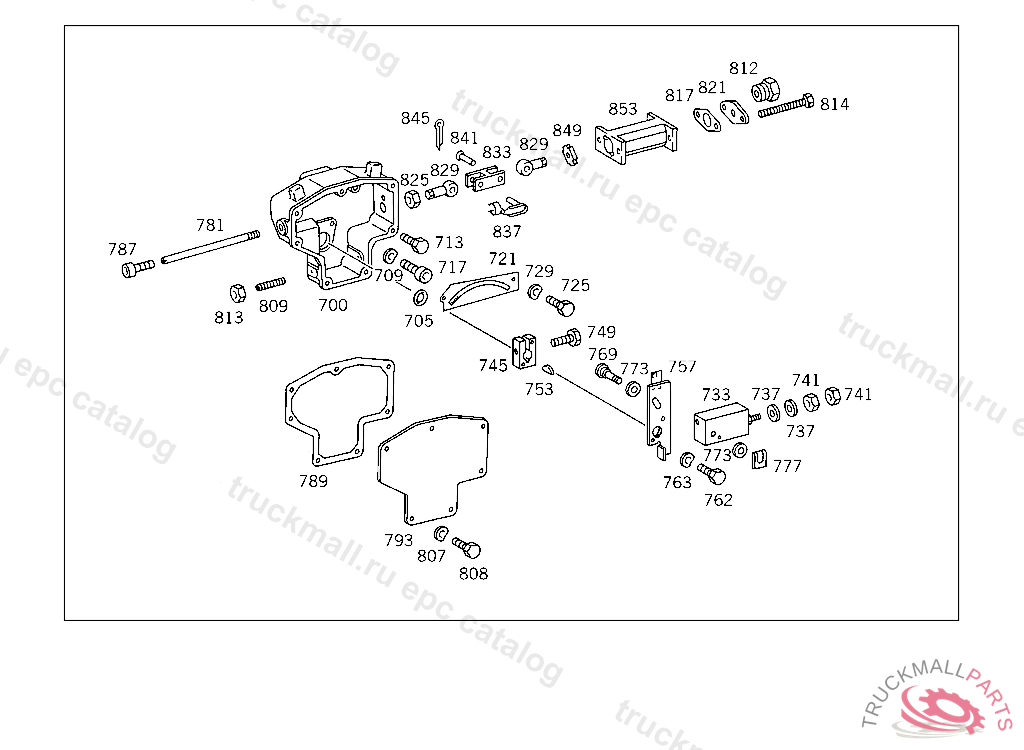

700
HOUSING INJECTION PUMP CONTROL
705
SEAL RING CONTROL HOUSING TO INJECTION PUMP
709
SPRING WASHER LICENSE PLATE TO BRACKET
713
SCREW CAB FLOOR COVERING M 6X25
717
SCREW COVERING TO CAB
721
POINTER DIAL TO GOVERNOR HOUSING
725
SCREW DIAL TO GOVERNOR HOUSING
729
SPRING WASHER ALTERNATOR CONNECTION D+
733
GUIDE TUBE
733
GUIDE TUBE , Replaced By: A4040700677
737
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
737
WASHER FUSE
741
NUT TACHOGRAPH TO BRACKET
745
HUB
749
SCREW LICENSE PLATE TO BRACKET
749
SCREW , Replaced By: N304017006020
753
WOODRUFF KEY INJECTION PUMP
757
LEVER (CONTROL LEVER),INJECTION PUMP
762
SCREW LEVER TO SHAFT
762
SCREW , Replaced By: N304017005002
763
SPRING WASHER ALTERNATOR CONNECTION D+
769
PIN CONTROL LEVER
773
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
777
CLIP CABLE TO BRACKET,5 318121
781
GUIDE SHACKLE PIN
787
SCREW SHACKLE PIN
789
GASKET COVER TO GOVERNOR HOUSING
793
COVER COVER TO GOVERNOR HOUSING
807
SPRING WASHER LICENSE PLATE TO BRACKET
808
SCREW PUMP TO BRACKET
808
SCREW LICENSE PLATE TO BRACKET
808
SCREW , Replaced By: N304017006016
808
SCREW , Replaced By: N304017006020
809
STUD
809
STUD CONTROL LEVER STOP
812
BUSHING BOTTOM PLUG CONNECTION
813
NUT CONTROL LEVER STOP
814
SCREW CONTROL BOWDEN CABLE
817
GASKET TO LOCK COOLING WATER CONNECTION
817
GASKET , Replaced By: A4440720180
821
FLANGE TO LOCK COOLING WATER CONNECTION
825
NUT TACHOGRAPH TO BRACKET
829
ROD END CONTROL BOWDEN CABLE
833
CONNECTOR CONTROL BOWDEN CABLE
837
PIN ENGINE HOOD RELEASE CABLE TO ENGINE HOOD CATCH LOWER PART
841
PIN CONTROL BOWDEN CABLE
845
COTTER PIN BRACKET TO BATTERY CASE, 415 5 014668 416 5 000515 417 4 972023
849
SHACKLE CONTROL BOWDEN CABLE
853
GUIDE CONTROL BOWDEN CABLE
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
999
NUT HEATING PIPE TO BRACKET
999
PULL ROD FROM CONTROL SHAFT BEARING TO ENGINE SHAFT, TO BE ADAPTED DURING ASSEMBLY
999
PULL ROD SHIFTING ROD
999
PULL ROD BRAKE POWER REGULATOR CONTROL, TO BE ADAPTED DURING ASSEMBLY
999
PULL ROD FROM REAR CONTROL LEVER TO CONTROL SHAFT 600 MM, TO BE ADAPTED DURING ASSEMBLY
999
PULL ROD FROM CONTROL SHAFT BEARING TO INTERMEDIATE LEVER 400 MM, TO BE ADAPTED DURING ASSEMBLY
999
PULL ROD FROM ACCELERATOR PEDAL TO CONTROL SHAFT BEARING, TO BE ADAPTED DURING ASSEMBLY
999
NUT
999
HEXAGON HEAD BOLT RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT M10X20
999
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
999
BALL PIVOT , Replaced By: A3129910120
999
BALL STUD. BALL PIVOT TOP B10X4,5 MM
999
SEALING RING. SEAL RING DELIVERY LINE TO STEERING
999
WASHER BEARING BRACKET TO BRACKET
999
NUT , Replaced By: N304032008006
999
NUT L.H. THREAD
999
NUT BALL PIVOT TO LEVER
999
SCREW , Replaced By: N304017010028
999
SCREW BRACKET TO SIDE MEMBER
999
SCREW , Replaced By: N304017006012
999
LOCK RING SHOCK ABSORBER TO BRACKET,1D 006005
999
NUT , Replaced By: N304035008001
999
WASHER EXHAUST MUFFLER TO STRAP
999
WASHER , Replaced By: N000125008443
999
THREADED UNION OPERATING ROD
999
ROD ACCELERATOR PEDAL TO LEVER
999
CAP TO PLUG AIR COMPRESSOR OPENING,128243
999
LEVER FINAL CONTROL ELEMENT
999
BEARING TUBE
999
BRACKET INTERMEDIATE AXLE
999
SHAFT (INTERMEDIATE SHAFT)
999
SHAFT
999
LEVER (DOUBLE LEVER)
999
BRACKET INTERMEDIATE AXLE
999
LEVER (DOUBLE LEVER), FROM ENGINE 616807,ALSO INSTALLED ON 616100
999
SPRING
999
BRACKET BRACKET TO INJECTION PUMP
999
BRACKET BRACKET TO TIMING CASE COVER
999
LEVER (CONTROL LEVER),INJECTION PUMP
999
LEVER (CONTROL LEVER),INJECTION PUMP
999
LEVER
999
BEARING TUBE
999
SHAFT
999
BEARING BRACKET
999
PIN (INTERMEDIATE SHAFT)
999
DIAL
999
BRACKET
999
BEARING BRACKET
999
THREADED UNION , Replaced By: A4470720082
999
BEARING BRACKET
999
LEVER
999
LEVER
999
SHAFT
999
SHIM
999
BEARING TUBE
999
SCREENING PLATE
999
BRACKET FINAL CONTROL ELEMENT
999
BUSHING MOUNTING
999
BUSHING
999
SPACER TUBE CONTROL
999
PIVOT PIN
999
LEVER ,253411
999
LEVER
999
BRACKET COMPRESSED AIR CYLINDER
999
LEVER
999
ROD (PUSH ROD)
999
LEVER (CONTROL LEVER),INJECTION PUMP
999
BEARING BRACKET
999
BALL PIVOT INJECTION PUMP
999
FITTING
999
RUBBER BUFFER BUFFER TO SUPPORT
999
GREASE NIPPLE
999
BALL SOCKET ACCELERATOR CONTROL
999
BALL SOCKET PULL ROD TO LEVER
999
HOLLOW SCREW FOR HORIZONTAL MOUNTING OF HAND PUMP TO FEED PUMP
999
BUFFER BUFFER TO SUPPORT
999
REPAIR KITTO 000 070 17 83
999
REPAIR KIT
999
CYLINDER INCREASE IN NUMBER OF REVOLUTIONS KNORR
999
CYLINDER SHUT-OFF CYLINDER
999
CYLINDER , Replaced By: A0000702183
999
CYLINDER , Replaced By: A0000702183
