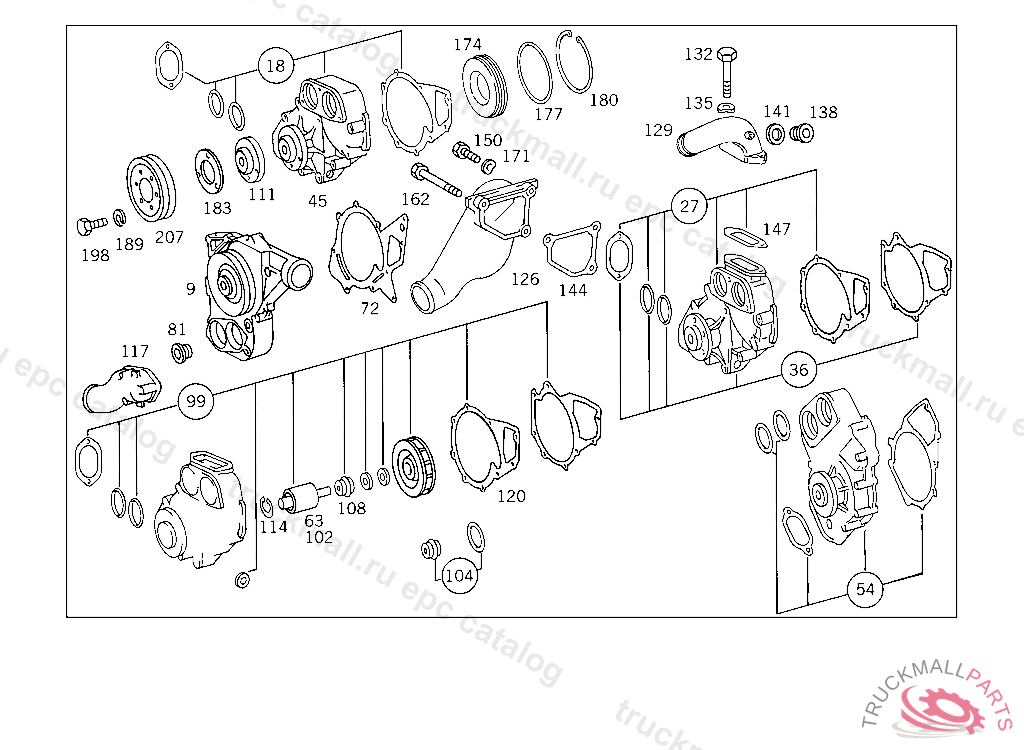

Поз.
Артикул
Описание
9
WATER PUMP ,002144
18
WATER PUMP WITH GASKETS, 401-403,421-423,441-443744216 424,444015253 427,447052134 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
18
WATER PUMP WITH GASKETS, 401-403,421-423,441-443744215 424,444015252 427,447052133 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
18
WATER PUMP WITH GASKETS,744216
18
WATER PUMP WITH GASKETS,129660 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
18
WATER PUMP , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
18
TS WATER PUMP WITH METAL SEAL
18
WATER PUMP CHARGE AIR INTERCOOLING
18
WATER PUMP , Replaced By: A4032004901, +001A4032020610
18
WATER PUMP , Replaced By: A4032004901, +001A4032020610
18
WATER PUMP , Replaced By: A4032007001
18
WATER PUMP WITH GASKETS
18
WATER PUMP , Replaced By: A4032007701
18
WATER PUMP , Replaced By: A4222001001
18
WATER PUMP , Replaced By: A4222001401
18
WATER PUMP WITH PAPER SEAL, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART, Replaced By: A4422000901
18
TS WATER PUMP WITH PAPER SEAL, Replaced By: A4422001101
27
WATER PUMP , Replaced By: A4032007501
27
WATER PUMP , Replaced By: A4222001201
27
WATER PUMP WITH GASKETS, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
27
WATER PUMP WITH GASKETS, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
36
TS WATER PUMP WITH METAL SEAL
36
WATER PUMP , 401-403 129660 404 003750 407 017497
36
WATER PUMP , Replaced By: A4032005201
36
WATER PUMP , Replaced By: A4572000201
36
WATER PUMP , Replaced By: A4032007201
36
WATER PUMP
36
WATER PUMP WITH GASKETS
36
WATER PUMP WITH PAPER SEAL, Replaced By: A4222001101
36
WATER PUMP WITH PAPER SEAL, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART, Replaced By: A4222001601
36
TS WATER PUMP WITH PAPER SEAL, Replaced By: A4222001801
36
TS WATER PUMP WITH PAPER SEAL, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART, Replaced By: A4572002701
36
TS WATER PUMP WITH METAL SEAL, 401-403 129661 404 003751 407 017498 421-424 000001 427 000001 440-447 000001 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
45
WATER PUMP ,105836
45
WATER PUMP ,105835
54
WATER PUMP WITH GASKETS, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
54
WATER PUMP , Replaced By: A4032005801
54
WATER PUMP , Replaced By: A4032007401
54
WATER PUMP , Replaced By: A4222000201
54
WATER PUMP WITH GASKETS
63
SHAFT
72
GASKET , Replaced By: A4032011280
72
GASKET
81
SCREW PLUG , Replaced By: N000908022011
81
SCREW PLUG FRONT AXLE RELAY VALVE "20"
81
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
99
REPAIR KIT PARTS KIT
99
IMPELLER PARTS KIT
99
IMPELLER PARTS KIT
99
IMPELLER PARTS KIT
99
IMPELLER , Replaced By: A4222000204
99
IMPELLER , Replaced By: A4222000304
99
IMPELLER , Replaced By: A4222000404
99
IMPELLER , Replaced By: A4222000604
99
IMPELLER , EXHAUST STOCK OF OLD PARTS UP TO ENGINE 401-403, 421-423, 440-443, 445, 446886336 407, 427, 447061815 404, 424, 444018597, Replaced By: A4222000504
102
SHAFT
102
WATER PUMP BEARING
104
GASKET KIT WATER PUMP
108
SEAL WITH THRUST RING AND BOOT
108
SEAL , Replaced By: A0012011719
108
SEAL , Replaced By: A0012011819
108
SEAL , Replaced By: A0012011919
108
SEAL , Replaced By: A0012011919
108
SEAL , Replaced By: A0012012619
111
HUB WATER PUMP
114
LOCK RING TORSION BAR TO LINK,5 903513
117
OUTLET ,002144
120
GASKETTO 403 200 37 01
120
GASKET , Replaced By: A4032011380
126
OUTLET , Replaced By: A4232010431
126
OUTLET , 401-403,421-423,441-443547323 404,424,444011529 FROM ENGINE SEE SPECIAL VERSION 018473 OR 018650
126
OUTLET , 401-403,421-423,441-443547323 404,424,444011529 FROM ENGINE SEE SPECIAL VERSION 018473 OR 018650
129
INTAKE PIPE SOCKET WATER PUMP
132
SCREW SUPPORT TO FENDER
132
SCREW , Replaced By: N304017008018
135
SPRING WASHER , Replaced By: N000137008212
135
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
138
SCREW PLUGTO 000 553 03 05,000 553 18 05,
138
SCREW PLUG , Replaced By: N000908014009
141
SEAL RING INJECTION PUMP
144
GASKET , Replaced By: A4422010280
144
GASKET WATER PUMP
144
GASKET WATER PUMP
147
GASKET FLANGE TO PUMP
147
GASKET
150
HEXALOBULAR BOLT BRACKET TO SUPPORT M8X80
150
SCREW SUPPORT TO FENDER
150
SCREW , Replaced By: N000912008204
150
SCREW , Replaced By: N304017008018
150
SCREW , Replaced By: N000933008134
150
SCREW FRONT AXLE REGULATING SOLENOID VALVE
150
HEXAGON HEAD BOLT. SCREW , Replaced By: N910143008016
150
SCREW DISTRIBUTOR TO FRAME SIDE MEMBER
150
SCREW. CAP BOLT SEAT MOUNTING M8X35
162
SCREW OIL PAN TO CYLINDER CRANKCASE
162
SCREW FAN TO CRANKSHAFT PULLEY
171
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
171
SPRING WASHER , Replaced By: N000137008212
174
COVER WATER PUMP COVER TO WATER PUMP HOUSING
177
ROUND SECTION SEAL RING , Replaced By: N700429115001
177
ROUND SECTION SEAL RING COVER TO WATER PUMP, TO BE ORDERED ONLY FROM MTU-FRIEDRICHSHAFEN
180
LOCK RING DISC SUPPORT
183
WASHER ,002145
189
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
198
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
198
SCREW , Replaced By: N304017008016
207
PULLEY BELT TIGHTENER PULLEY
999
SEAL RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0209971148
999
THERMOSTAT ELEMENT 83 DEGREES
999
WATER PUMP , Replaced By: A4032003601, +001A4032020610
999
WATER PUMP , Replaced By: A4032003901, +001A4032020610
999
WATER PUMP
999
WATER PUMP , Replaced By: A4032003901, +001A4032011280, +002A0209971148
999
WATER PUMP WITH GASKETS
999
WATER PUMP
999
PULLEY
999
CONNECTOR , Replaced By: A6012030008
999
WATER PUMP , Replaced By: A4222001001
999
HOUSING THERMOSTAT
999
WATER PUMP WITH GASKETS
999
SCREW INJECTION PUMP DRIVE TO TIMING CASE M 8X140
999
SCREW , Replaced By: N304017008043
