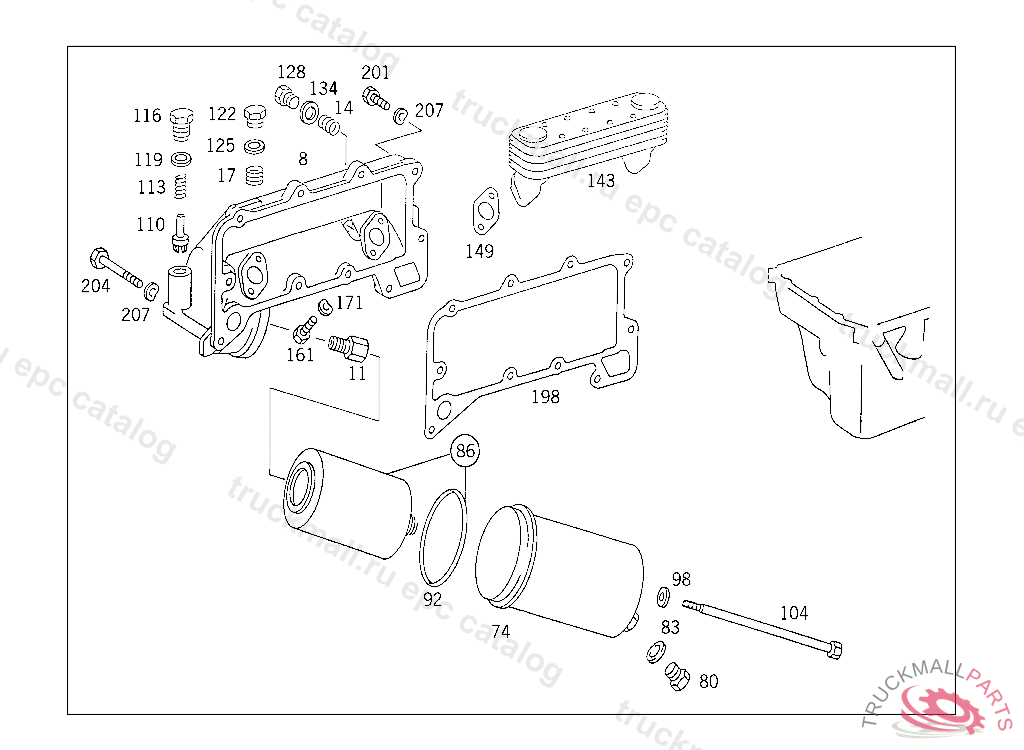

Поз.
Артикул
Описание
8
COVER OIL FILTER, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
11
THREADED UNION OIL FILTER
14
THREADED INSERT DE-AERATION LINE TO COOLING WATER LINE
17
THREADED INSERT REPAIR SIZE, TO BE ADAPTED DURING ASSEMBLY
74
FILTER BOWL OIL FILTER BOWL
80
SCREW PLUG SHIFTING SHAFT DETENT
83
SEAL RING VALVE TO VALVE,K 025179
86
FILTER ELEMENT RANGE OF DELIVERY
92
SEAL RING FILTER BOWL TO FILTER HEAD
98
SEAL RING FUEL LINE TO FEED PUMP
104
SCREW
110
VALVE
113
SPRING BY-PASS VALVE
116
SCREW PLUG
119
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
122
SCREW PLUG
125
SEAL RING OIL DRAIN 26X34 MM
128
SCREW PLUG FUEL TANK
128
SCREW PLUG, FILLING OIL DRAIN
128
SCREW PLUG , Replaced By: A1119970330
134
SEALING RING. SEAL RING ENGINE BREATHING
143
OIL COOLER , ORDER NUMBER: 001 188 88 01/33
143
OIL COOLER , ORDER NUMBER: 001 188 89 01/33
149
SEAL. GASKET , Replaced By: A3661880880
161
HEXALOBULAR BOLT. SCREW SUPPORT TO CYLINDER HEAD
161
SCREW PIPE CLAMP
171
WASHER BRACKET TO CROSS MEMBER
198
GASKET OIL FILTER HEAD & OIL COOLER COVER WITH OIL COOLER TO CRANKCASE
201
SCREW CONNECTOR TO REAR SHIFTING ROD
201
SCREW , Replaced By: N304017010047
204
SCREW , Replaced By: A0009904904
204
SCREW FLANGE TO PIPE SOCKET
204
HEXAGON HEAD BOLT P.T.O. TO TRANSMISSION M10X150
204
HEXAGON HEAD BOLT. SCREW TRAILER COUPLING TO BRACKET M10 X 120
207
SPRING WASHER STEERING COLUMN BRACKET TO CAB
999
SCREW PLUG , Replaced By: A4429970030
999
FLANGE HEATING CONNECTION LOCK,5 301949
999
GASKET , Replaced By: A4421880280
999
GASKET , Replaced By: A4421880380
999
HOUSING OIL FILTER,OIL COOLER
999
GASKET , Replaced By: A4421880480
999
GASKET , Replaced By: A4421880580
