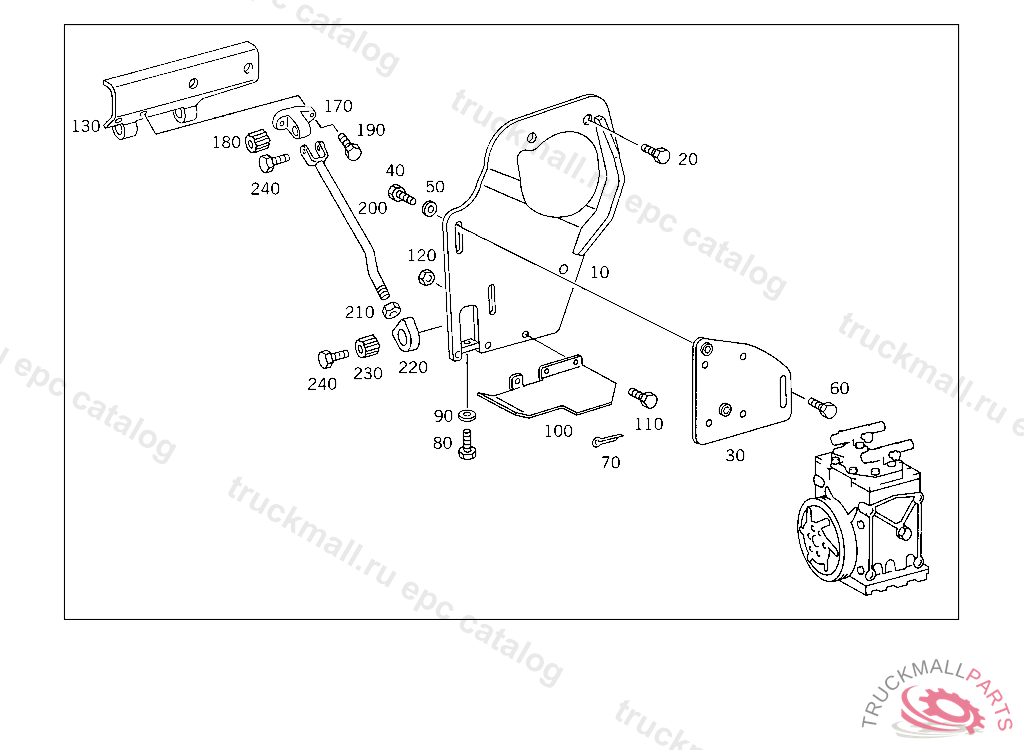

Поз.
Артикул
Описание
10
BRACKET
10
SUPPORT BRACKET TO COMPRESSOR BRACKET, TO BE ADAPTED DURING ASSEMBLY
10
BRACKET , NOT USED
20
SCREW BRACKET IN CYLINDER CRANKCASE
30
SUPPORT YORK COMPRESSOR
40
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
40
SCREW , Replaced By: N910105010009
40
SCREW , Replaced By: A0019908204
50
WASHER , Replaced By: N007349010007
50
WASHER STRUT TO CROSS MEMBER
60
SCREW UNDERRUN PROTECTION AND BRACKET TO FRAME
60
SCREW , Replaced By: N304017010050
60
SCREW , Replaced By: N304017010055
70
COTTER PIN LEVER TO ROD, Replaced By: N000094002060
70
COTTER PIN LEVER TO ROD
80
SCREW BRACKET TO TRANSMISSION
80
HEXAGON HEAD BOLT. SCREWM 12X1,5X20 MM - TO A 202 490 08 41
90
WASHER BRACKET TO SIDE MEMBER
100
PROTECTIVE PLATE
110
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
110
SCREW , Replaced By: N304017008016
120
NUT , Replaced By: N304032008006
120
NUT
130
SUPPORT ALTERNATOR
170
BEARING BRACKET
180
BUSHING
190
SCREW BRACKET TO SIDE MEMBER
190
SCREW BRACKET TO CONSOLE
200
STIFFENING
210
NUT RELEASE BEARING LUBRICATION
220
BEARING BODY BRACING TO SUPPORT
230
BUSHING
240
SCREW , Replaced By: N910105010017
240
SCREW BRACKET TO FRAME SIDE MEMBER
240
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
999
SCREW SUPPORT TO CYLINDER CRANKCASE
999
SUPPORT ALTERNATOR
999
BEARING BODY , Replaced By: A4222300008
999
BEARING BRACKET , Replaced By: A4222300139
999
RUBBER MOUNTING , Replaced By: A4031550250
999
BEARING BRACKET
999
SCREW , Replaced By: N007984012011
999
SCREW , UP TO CHASSIS: 020 044381, EXCEPT FOR 030624-036882 024,025 044271, EXCEPT FOR 034172-039073 028,029 024154 032,033 039349, EXCEPT FOR 030603-034116
999
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
