Mercedes
ENGINE
OM 424
424.900

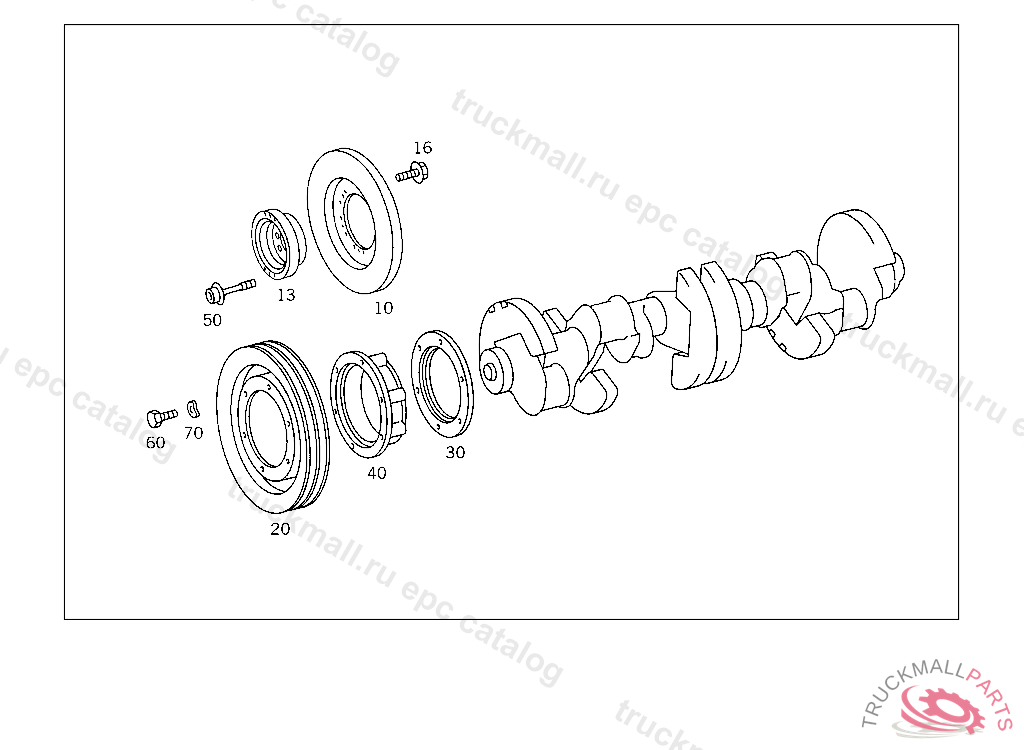

03 MOVING PARTS
001 VIBRATION ABSORBER

Mercedes A4430350100 - ДЕМПФЕР

OM 424 424.900

03 MOVING PARTS - 001 VIBRATION ABSORBER

Поз.
Артикул
Описание
10
A4440300003
VIBRATION ABSORBER
10
A4470350300
VIBRATION ABSORBER ,154772
10
A4440350000
VIBRATION ABSORBER , Replaced By: A4440350100
10
A4440350100
VIBRATION ABSORBER , Replaced By: A4440300003
10
A4470350000
VIBRATION ABSORBER , Replaced By: A4470350100
10
A4470350100
VIBRATION ABSORBER , Replaced By: A4470350200
10
A4470350200
VIBRATION ABSORBER , Replaced By: A4470350300
10
A4230350100
VIBRATION ABSORBER
13
A4430350213
HUB , 421-423 746991 441-443 746991 424-444 015311
13
A4230350013
HUB
16
A4239900012
SCREW
20
A4430350112
PULLEY CRANKSHAFT
20
A4430350212
PULLEY TWO-GROOVE
20
A4030353312
PULLEY , Replaced By: A4430350112
30
A4430350051
SPACER RING
40
A4430350014
INTERMEDIATE PIECE61 MM
50
A4439905012
SCREW PULLEY TO VIBRATIN DAMPER
60
N304017008016
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
60
N000933008212
SCREW , Replaced By: N304017008016
70
N000137008204
SPRING WASHER , Replaced By: N000137008212
70
N000137008212
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
999
A4220300403
VIBRATION ABSORBER , Replaced By: A4230350100, +001A4430350213, +012A4239900012
999
A4230300003
VIBRATION ABSORBER , Replaced By: A4230350100, +001A4230350013, +012A4239900012
999
A4230350000
VIBRATION ABSORBER , Replaced By: A4230350100, +001A4230350013, +012A4239900012
999
A4240350000
VIBRATION ABSORBER , Replaced By: A4230350100, +001A4430350213, +012A4239900012
999
A4270350300
VIBRATION ABSORBER , Replaced By: A4470350000, +001A4230350013, +012A4239900012
999
A4420300903
VIBRATION ABSORBER , Replaced By: A4420301603
999
A4430350100
VIBRATION ABSORBER
999
A4430350113
HUB
999
A4431320115
PULLEY CRANKSHAFT
999
A4439900112
SCREW PULLEY TO VIBRATION ABSORBER AND TO HUB,RESP.
