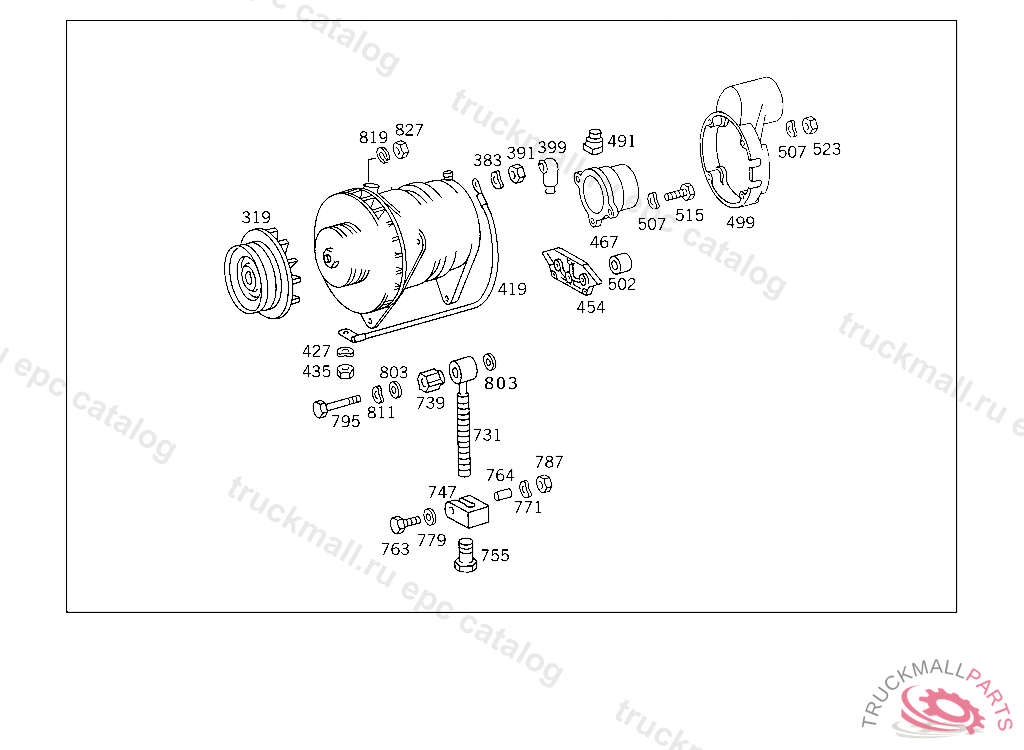

Поз.
Артикул
Описание
319
FAN WITH PULLEY
319
FAN ALTERNATOR
319
FANTO 344 154 71 02
319
FAN
319
FAN FAN TWO-GROOVE V-BELT PULLEY TO 006 154 24 02
319
FAN ALTERNATOR
383
SPRING WASHER , Replaced By: N000137008212
383
SPRING WASHER ALTERNATOR CONNECTION W
383
SPRING WASHER HEATER PLUG CABLE HARNESS
383
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
391
NUT , Replaced By: N304032008006
391
NUT
391
NUT BALL PIVOT TO LEVER
391
NUT , Replaced By: N304032005005
391
NUT IN CASE OF SUBSEQUENT INSTALLATION
399
BOOT POS. CABLE
399
BOOTTO 003 154 39 02
399
BOOT HEATER PLUGS
419
GROUND CABLE FROM ALTERNATOR TO GROUND
419
ELECTRIC CABLETO 004 154 79 02
419
ELECTRIC CABLE (GROUND CABLE)
419
ELECTRIC CABLETO 004 154 79 02,004 154 82 02
419
GROUND CABLE GENERATOR TO GENERATOR SUPPORT,529890
419
ELECTRIC CABLE , Replaced By: N922002025000, +001N046234008005, +001N046234012004
419
GROUND CABLE , Replaced By: A4031500732
419
GROUND CABLE , Replaced By: A4231500132
419
GROUND CABLE GENERATOR TO ENGINE SUPPORT
427
WASHER , Replaced By: N000433005304
427
WASHER BOOT TO CAB FLOOR
427
SPRING WASHER HEATER PLUG CABLE HARNESS
435
NUT RELAY TO BRACKET M5
435
NUT , Replaced By: N304032005005
435
NUT IN CASE OF SUBSEQUENT INSTALLATION
454
CONNECTOR
467
PIPE SOCKETTO 004 154 13 02,049382
467
PIPE SOCKET (INTAKE PIPE-SOCKET)
491
GASKET
499
PIPE SOCKET ALTERNATOR,061992
502
BUSHINGTO 004 154 79 02,004 154 82 02
507
SPRING WASHER LICENSE PLATE TO BRACKET
515
SCREW LINE MOUNTING M 6X20
515
SCREW SHIFT CASE TO SLOTTED GATE
523
NUT BALL PIVOT TO LEVER
731
CLAMPING BOLT (CLAMPING BOLT)
731
CLAMPING BOLT , Replaced By: A4031500572
731
CLAMPING BOLT , Replaced By: A4211500072
731
CLAMPING BOLT (CLAMPING BOLT)
731
CLAMPING BOLT , Replaced By: A3551500372
731
CLAMPING BOLT (CLAMPING BOLT)
731
CLAMPING BOLT , Replaced By: A3551500372
731
CLAMPING BOLT , Replaced By: A3141501372, +001A6361550051, +001A4031840840, +001N000931010067, +001N000960012308
731
CLAMPING BOLT , 401-403265613 404006658 421-423173448 424002996, Replaced By: A3141501372, +001A6361550051, +001A4031840840, +001N000931010067, +001N000960012308
731
CLAMPING BOLT , Replaced By: A4031502272
731
CLAMPING BOLT (CLAMPING BOLT)
731
CLAMPING BOLT
731
SCREW CLAMPING BOLT
731
CLAMPING BOLT (CLAMPING BOLT)
731
CLAMPING BOLT (CLAMPING BOLT)
731
CLAMPING BOLT
731
CLAMPING BOLT FOR V-BELT TENSIONING
731
CLAMPING BOLT COMPLETE
731
CLAMPING BOLT (CLAMPING BOLT)
731
CLAMPING BOLT (CLAMPING BOLT),402.900 008732
731
CLAMPING BOLT (CLAMPING BOLT)
731
CLAMPING BOLT (CLAMPING BOLT)
739
BUSHING
739
BUSHING
739
BUSHING
747
CLAMPING PIECE TIGHTENER PULLEY TO LEVER
747
CLAMPING PIECE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A3141550228
747
CLAMPING PIECE TIGHTENER PULLEY
755
NUT CLAMPING BOLT TO ALTERNATOR TO 352 155 01 72
755
NUT ALTERNATOR
763
SCREW LEFT AND RIGHT BEARING BRACKETS TO CAB
763
SCREW BRACKET TO FRAME
763
SCREW CONSOLE TO SIDE MEMBER
763
SCREW COOLING WATER HOSE TO ENGINE M 10X45
763
SCREW TORSION BAR TO SHACKLE,5 903514
763
SCREW BRACKET TO FRAME M 12X70
763
SCREW BRACKET TO SIDE MEMBER M 12X40
763
SCREW BEARING BRACKET TO CONSOLE
763
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
763
SCREW AIR RESERVOIR CONSOLE TO SIDE MEMBER
763
SCREW , Replaced By: N308676012031
763
SCREW ,5 903514, Replaced By: N000960012353
763
SCREW , Replaced By: N308676012015
763
SCREW , Replaced By: N308676012015
763
SCREW CLAMP TO DRAG LINK M12X1.5X60,TO 682 460 31 05
763
SCREW , Replaced By: N308676012011
763
SCREW LEFT AND RIGHT CONSOLES TO CAB
763
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
764
SPACER RING BRACKET TO ANGLE
771
SPRING WASHER CAB FLOOR
771
SPRING WASHER STEERING COLUMN BRACKET TO CAB
771
WASHER PULL ROD TO BRAKE INTERMEDIATE LEVER
771
WASHER , Replaced By: N000433013010
779
WASHER , Replaced By: A1403521376
779
WASHER , Replaced By: A3149900940
779
WASHER , Replaced By: N000433013010
779
WASHER DUMPING PLATFORM MOUNTING
779
WASHER PULL ROD TO BRAKE INTERMEDIATE LEVER
779
WASHER
787
NUT BRACKET TO SIDE MEMBER
787
NUT , Replaced By: N304035012002
787
NUT SUPPORT TO SIDE MEMBER
787
NUT R.H. THREAD
787
NUT. HEXAGON NUT SHOCK ABSORBER MOUNTING
787
NUT STRAP TO SUPPORT,5 149419
787
NUT CLAMPING BOLT TO ALTERNATOR TO 352 155 01 72
795
HEXAGON HEAD BOLT VIBRATION ABSORBER TO BRACKET
795
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
795
SCREW BEARING BRACKET TO STEERING COLUMN BRACKET
795
SCREW CLUTCH OPERATION,4 282707
795
SCREW CROSS MEMBER TO FRAME
795
SCREW SUPPORT TO SIDE MEMBER M 10X65,B 884219
795
SCREW , Replaced By: N304017010050
795
SCREW , Replaced By: N304017012002
795
SCREW , Replaced By: N308676012031
795
SCREW , Replaced By: N304017010051
795
SCREW , Replaced By: N304017010053
795
SCREW , Replaced By: N308676012011
795
HEXAGON HEAD BOLT. SCREW BRACKET TO TRANSMISSION M 10X50
795
SCREW BRACKET TO SIDE MEMBER M10X35
795
HEXAGON HEAD BOLT. SCREW BRACKET TO AIR INTAKE PIPE M 10X45
795
SCREW RELEASE LEVER TO SHAFT, 024,026,027,028,121,122 5 095724 065,131,132 5 104252
795
SCREW COOLING WATER HOSE TO ENGINE M 10X45
795
SCREW STRAP TO BRACKET
795
HEXAGON HEAD BOLT. SCREW VIBRATION ABSORBER TO BRACKET M 10X65
795
SCREW LEFT AND RIGHT BEARING BRACKETS TO CAB
795
HEXAGON HEAD BOLT BRACKET TO BRACKET M10X35
795
SCREW , Replaced By: N910105010017
795
SCREW MANUAL PUMP TO BRACKET AND TO PLATE M 10X40
795
SCREW PIPE ELBOW TO BRACKET M 10X50
795
SCREW , Replaced By: N304017010055
795
SCREW STEERING SUPPORT TO FRAME M 10X75
795
SCREW BRACKET TO FRAME SIDE MEMBER
795
SCREW REAR EXHAUST PIPE TO MUFFLER
795
SCREW
795
SCREW BRAKE BOOSTER ASSEMBLY TO APPARATUS SUPPORT M 10X40,4 338291
795
SCREW BRACKET TO SIDE MEMBER M10X38
795
SCREW PLATE TO FRAME M 10X45
803
WASHER BEARING BRACKET TO STEERING COLUMN BRACKET
803
WASHER SUPPORT TO ALTERNATOR TO 352 150 09 73
803
WASHER CLAMPING BOLT TO OIL PAN
803
WASHER RADIATOR TO RUBBER MOUNTING
803
FITTED WASHER AS REQUIRED 1.0 MM
811
SPRING WASHER , Replaced By: N000137010205
811
SPRING WASHER STEERING COLUMN BRACKET TO CAB
811
SPRING WASHER SHIFTING ROD TO BRACKET
819
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
827
NUT , Replaced By: N304035012002
827
NUT BRACKET TO SIDE MEMBER
827
NUT
827
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
827
NUT R.H. THREAD
827
NUT. HEXAGON NUT SHOCK ABSORBER MOUNTING
827
NUT , Replaced By: N304032010002
827
NUT , Replaced By: N913023010002
999
WASHER
999
GASKET , Replaced By: A4071540280
999
PIPE SOCKET , Replaced By: A4031540365
999
PIPE SOCKET , Replaced By: A4071540165
999
DIODE , Replaced By: A0005487918
999
DIODE , Replaced By: A0005489818
999
DIODE , Replaced By: A0015481118
999
SCREW , Replaced By: A0009908221
999
SCREW , Replaced By: A0009908321
999
SCREW , Replaced By: A0009907921
999
DIODE , Replaced By: A0015481518
999
SCREW , Replaced By: A0009907121
999
SCREW , Replaced By: A0019902120
999
SCREW , Replaced By: A0009907621
999
REGULATOR AND CUT-OUT , Replaced By: A0021545506
999
REGULATOR AND CUT-OUT , Replaced By: A0021546806
999
BALL BEARING
999
BALL BEARING , Replaced By: A0059812225
999
ALTERNATOR , NOT USED
999
ALTERNATOR , Replaced By: A0081547802
999
BRACKET COOLING WATER LINE TO ENGINE
999
CLAMPING BOLT , Replaced By: A4031500572
999
WASHER , Replaced By: A3149900940
999
SUPPORT
