Поз.
Артикул
Описание

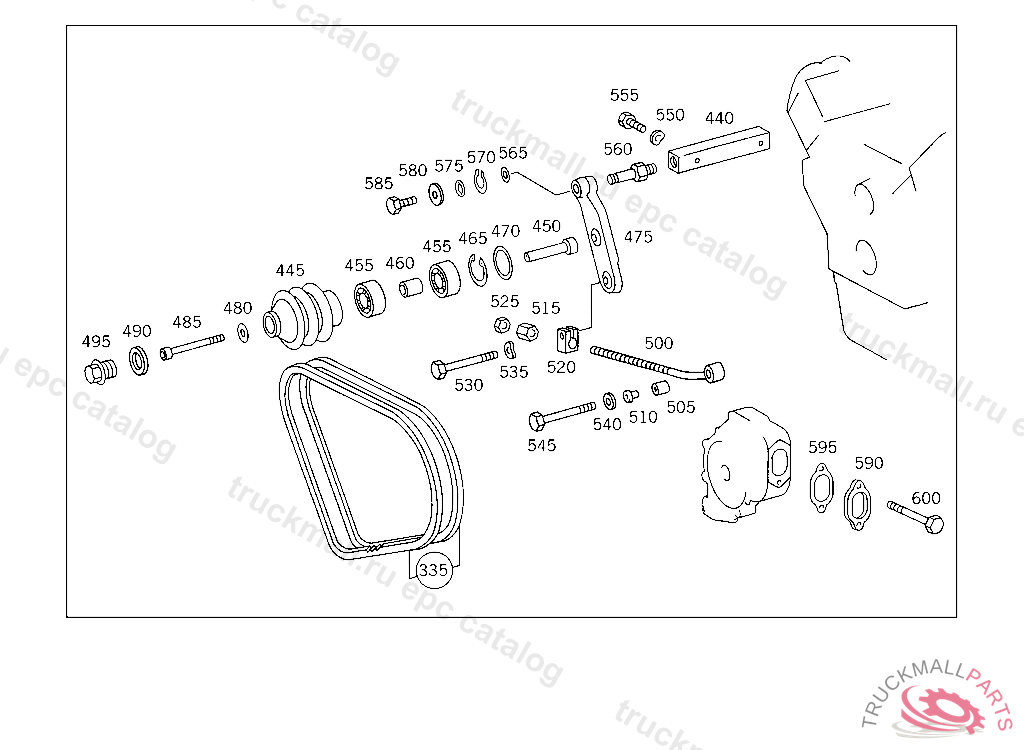

335
V-BELT SET2 PIECES 12.5X1400, UP TO CHASSIS D 164887 EXCEPT FOR:D 162653,D 162907,D 163135,D 163292,D 164695.
335
V-BELT , Replaced By: A0039975692
335
V-BELT
440
BRACKET , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A4042020140
440
BRACKET
445
TIGHTENER PULLEY
450
BUSHING
455
BALL BEARING
460
SPACER RING
465
LOCK RING52X2 MM
470
SEAL RING CASE COVER
475
LEVER BELT TIGHTENER
475
LEVER , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 016187, Replaced By: A4442000073
475
LEVER , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A4042000173
480
WASHER , Replaced By: N007349013005
480
WASHER TIGHTENER PULLEY
485
SCREW TIGHTENER PULLEY
485
CAP BOLTM12X1.5X90
490
SEAL RING SPEEDOMETER DRIVE
495
SCREW PLUG OIL FILLING
495
SCREW PLUG , 032,033,040,041: FROM CHASSIS 1600092 132,133,140,141: FROM CHASSIS 1600092 FOR L.H.D. UP TO CHASSIS 422483 FROM CHASSIS SEE SPARE PARTS LIST 814
500
ROD (CLAMPING BOLT)
500
CLAMPING BOLT (CLAMPING BOLT)
505
BUSHING
505
BUSHING , Replaced By: A3359920103
510
BUSHING
510
BUSHING
515
NUT TIGHTENER PULLEY TO LEVER
515
NUT ALTERNATOR
520
CLAMPING PIECE TIGHTENER PULLEY TO LEVER
520
CLAMPING PIECE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A3141550228
520
CLAMPING PIECE TIGHTENER PULLEY
525
NUT ANGLE TO FRAME
525
NUT , 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
525
NUT
530
HEXAGON HEAD BOLT BEARING BRACKET TO SIDE MEMBER M 12X50
535
SPRING WASHER CAB FLOOR
540
WASHER RADIATOR TO RUBBER MOUNTING
540
WASHER CLAMPING BOLT TO OIL PAN
545
SCREW PLATE TO FRAME M 10X45
545
HEXAGON HEAD BOLT. SCREW BRACKET TO TRANSMISSION M 10X50
545
HEXAGON HEAD BOLT. SCREW BRACKET TO AIR INTAKE PIPE M 10X45
550
SPRING WASHER COMPRESSOR TO MOUNTING PLATE
555
SCREW BRACKET TO CYLINDER CRANKCASE M14 X 55 -8.8,TO 404 202 01 40
555
SCREW BRACKET TO LEFT SIDE MEMBER
560
SPINDLE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A4042060008, +001A4042020140, +001A4042060176, +002A0119975548, +001N000912012153, +002N000933014003
560
SPINDLE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A4042060108
560
SPINDLE LEVER TO SUPPORT
565
FITTED WASHER
570
LOCK RING
575
SEAL RING TIGHTENER ARM WITH TIGHTENER PULLEY TO BRACKET
580
WASHER BELT TIGHTENER
580
WASHER , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A4042060176
585
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
585
SCREW BEARING BRACKET TO CONSOLE
590
FLANGE AT WATER PUMP, TO BE ORDERED ONLY FROM MTU-FRIEDRICHSHAFEN
595
GASKET CONNECTOR
595
GASKET CONNECTOR, Replaced By: A0002011180
595
GASKET CONNECTOR, Replaced By: A0002011280
595
GASKET CONNECTOR, Replaced By: A0002011080
600
HEXAGON HEAD BOLT BRACKET TO DISTRIBUTOR
600
SCREW FLANGE TO PIPE SOCKET
999
SPRING
999
PIN
999
SPACER TUBE MOUNTING PLATE TO CYLINDER CRANKCASE
999
WASHER LEFT AND RIGHT CONSOLES TO CAB
999
BELT TIGHTENER
999
WASHER
999
SPACER RING
999
PIN , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A3462020174
999
PIN
999
BUSHING
