Mercedes
ENGINE
OM 427
427.900

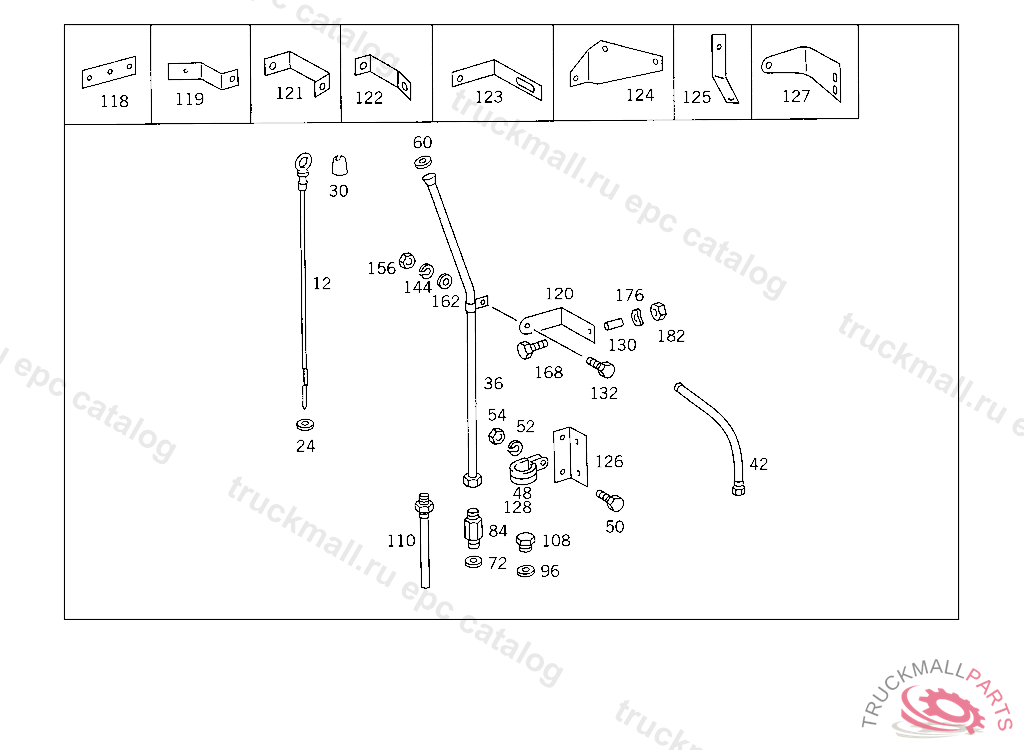

01 ENGINE HOUSING
001 OIL DIPSTICK

Mercedes N304014008004 -

OM 427 427.900

01 ENGINE HOUSING - 001 OIL DIPSTICK

Поз.
Артикул
Описание
12
A4210100472
OIL DIPSTICK
12
A4010102972
OIL DIPSTICK
12
A4420100372
OIL DIPSTICK
12
A4030104072
OIL DIPSTICK ,071465
12
A4430100872
OIL DIPSTICK
12
A4220101672
OIL DIPSTICK
12
A4020103272
OIL DIPSTICK
12
A4440100072
OIL DIPSTICK
12
A4270100672
OIL DIPSTICK
12
A4430100272
OIL DIPSTICK LESS MARKS
12
A4040102172
OIL DIPSTICK LESS MARKS
12
A4220101072
OIL DIPSTICK
12
A4220101872
OIL DIPSTICK
12
A4410100472
OIL DIPSTICK
12
A4020103872
OIL DIPSTICK
12
A4420102672
OIL DIPSTICK
12
A4420104672
OIL DIPSTICK
12
A3600102072
OIL DIPSTICK
12
A4230100872
OIL DIPSTICK
12
A4220101272
OIL DIPSTICK
12
A4420102872
OIL DIPSTICK ,581247
12
A3520100074
OIL DIPSTICK , TO BE ADAPTED DURING ASSEMBLY
12
A4220101472
OIL DIPSTICK
12
A4420100272
OIL DIPSTICK
12
A4020101372
OIL DIPSTICK
12
A4470100472
OIL DIPSTICK
12
A4420101072
OIL DIPSTICK
12
A4440100772
OIL DIPSTICK
12
A4440102272
OIL DIPSTICK
12
A4230101072
OIL DIPSTICK LESS MARKS
12
A4470100572
OIL DIPSTICK
12
A4020104172
OIL DIPSTICK LESS MARKS
12
A4040101172
OIL DIPSTICK
12
A4040102872
OIL DIPSTICK
12
A4240100972
OIL DIPSTICK LESS MARKS
12
A3450101372
OIL DIPSTICK
12
A4420104572
OIL DIPSTICK
12
A4440100172
OIL DIPSTICK
12
A4010102672
OIL DIPSTICK
12
A3410100272
OIL DIPSTICK
12
A4030105572
OIL DIPSTICK LESS MARKS
12
A4040102672
OIL DIPSTICK
12
A4020103372
OIL DIPSTICK
12
A4030103372
OIL DIPSTICK
12
A3440108172
OIL DIPSTICK , FROM ENGINE 754 484,ALSO INSTALLED ON 754 422,754 437-462
12
A4030105972
OIL DIPSTICK
12
A4240100272
OIL DIPSTICK
12
A4240102072
OIL DIPSTICK
12
A4230100272
OIL DIPSTICK ,423.901-500-041997
12
A4230101272
OIL DIPSTICK
12
A4420101272
OIL DIPSTICK
12
A4220100272
OIL DIPSTICK , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 610235 ORDER ADDITIONALLY: FITTING 421 997 00 72, Replaced By: A4410101072
12
A4420100072
OIL DIPSTICK
12
A4070102172
OIL DIPSTICK
12
A4420102972
OIL DIPSTICK ,581247
12
A4240101072
OIL DIPSTICK
12
A4420100672
OIL DIPSTICK
12
A4010102472
OIL DIPSTICK
12
A4440100572
OIL DIPSTICK LESS MARKS
12
A4020101472
OIL DIPSTICK
12
A4020102472
OIL DIPSTICK
12
A4420102472
OIL DIPSTICK
12
A4240100772
OIL DIPSTICK LESS MARKS
12
A4210100272
OIL DIPSTICK
12
A4240101572
OIL DIPSTICK
12
A4230101672
OIL DIPSTICK
12
A4410101072
OIL DIPSTICK
12
A4010101672
OIL DIPSTICK LESS MARKS
12
A4030104372
OIL DIPSTICK
12
A4220102472
OIL DIPSTICK
12
A3520105072
OIL DIPSTICK , NOTE FOLLOWING WIS DOCUMENT WIS-NET#AH18.40-N-0001-01A#, Replaced By: A3520100074
12
A4220100872
OIL DIPSTICK , NOTE FOLLOWING WIS DOCUMENT WIS-NET#AH18.40-N-0001-01A#, Replaced By: A3520100074
12
A4220102072
OIL DIPSTICK , NOTE FOLLOWING WIS DOCUMENT WIS-NET#AH18.40-N-0001-01A#, Replaced By: A3520100074
12
A4240101372
OIL DIPSTICK , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A4440102272
12
A4410100672
OIL DIPSTICK , NOTE FOLLOWING WIS DOCUMENT WIS-NET#AH18.40-N-0001-01A#, Replaced By: A3520100074
12
A4410101272
OIL DIPSTICK , NOTE FOLLOWING WIS DOCUMENT WIS-NET#AH18.40-N-0001-01A#, Replaced By: A3520100074
12
A4420100872
OIL DIPSTICK , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A4420104772
12
A4420101672
OIL DIPSTICK , Replaced By: A4420104572
12
A4420101872
OIL DIPSTICK , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A4420104672
12
A4420102272
OIL DIPSTICK , NOTE FOLLOWING WIS DOCUMENT WIS-NET#AH18.40-N-0001-01A#, Replaced By: A3520100074
12
A4420104772
OIL DIPSTICK , NOTE FOLLOWING WIS DOCUMENT WIS-NET#AH18.40-N-0001-01A#, Replaced By: A3520100074
12
A4430100672
OIL DIPSTICK , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A4040102872
12
A4440100972
OIL DIPSTICK , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A4440102972
12
A4440102972
OIL DIPSTICK , NOTE FOLLOWING WIS DOCUMENT WIS-NET#AH18.40-N-0001-01A#, Replaced By: A3520100074
12
A4430101072
OIL DIPSTICK ,601647
24
A0039978245
SEAL RINGTO 000 431 59 14
24
A0149974148
SEAL RING
30
A3660180106
CAP
30
A4030180106
CAP
36
A3960100566
GUIDE TUBE OIL DIPSTICK
36
A4470100166
GUIDE TUBE OIL DIPSTICK
36
A4030105966
GUIDE TUBE OIL DIPSTICK
36
A4020100866
GUIDE TUBE OIL DIPSTICK
36
A4420100566
GUIDE TUBE OIL DIPSTICK
36
A4420102466
GUIDE TUBE OIL DIPSTICK
36
A4440100366
GUIDE TUBE OIL DIPSTICK
36
A4420100366
GUIDE TUBE
36
A4220101266
GUIDE TUBE , EXHAUST STOCK OF OLD PARTS UP TO ENGINE 733625, Replaced By: A4420102466
36
A4210100166
GUIDE TUBE OIL DIPSTICK
36
A4210100366
GUIDE TUBE OIL DIPSTICK
36
A4220101066
GUIDE TUBE OIL DIPSTICK UPPER PART
36
A4410100366
GUIDE TUBE OIL DIPSTICK
36
A4220101366
GUIDE TUBE
36
A4210100566
GUIDE TUBE OIL DIPSTICK
36
A4030103166
GUIDE TUBE OIL DIPSTICK
36
A4430100766
GUIDE TUBE OIL DIPSTICK,601647
36
A4420100766
GUIDE TUBE OIL DIPSTICK
36
A4220100666
GUIDE TUBE OIL DIPSTICK
36
A4030105466
GUIDE TUBE OIL DIPSTICK
36
A4030104466
GUIDE TUBE OIL DIPSTICK
36
A4220100966
GUIDE TUBE OIL DIPSTICK
36
A4470100466
GUIDE TUBE OIL DIPSTICK
36
A4220100366
GUIDE TUBE OIL DIPSTICK
36
A4420101466
GUIDE TUBE OIL DIPSTICK,581247
36
A4420100266
GUIDE TUBE OIL DIPSTICK
36
A4220100066
GUIDE TUBE OIL DIPSTICK
36
A4410100266
GUIDE TUBE OIL DIPSTICK
36
A4430100066
GUIDE TUBE OIL DIPSTICK
36
A4420101166
GUIDE TUBE OIL DIPSTICK
36
A4070100866
GUIDE TUBE OIL DIPSTICK
36
A4420100466
GUIDE TUBE OIL DIPSTICK
36
A3520105966
GUIDE TUBE OIL DIPSTICK
36
A4230100066
GUIDE TUBE OIL DIPSTICK
36
A4430100166
GUIDE TUBE OIL DIPSTICK
36
A3140103266
GUIDE TUBE OIL DIPSTICK
36
A4240100166
GUIDE TUBE OIL DIPSTICK
36
A4030105066
GUIDE TUBE OIL DIPSTICK
42
A4440100066
GUIDE TUBE OIL DIPSTICK
42
A4440100166
GUIDE TUBE OIL DIPSTICK
42
A4420101266
GUIDE TUBE OIL DIPSTICK
42
A4040100666
GUIDE TUBE OIL DIPSTICK
48
N916016014201
CLAMP COOLING WATER LINE TO FIRE WALL
48
A1209950044
CLAMP OIL DIPSTICK
50
N910105008005
HEXAGON HEAD BOLT BRACKET TO BRACKET M8X25
50
N000933008153
SCREW , Replaced By: N304017008034
50
N304017008034
SCREW BRACKET TO CROSS CONNECTION STRUT
52
N912004008102
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
54
N304032008005
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
60
A0019972945
SEAL RING
72
N007603018100
SEAL RING SWITCH TO CASE COVER
72
N007603014108
SEAL RING
72
N007603014103
SEAL RING FROM FUEL TANK TO FUEL TANK
72
N007603018102
SEAL RING
84
A4219970072
FITTING GUIDE TUBE TO OIL PAN
84
A4229970372
FITTING OIL DIPSTICK GUIDE TUBE
84
A4419975072
FITTING GUIDE TUBE TO OIL PAN,610235
84
A4239970172
FITTING OIL SCAVENGING
84
A4429975072
FITTING OIL SCAVENGING
84
A4039970972
FITTING GUIDE TUBE TO OIL PAN
84
A4249976272
FITTING HEATING CONNECTION
84
A4039971172
FITTING FROM INTAKE MANIFOLD TO VACUUM LINE, FROM IDENT NO.002799-360785
84
A4229970972
FITTING OIL SCAVENGING
96
N007603014103
SEAL RING FROM FUEL TANK TO FUEL TANK
108
N007604014110
SCREW PLUG FUEL TANK
108
N007604014106
SCREW PLUG , Replaced By: N007604014110
110
A4210100266
GUIDE TUBE BOTTOM
110
A3969970472
FITTING GUIDE TUBE TO OIL PAN
110
A4279970172
FITTING GUIDE TUBE TO OIL PAN
110
A4420101066
GUIDE TUBE OIL DIPSTICK
110
A4410100066
GUIDE TUBE BOTTOM
110
A4421800852
SUCTION PIPE OIL SCAVENGING,733667
118
A3124761535
BRACKET HEATING WATER LINE
118
A4210180540
BRACKET OIL DIPSTICK
118
A4440181340
BRACKET , Replaced By: A3124761535
119
A3874660540
BRACKET HYDRAULIC LINE
120
A6454310740
BRACKET FUEL LINE TO BELL HOUSING
120
A4421870240
BRACKET OIL DIPSTICK
120
A4420982239
BRACKET COMPRESSED AIR LINE MOUNTING SA 48042
120
A6205240340
BRACKET FUEL LINES TO TRANSMISSION
120
A4240180240
BRACKET OIL DIPSTICK
120
A4420981839
BRACKET COMPRESSED AIR LINES
120
A4410181140
BRACKET OIL DIPSTICK
120
A4030184540
BRACKET OIL DIPSTICK
120
A3520187040
BRACKET , Replaced By: A6205240340
120
A4030980139
BRACKET , Replaced By: A6454310740
120
A4220980239
BRACKET , Replaced By: A4420981239
120
A4220980539
BRACKET , Replaced By: A4420981439
120
A4420981239
BRACKET , Replaced By: A4420981839
120
A4420981439
BRACKET , Replaced By: A4420982239
120
A4210180440
BRACKET OIL DIPSTICK
120
A4010181940
BRACKET OIL DIPSTICK
121
A4210180640
BRACKET OIL DIPSTICK
122
A3814291740
BRACKET OIL DIPSTICK
123
A4210180840
BRACKET OIL DIPSTICK
124
A4270180740
BRACKET OIL DIPSTICK
125
A4420180640
BRACKET OIL DIPSTICK
126
A4030184440
BRACKET OIL DIPSTICK
127
A4430180040
BRACKET OIL DIPSTICK
128
N916016010203
CLAMP HEATER-PLUG/SOLENOID-VALVE BRANCH-OFFS TO NOZZLE HOLDER,K 092646
128
A4039950044
CLAMP
130
A4609915140
SPACER TUBE REAR AXLE REGULATING SOLENOID VALVE
130
A3833270253
SPACER TUBE , Replaced By: A4609915140
132
N304017008016
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
132
N000931008323
SCREW INTAKE MANIFOLD TO CYLINDER HEAD M 8X145
132
N910105008008
HEXAGON HEAD BOLT. SCREW CLUTCH TO FLYWHEEL M8X16 MM
132
A4609900601
SCREW EXHAUST PIPE TO BRACKET
132
N910105008011
SCREW STOP TO BATTERY CASE
144
N912004008102
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
144
N000125008443
WASHER EXHAUST MUFFLER TO STRAP
144
N000125008418
WASHER , Replaced By: N000125008443
