Поз.
Артикул
Описание

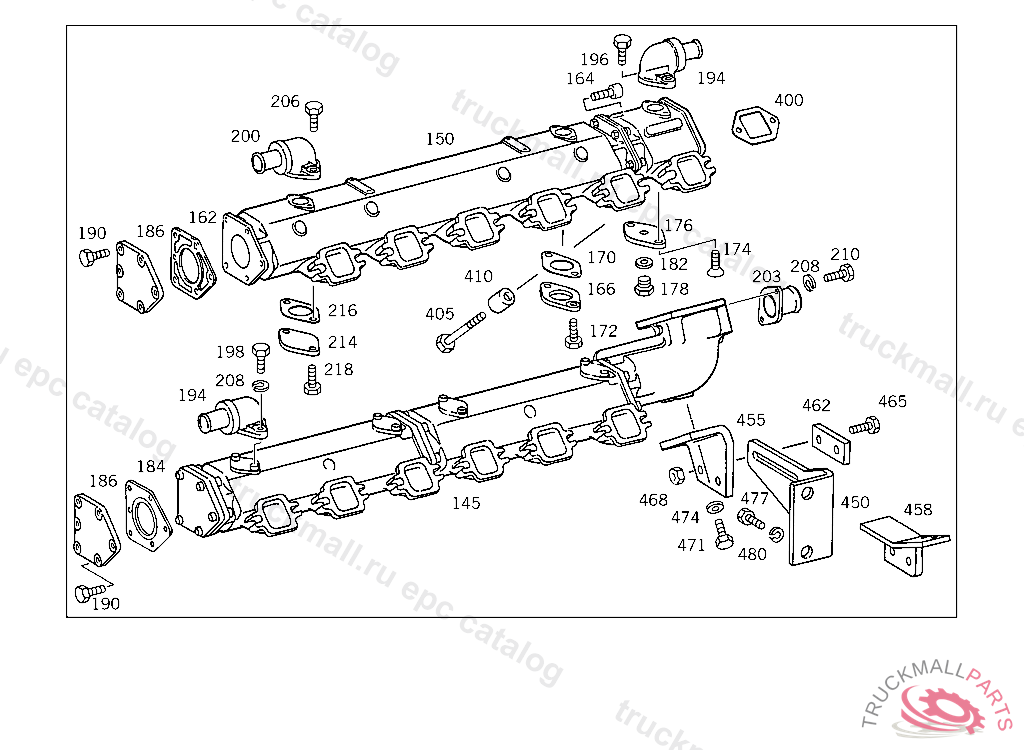

145
EXHAUST MANIFOLD RIGHT
145
EXHAUST MANIFOLD LEFT
150
EXHAUST MANIFOLD
162
GASKET EXHAUST GAS LINE PIPE ELBOW TO EXHAUST MANIFOLD
164
SCREW FRONT SHIFTING ROD TO REAR SHIFTING ROD
166
FLANGE EXHAUST MANIFOLD
170
GASKET SEA-WATER OUTLET
172
SCREW CLAMP TO BRACKET AND TO PIPE
174
SCREW
176
FLANGE
178
SCREW PLUG 3/2-WAY VALVE,CONNECTION:,5 363121
182
SEAL RING LINE CONNECTION
184
GASKET BLIND FLANGE TO EXHAUST MANIFOLD
186
FLANGE BLIND FLANGE TO EXHAUST MANIFOLD
190
SCREW END PIECE TO EXHAUST PIPE M 10X25
194
FLANGE SEA-WATER INLET
196
SCREW PIPE CLAMP
196
SCREW , Replaced By: N304017008021
198
SCREW , Replaced By: N304017008034
198
SCREW BRACKET TO CROSS CONNECTION STRUT
200
FLANGE SEA-WATER OUTLET
200
FLANGE SEA-WATER OUTLET
203
FLANGE SEA-WATER OUTLET
206
SCREW PIPE CLAMP
206
SCREW , Replaced By: N304017008021
208
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
210
SCREW PIPE CLAMP
210
SCREW , Replaced By: N304017008021
214
FLANGE SEA-WATER OUTLET
216
GASKET SEA-WATER OUTLET
218
SCREW CLAMP TO BRACKET AND TO PIPE
400
GASKET EXHAUST MANIFOLD TO CYLINDER HEAD
400
GASKET EXHAUST MANIFOLD
405
SCREW FRONT SUSPENSION EYE TO CYLINDER CRANKCASE
405
SCREW EXHAUST MANIFOLD TO CYLINDER HEAD
405
SCREW EXHAUST MANIFOLD TO CYLINDER HEAD
405
SCREW , Replaced By: A4049905119
405
SCREW EXHAUST MANIFOLD TO CYLINDER HEAD
405
SCREW EXHAUST MANIFOLD TO CYLINDER HEAD
405
SCREW
405
SCREW ,027658
405
SCREW EXHAUST MANIFOLD TO CYLINDER HEAD
405
SCREW SUSPENSION EYE TO CYLINDER HEAD,407.901 027659
405
SCREW , Replaced By: A4479905204
405
SCREW , Replaced By: A4479905704
405
SCREW , Replaced By: A4479905804
405
SCREW , Replaced By: A4479905904
405
SCREW , Replaced By: A4479906004
405
SCREW , Replaced By: A4479906104
405
SCREW , Replaced By: A4579900801
405
SCREW , Replaced By: A4579901301
405
SCREW , Replaced By: A4579901501
405
SCREW , Replaced By: A4579902001
410
CLAMPING PIECE EXHAUST MANIFOLD TO CYLINDER HEAD, CYLINDER: 5,10
410
CLAMPING PIECE
410
CLAMPING PIECE EXHAUST MANIFOLD TO CYLINDER HEAD
450
BRACKET LEFT
450
BRACKET RIGHT
455
STAY EXHAUST MANIFOLD
455
BRACKET EXHAUST MANIFOLD
455
BRACKET EXHAUST MANIFOLD
458
BRACKET EXHAUST MANIFOLD
462
SHIM
465
SCREW BRACKET TO FRAME SIDE MEMBER
468
NUT FROM PROPELLER SHAFT TO FRONT AXLE
471
SCREW BRACKET TO CROSS CONNECTION STRUT
471
SCREW , Replaced By: N304017008034
474
WASHER , Replaced By: N000125008443
474
WASHER EXHAUST MUFFLER TO STRAP
477
SCREW BRACKET WITH FUEL FILTER TO ENGINE
480
LOCK WASHERROCKINGER TYP 59 G140,59 G150
999
SEAL RING BETWEEN EXHAUST MANIFOLD,FRONT,CENTRAL AND REAR
999
SEAL RING , Replaced By: A0179971748
999
FLANGE GASKET , Replaced By: A4424920080
999
BUSHING , Replaced By: A4031440550
999
BUSHING , Replaced By: A4031440450
999
WASHER , Replaced By: A4239900040
999
CLAMPING PIECE , Replaced By: A4031420212
999
GASKET , Replaced By: A4031420380
999
SCREW EXHAUST MANIFOLD TO CYLINDER HEAD,407.901 027658
999
SCREW , Replaced By: A4479905204
999
EXHAUST MANIFOLD , Replaced By: A4041420701
999
EXHAUST COLLECTOR PIPE , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A4041400209
999
EXHAUST MANIFOLD , Replaced By: A4041420801
999
CONNECTOR , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 001847, Replaced By: A4241420211
999
EXHAUST MANIFOLD , Replaced By: A4211420201, +001A4224920080
999
EXHAUST MANIFOLD , Replaced By: A4211420201, +001A4224920080
999
EXHAUST MANIFOLD , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A4041400209
999
EXHAUST MANIFOLD , Replaced By: A4041400409
999
SCREW FRONT SUSPENSION EYE TO CYLINDER HEAD
999
EXHAUST MANIFOLD , Replaced By: A4071400709
999
EXHAUST MANIFOLD , Replaced By: A4071400709
999
GASKET , Replaced By: A4471420180
999
EXHAUST MANIFOLD , Replaced By: A4071421601
999
GASKET EXHAUST MANIFOLD TO CYLINDER HEAD
999
EXHAUST MANIFOLD , Replaced By: A4071421601
999
EXHAUST MANIFOLD FRONT
999
EXHAUST MANIFOLD ,027658, Replaced By: A4271420401, +012A4031420212, +012A4479905404
999
EXHAUST MANIFOLD , Replaced By: A4271420101, +012A4479905404
999
EXHAUST MANIFOLD , Replaced By: A4271420001
999
EXHAUST MANIFOLD , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO ENGINE OM 402-266672 OM 422-188127 OM 442-012717, Replaced By: A4421400010
999
SCREW EXHAUST MANIFOLD TO CYLINDER HEAD,407.901 027659
999
SCREW CYLINDER HEAD TO CYLINDER CRANKCASE
999
WASHER , Replaced By: N007349010003
999
EXHAUST MANIFOLD , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO ENGINE OM 401-266672 OM 421-188127, Replaced By: A4441400010
999
GASKET , Replaced By: A4441420280
999
EXHAUST MANIFOLD ,027658, Replaced By: A4271420401, +012A4031420212, +012A4479905404
999
SCREW , Replaced By: A4479905504
999
FRAME INTERMEDIATE PIECE TO BRACKET
999
SCREW AT CYLINDER HEAD/OVERFLOW VALVE/FUEL FILTER
999
SUPPORT , TO BE ORDERED ONLY FROM MTU-FRIEDRICHSHAFEN
999
BRACKET CONSOLE TO BRACKET
999
EXHAUST MANIFOLD CENTRAL
999
EXHAUST MANIFOLD CENTRAL
999
FLEXIBLE METAL TUBE
999
FLEXIBLE METAL TUBE
999
BRACKET AT CYLINDER HEAD/OVERFLOW VALVE/FUEL FILTER
999
CONNECTOR INTERMEDIATE PIECE TO BRACKET
999
EXHAUST MANIFOLD CENTRAL
999
SCREW SHIFTING ROD TO JOINT
999
CONICAL SPRING WASHER CONSOLE TO SIDE MEMBER
999
WASHER STRUT TO CROSS MEMBER
999
SCREW RELEASE LEVER TO SHAFT
999
SCREW. HEXAGON HEAD BOLT BRACKET TO TRANSMISSION CASE M12X1.75X55
999
SCREW PLATE TO FRAME M 10X45
