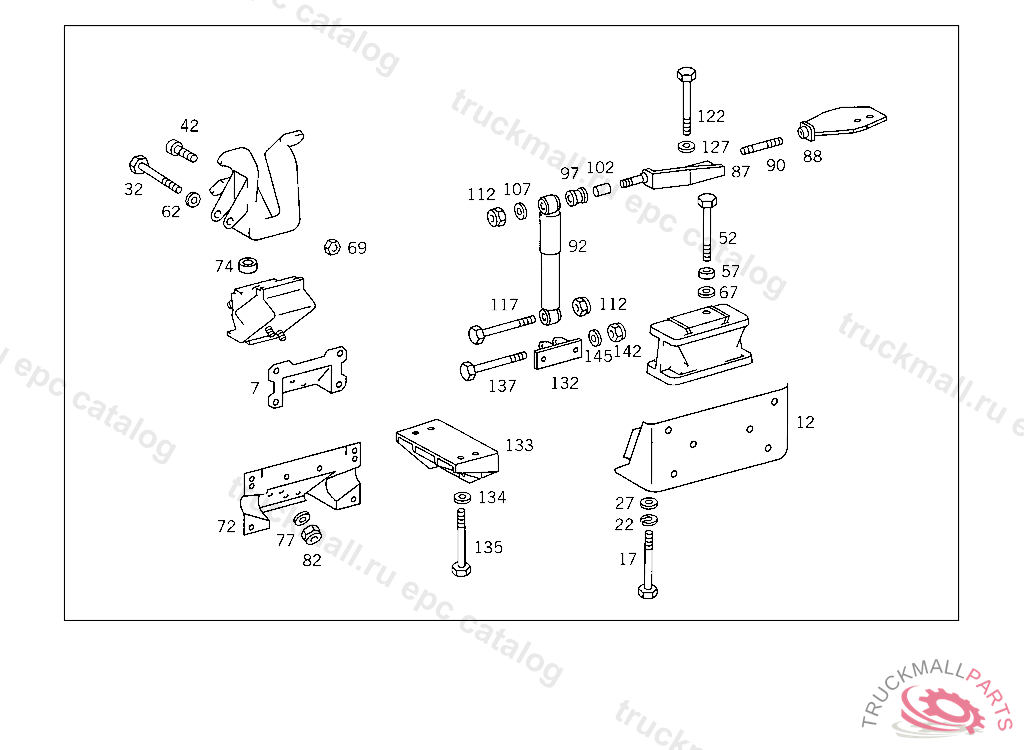

Поз.
Артикул
Описание
7
BEARING BRACKET LEFT AND RIGHT
12
CONSOLE ,4 950095 TO BE ADAPTED DURING ASSEMBLY, Replaced By: A6202400206, +002N000961016011, +002N000961016033, +002N000961016040, +002N913004016004
17
HEXAGON HEAD BOLT , Replaced By: A0029902704
22
LOCK WASHER FITTING TO BRACKET
27
WASHER
32
SCREW STEERING BOX ASSEMBLY TO STEERING SUPPORT
32
SCREW CONSOLE TO FRAME
32
SCREW BRACKET TO ENGINE MOUNTING
32
SCREW SUPPORT TO SIDE MEMBER M 14X45
32
SCREW RUBBER MOUNTING TO SUPPORTING ARM M 16X1.5X60
32
SCREW SUPPORT TO SIDE MEMBER M 14X90
32
SCREW BEARING BRACKET TO REAR AXLE M 16X1.5X50
32
SCREW SHOCK ABSORBER TO UPPER BEARING BRACKET,5 261497
32
SCREW SHOCK ABSORBER TO BOTTOM BRACKET M 16X85
32
SCREW ENGINE TO ENGINE FRONT SUPPORT
32
SCREW , Replaced By: N308765014006
32
SCREW , Replaced By: N000960016250
32
SCREW , Replaced By: N308676016020
42
SCREW BRACKET TO LEFT SIDE MEMBER
52
SCREW BRACKET TO ENGINE MOUNTING
52
SCREW CONSOLE TO FRAME
52
SCREW , Replaced By: N308676016020
52
SCREW PLATE TO CENTRAL BEARING
52
SCREW BEARING BRACKET ON BEARING BRACKET FOR LONGITUDINAL CONTROL ARM M 18X1,5X35,K 164363
57
SPACER TUBE ENGINE MOUNTING TO ENGINE SUPPORT
62
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
62
WASHER SENSOR CABLE TO REAR AXLE,LEFT AND RIGHT
62
WASHER CROSS MEMBER TO SUPPORT
62
WASHER CONSOLE TO FRAME
62
WASHER , Replaced By: N000125015019
67
WASHER , Replaced By: N000125017016
67
WASHER BRACKET TO FRAME
67
WASHER ENGINE MOUNTING TO SUPPORTING ARM
67
WASHER ENGINE MOUNTING ON CLUTCH END TO ENGINE SUPPORT
69
HEXAGON NUT PROPELLER SHAFT TO PROPELLER SHAFT BEARING AND TO REAR AXLE
69
HEXAGON NUT. NUT PROPELLER SHAFT TO PROPELLER SHAFT BEARING AND TO REAR AXLE, Replaced By: N000000005461
72
SUPPORT RUBBER MOUNT
74
INTERMEDIATE PIECE BRACKET TO SIDE MEMBER,5 075149
77
WASHER
82
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
87
BRACKET ENGINE SHOCK ABSORBER,LEFT
87
BRACKET ENGINE SHOCK ABSORBER, RIGHT
88
BRACKET ENGINE MOUNTING AND BRACKET TO BELL HOUSING SUPPORTING ARM
88
BRACKET ENGINE SHOCK ABSORBER
90
STUD BOLT CONSOLE TO SUPPORT
92
ENGINE VIBRATION ABSORBER
92
ENGINE VIBRATION ABSORBER VIBRATION ABSORBER
92
ENGINE VIBRATION ABSORBER , Replaced By: A0002402348
92
ENGINE VIBRATION ABSORBER VIBRATION ABSORBER
97
RUBBER BUFFER , Replaced By: A0003234385
97
RUBBER MOUNTINGFICHTEL&SACHS
97
RUBBER MOUNTING ,4 330046
102
BUSHING
107
WASHER
112
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
117
SCREW ,5 903514, Replaced By: N000960012353
117
HEXAGON HEAD BOLT. SCREW CLAMP TO DRAG LINK
122
SCREW , Replaced By: N000961016097
122
SCREW , Replaced By: N308676016005
122
SCREW ENGINE MOUNTING AND BRACKET TO BELL HOUSING SUPPORTING ARM
122
SCREW SUPPORT TO TRANSMISSION M 16X1.5X60
127
WASHER BEARING BRACKET TO SIDE MEMBER
127
WASHER CONSOLE TO FRAME
132
BEARING BRACKET ENGINE SHOCK ABSORBER
133
BEARING BRACKET RIGHT FRONT RUBBER MOUNTING
133
BEARING BRACKET LEFT FRONT RUBBER MOUNTING,067210
134
WASHER RUBBER MOUNTING TO BEARING BRACKET
135
SCREW LEFT AND RIGHT CONSOLES TO CAB
137
HEXAGON HEAD BOLT. SCREW CLAMP TO DRAG LINK
137
SCREW ,5 903514, Replaced By: N000960012353
137
SCREW BRACKET TO CONSOLE
142
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
142
HEXAGON HEAD BOLT , Replaced By: A0029902704
145
WASHER
999
INTERMEDIATE PIECE ENGINE MOUNTING TO ENGINE SUPPORT
999
INTERMEDIATE PIECE ENGINE MOUNTING TO ENGINE SUPPORT
999
WASHER ENGINE MOUNTING TO ENGINE SUPPORT
999
SCREW SUPPORTING ARM TO HOUSING M 16X35
999
SCREW ENGINE SUPPORT TO CYLINDER CRANKCASE M14X1.5X90, FROM ENGINE 880886-999999 YEAR OF MANUFACTURE 1988-1990 FROM ENGINE 100001 YEAR OF MANUFACTURE 1990 UP TO ENGINE 923826 YEAR OF MANUFACTURE 1988
999
SCREW ALTERNATOR SUPPORT TO CYLINDER CRANKCASE
