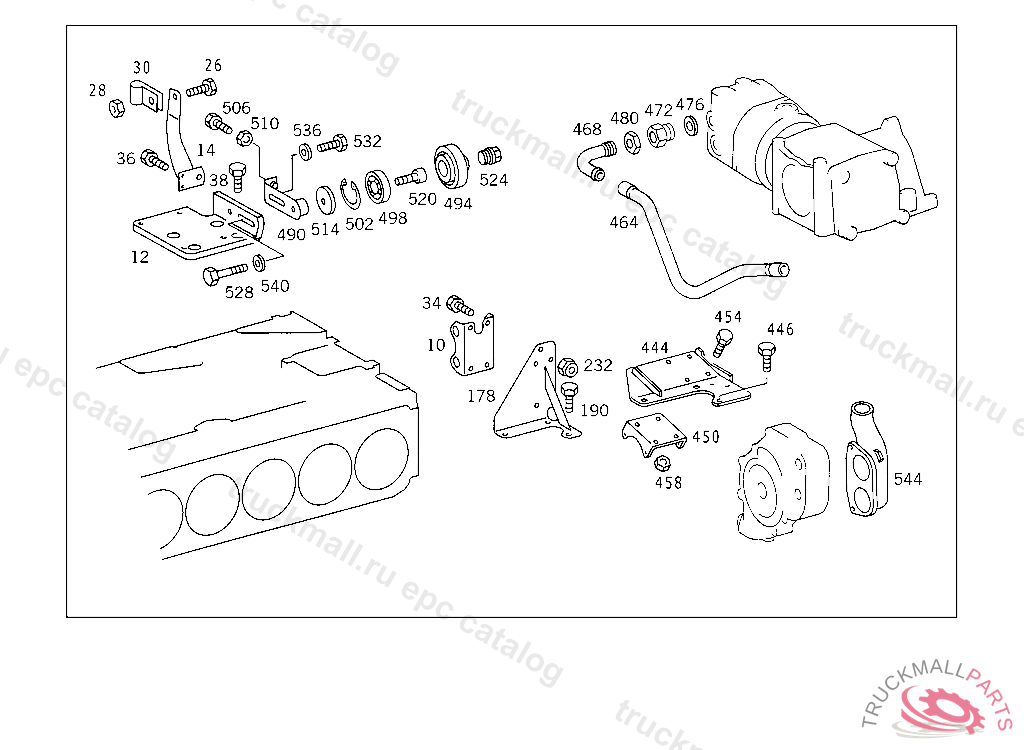

Поз.
Артикул
Описание
10
BRACKET
12
BASE PLATE
12
BASE PLATE
12
BASE PLATE
12
BASE PLATE REFRIGERANT COMPRESSOR
12
BASE PLATE , EXHAUST STOCK OF OLD PARTS UP TO ENGINE 062077, Replaced By: A4471300236
14
BRACKET , EXHAUST STOCK OF OLD PARTS UP TO ENGINE 062077, Replaced By: A4471300540
14
BRACKET , Replaced By: A4471300440
14
BRACKET
14
BRACKET
14
BRACKET OIL FILLER PIPE
14
BRACKET
26
SCREW STOP TO BATTERY CASE
28
HEXAGON NUT. NUT , Replaced By: N913023008002
30
CLAMP SAFETY VALVE AT BRACKET
34
SCREW BRACKET TO CROSS CONNECTION STRUT
34
SCREW , Replaced By: N304017008034
36
SCREW STOP TO BATTERY CASE
36
SCREW , Replaced By: N304017008021
38
SCREW SUPPORT TO CYLINDER CRANKCASE
38
SCREW BRACKET TO SIDE MEMBER
38
SCREW , Replaced By: N304017014011
178
SUPPORT
190
SCREW BRACKET TO LEFT SIDE MEMBER
232
NUT , Replaced By: N913004008001
444
SUPPORT REFRIGERANT COMPRESSOR
444
SUPPORT REFRIGERANT COMPRESSOR
446
SCREW BRACKET IN CYLINDER CRANKCASE
446
SCREW BRACKET TO LEFT SIDE MEMBER
450
BRACKET
454
HEXAGON HEAD BOLT BRACKET TO BRACKET M8X25
454
SCREW BRACKET TO CROSS CONNECTION STRUT
454
SCREW , Replaced By: N304017008034
458
NUT , Replaced By: N304032008006
458
NUT STRAP TO BRACKET
464
INTAKE PIPE ,053903
464
INTAKE PIPE ,053903
468
PIPE BEND AT AIR COMPRESSOR
472
FITTING AIR COMPRESSOR,052177052178 SEE ENGINE MICROFICHE
476
SEAL RING FROM PIPE ELBOW TO AIR COMPRESSOR
480
NUT 3/2-WAY VALVE TO CAB,4 685151
480
NUT , Replaced By: N080705026003
490
SUPPORT TIGHTENER PULLEY
490
SUPPORT TIGHTENER PULLEY,062077
490
SUPPORT
494
GUIDE PULLEY
494
TIGHTENER PULLEY
498
BALL BEARING TIGHTENER PULLEY
502
LOCK RING52X2 MM
506
SCREW SHIFTING ROD TO SHIFT LEVER
506
HEXAGON HEAD BOLT BRACKET TO DISTRIBUTOR
510
NUT BRACKET TO SUPPORT AND TO END PIECE
510
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
510
NUT , Replaced By: N913023010002
514
BUSHING TIGHTENER PULLEY TO SUPPORT
520
SCREW TO SECURE SET NUT M 10X1.5X45
520
SCREW
524
SCREW PLUG AT TANK
528
SCREW CONNECTOR TO REAR SHIFTING ROD
528
SCREW FLANGE TO THROTTLE HOUSING
528
SCREW , Replaced By: N304017010047
532
SCREW , Replaced By: N304017010047
532
SCREW BRACKET TO SIDE MEMBER M10X35
532
SCREW , Replaced By: N304017008021
532
SCREW CONNECTOR TO REAR SHIFTING ROD
536
WASHER STRUT TO CROSS MEMBER
536
WASHER , Replaced By: N007349010007
540
WASHER , Replaced By: N007349010007
540
WASHER STRUT TO CROSS MEMBER
540
WASHER SPARE WHEEL CARRIER
544
OUTLET FROM THERMOSTAT TO RADIATOR
544
OUTLET , Replaced By: A4032011931
999
PROTECTIVE PLATE
999
OIL FILLER NECK
999
OIL FILLER NECK
999
HEXAGON HEAD BOLT. SCREW CLUTCH TO FLYWHEEL M8X16 MM
999
SUPPORT REFRIGERANT COMPRESSOR, NOT USED
999
GASKET
999
V-BELT FROM TIGHTENER PULLEY TO FAN DRIVE 12X1250 MM,D 180260
999
BUSHING
999
BUSHING
999
PULLEY
999
INTERMEDIATE PIECE FAN TO VIBRATION DAMPER
999
GUIDE TUBE
999
PULLEY THREE-GROOVE
999
INTERMEDIATE PIECE PULLEY
999
SUPPORT ALTERNATOR
999
CLAMPING BOLT (CLAMPING BOLT)
999
COVER
999
GASKET
999
INTERMEDIATE PIECE , Replaced By: A4220350314, +006N000933008247
999
PULLEY TWO-GROOVE
999
INTERMEDIATE PIECE , Replaced By: A4030350914
999
INTERMEDIATE PIECE FAN TO VIBRATION DAMPER
