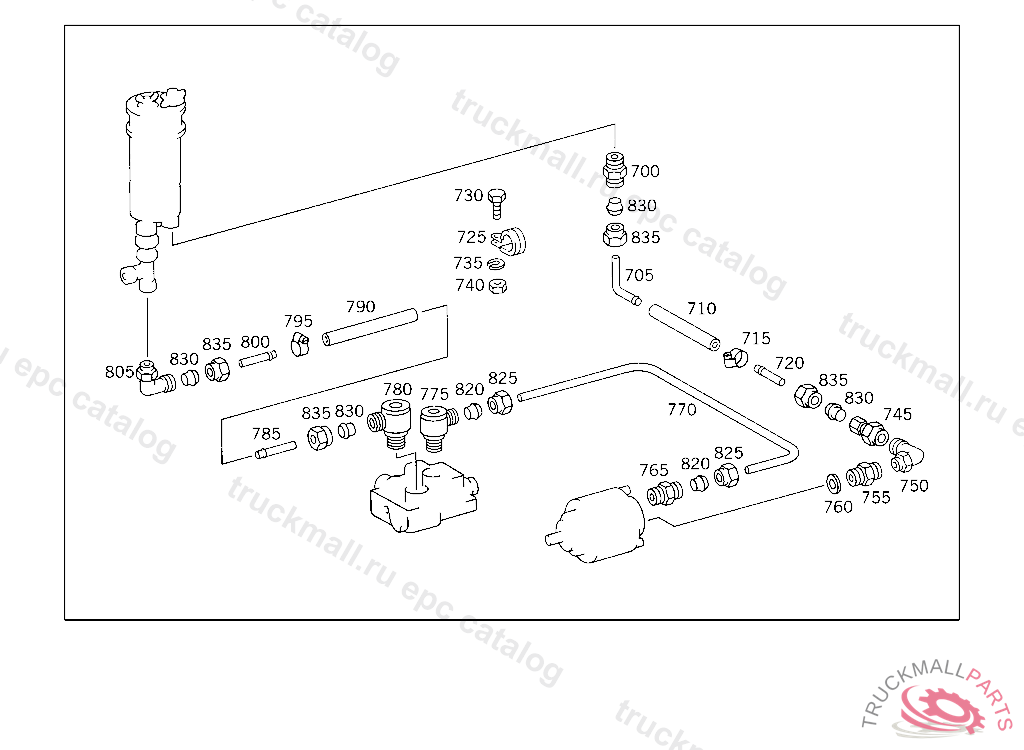

Поз.
Артикул
Описание
700
SCREW-IN FITTING OIL TANK
705
PIPE FROM OIL TANK TO POWER STEERING PUMP AT ENGINE
710
HOSE FROM OIL TANK TO POWER STEERING PUMP AT ENGINE 22.2X31.3 MM, ORDER BY THE METER
715
LOOM TIE , Replaced By: N000000000668
715
CLAMP , Replaced By: A0069970490
715
CLAMP25-40X13 MM
720
LINE (POWER STEERING PUMP) II,AT TRANSMISSION
725
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
730
SCREW , Replaced By: A4609900601
730
SCREW EXHAUST PIPE TO BRACKET
735
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
740
NUT , Replaced By: N304032008006
740
NUT
745
SCREW CONNECTION TOP LEFT
750
FITTING OIL LINE TO OIL COOLER
755
SCREW-IN FITTING LINE TO OIL PUMP
760
SEAL RING POWER STEERING PUMP TO BEARING FLANGE
765
SCREW-IN FITTING LINE CONNECTION
765
FITTING , Replaced By: N003901018008
770
LINE , Replaced By: A0005516456
770
TUBE FEED AND RETURN LINES TO OIL COOLER, LENGTH AVAILABLE 3000 MM
775
SCREW CONNECTION LINE CONNECTION
780
THREADED CONNECTION SUCTION LINE TO OIL PUMP
780
SCREW CONNECTION SUCTION LINE TO OIL PUMP, Replaced By: N000000006460
785
LINE , Replaced By: A3952571466
785
PIPE FROM HOSE LINE TO OIL FILTER, UP TO IDENT NO. 5 274831 EXCEPT FOR 5 264779, 5 268469
790
HOSE FROM OIL TANK TO POWER STEERING PUMP AT ENGINE 22.2X31.3 MM, ORDER BY THE METER
795
LOOM TIE , Replaced By: N000000000668
795
CLAMP , Replaced By: A0069970490
795
CLAMP25-40X13 MM
800
LINE , Replaced By: A3952571466
800
PIPE FROM HOSE LINE TO OIL FILTER, UP TO IDENT NO. 5 274831 EXCEPT FOR 5 264779, 5 268469
805
FITTING SUCTION LINE TO OIL PUMP
820
SEAL CONE LINE MOUNTING
820
GLAND , Replaced By: A0019901167
825
UNION NUT LINE MOUNTING
830
SEAL CONE LINE CONNECTION
830
GLAND , Replaced By: A0019901267
835
UNION NUT LINE CONNECTION, Replaced By: N000000006243
835
NUT LINE CONNECTION
