Поз.
Артикул
Описание
5

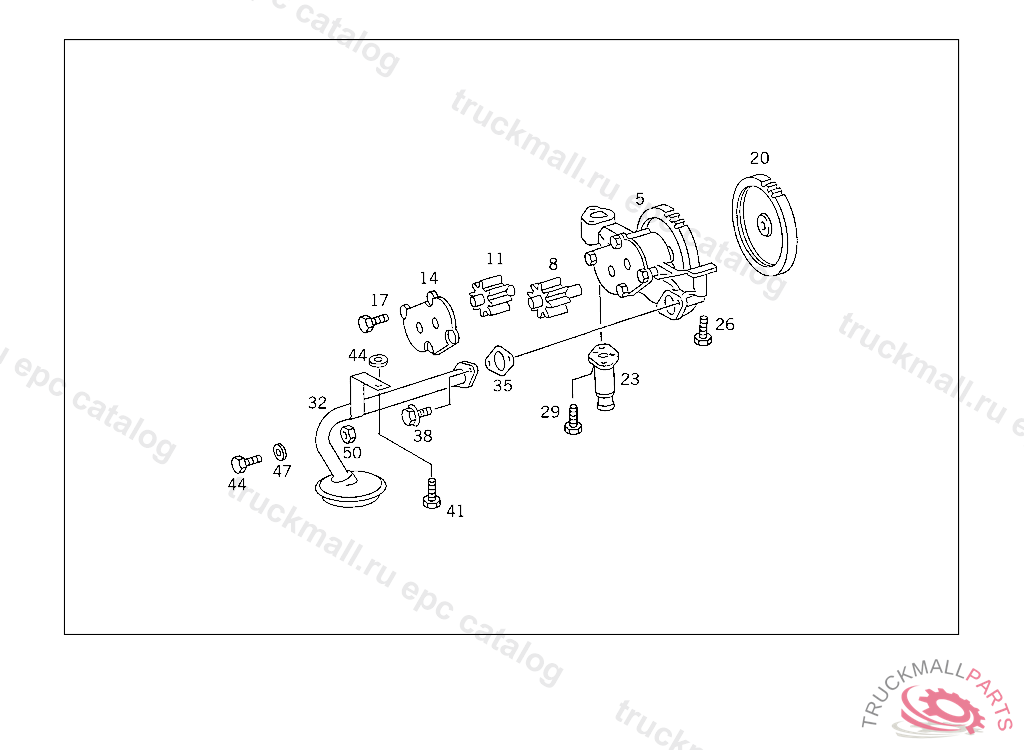

OIL PUMP ,006560 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
8
GEAR ,006560
11
GEAR DRIVEN
14
COVER
17
SCREW CABLE HARNESS MOUNTING
17
SCREW PILLAR TO BRACKET AND TO FRONT PANEL
17
SCREW , Replaced By: N304017008030
17
SCREW , Replaced By: N304017008023
20
DRIVE GEAR
23
PRESSURE RELIEF VALVE
23
PRESSURE RELIEF VALVE , EXHAUST STOCK OF OLD PARTS UP TO ENGINE 492315, Replaced By: A4421800015
26
SCREW 3/2-WAY SOLENOID VALVE TO BRACKET M 8X95
29
SCREW BRACKET TO BEARING BRACKET, 393.311 FROM IDENT NO.: 4 450303,393.321 FROM IDENT NO.: 4 453074,395.312,322 FROM IDENT NO.: 4 426006
32
SUCTION PIPE RIGHT OIL PUMP,102230
32
SUCTION PIPE LEFT OIL PUMP,102230
35
GASKET SUCTION PIPE TO OIL PUMP 36X58
35
GASKET , Replaced By: N917003036003
38
SCREW PIPE BEND TO BRACKET
41
SCREW , Replaced By: A0089907401
41
SCREW BRACKET TO SIDE MEMBER,K 168169
44
SCREW STOP TO BATTERY CASE
44
SCREW , Replaced By: N304017008034
47
WASHER
50
NUT
