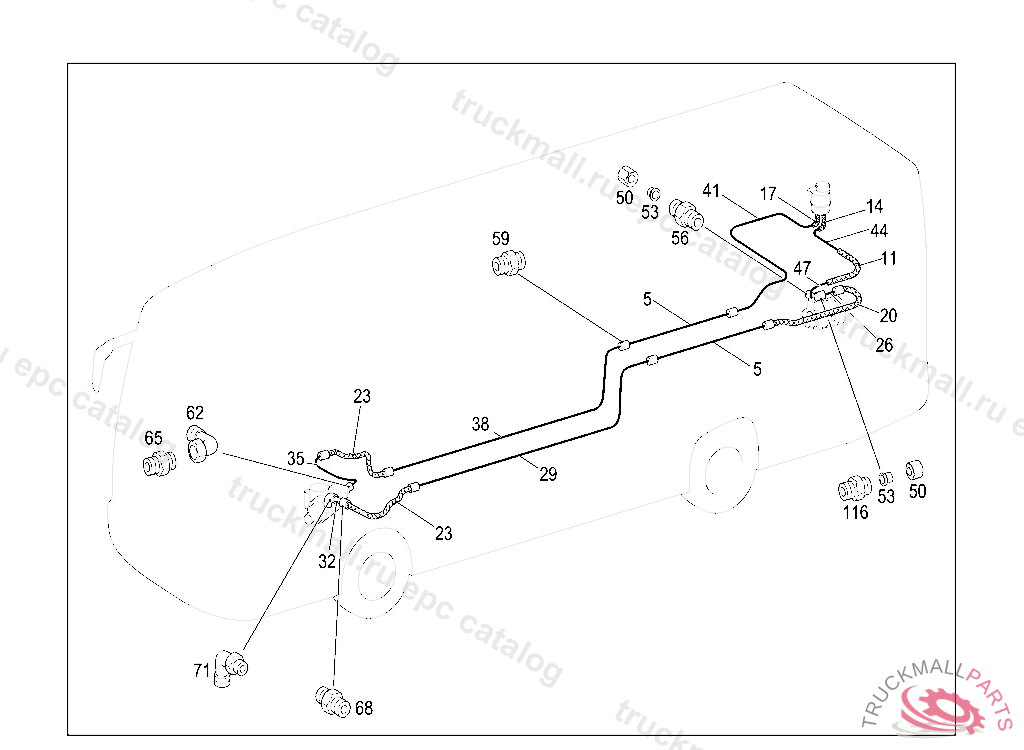

Поз.
Артикул
Описание
5
TUBE NIROSTA 15X1,5MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
11
HOSE , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
14
HOSE
17
HOSE 90-DEGREE ARC NW15
20
HOSE
23
LINE. HOSE
26
LINE HYDRAULIC LINE ON POWER STEERING PUMP
29
LINE2740MM
32
LINE190MM
32
LINE HYDRAULIC LINE ON POWER STEERING PUMP 12X80MM
35
LINE HYDRAULIC LINE ON POWER STEERING PUMP 450MM
35
LINE480MM
38
LINE2540MM
41
LINE15X1,5X2450MM
44
LINE22,420MM
47
LINE HYDRAULIC LINE ON POWER STEERING PUMP 22X1X180MM
50
NUT LINE CONNECTION
50
NUT LINE CONNECTIONS AL 15
50
UNION NUT LINE CONNECTION
50
UNION NUT LINE CONNECTION, Replaced By: N000000006239
50
UNION NUT LINE CONNECTION
50
UNION NUT LINE CONNECTION, Replaced By: N000000006243
53
GLANDBL22
53
CUTTING RINGS12
53
GLAND (DELIVERY AND SUCTION LINE) BL15
56
SCREW-IN FITTING SUCTION LINE TO OIL PUMP
59
CONNECTION FITTING HIGH PRESSURE LINE TO STEERING
62
FITTING OIL LINE CONNECTION
65
SCREW-IN FITTING , Replaced By: N003901015005
68
FITTING AT STEERING GEAR
71
FITTING AT STEERING GEAR
116
FITTING DELIVERY LINE TO STEERING GEAR,087560
