Mercedes A0001543004 - Deckel

TOURINO REISEBUS AUF MBC 444.203

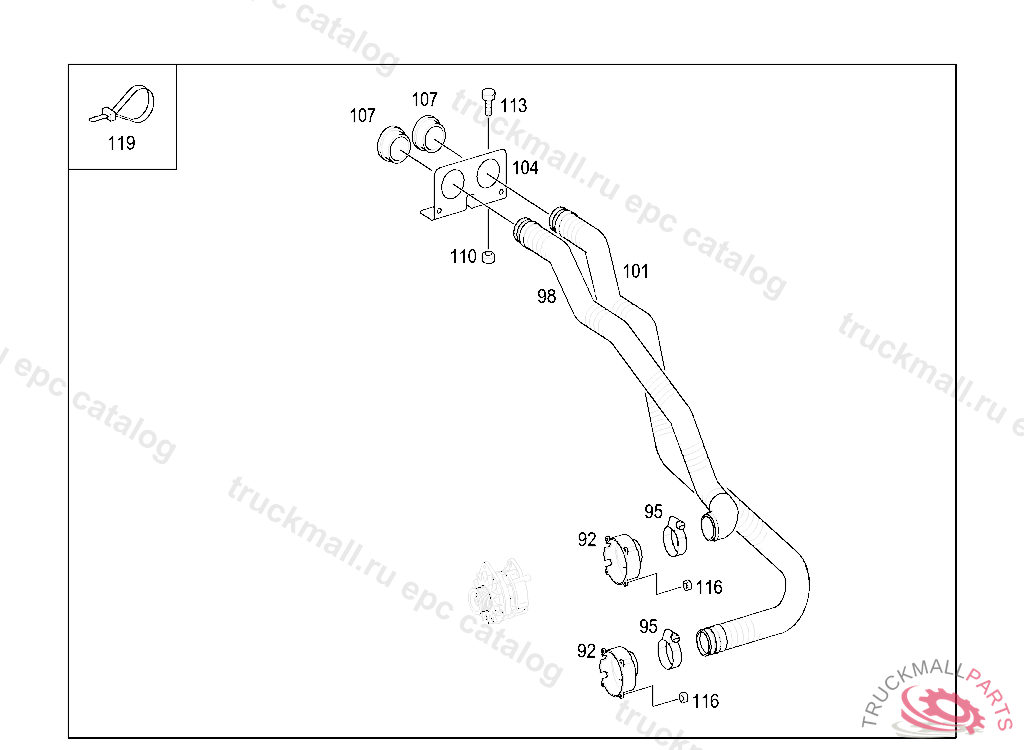

52 CHASSIS SHEET METAL - 120 AIR INTAKE IL. 4

Поз.
Артикул
Описание
92
A5421540004
COVER
92
A0001543004
COVER
95
N000000001468
CLAMP HOSE TO RADIATOR,PIPE ELBOW,AND WATER PUMP 60-80X13 MM
98
A0069977552
SUCTION HOSE1200MM
98
A0029974752
HOSE1200MM
101
A0039977252
HOSE2800MM
101
A0029973952
HOSE1700MM
104
A6345280540
BRACKET
107
A0005280001
PROTECTIVE GRILLE ALTERNATOR AIR INTAKE
110
N910112010001
NUT , Replaced By: N913023010002
110
N913023008003
NUT HORN TO BRACKET M8
113
N910105010009
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
113
N910105008045
SCREW. HEXAGON HEAD BOLT GGVS-COMPONENT IN BATTERY CARRIER M8X55
116
N910112005000
HEXAGON NUT. NUT ELECTRIC CABLE TO ALTERNATOR
116
N910112010001
NUT , Replaced By: N913023010002
119
A0049971890
LOOM TIE
119
A0029979090
LOOM TIE , Replaced By: A0059974390
999
N000000006128
CLAMP76/25MM
999
N000000003186
CLAMP76/25MM, Replaced By: N000000006128
999
A4448310028
INTERMEDIATE PIECE70X60X25MM
