Поз.
Артикул
Описание

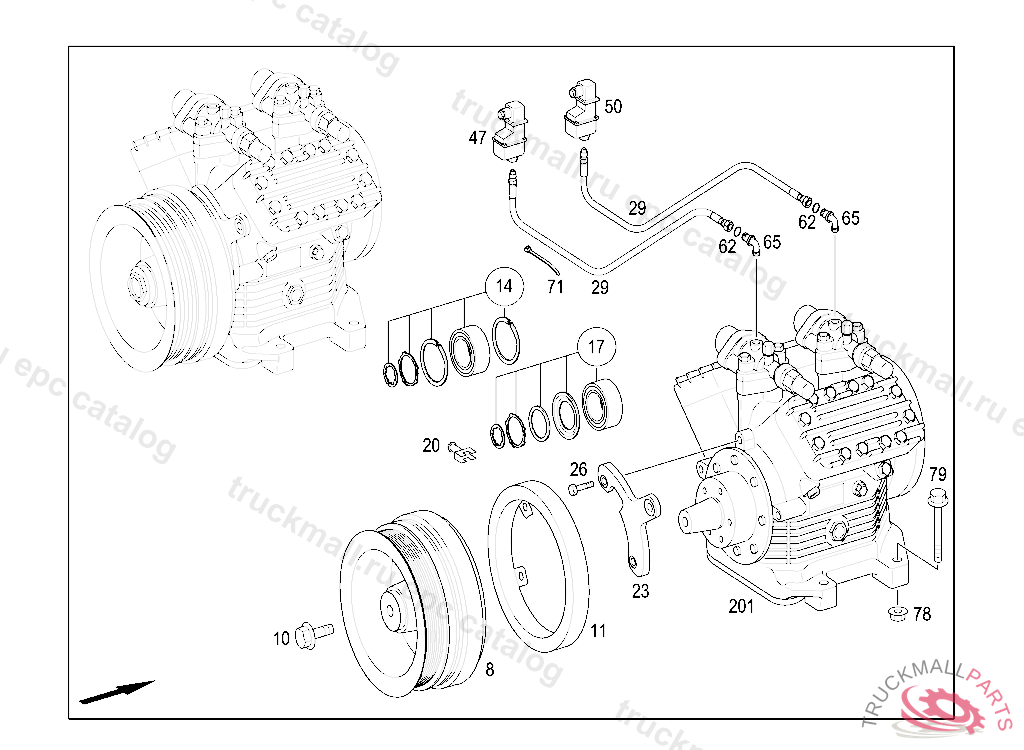

8
MAGNETIC COUPLINGFK30
8
COUPLING
8
MAGNETIC COUPLINGLA 16.168
8
MAGNETIC COUPLINGFKX40, Replaced By: A0018300660
8
COUPLING , Replaced By: A6298330026
8
MAGNETIC COUPLINGTO 629 830 40 60, Replaced By: A0018304972
8
MAGNETIC COUPLINGLA 16.168, Replaced By: A0018304972
8
COUPLING , Replaced By: A0008334526
10
SCREW MAGNETIC COUPLING FA LINNIG
11
MAGNETIC RING
11
MAGNETIC RING
14
BALL BEARING REPAIR KIT, WITHOUT SPACER BUSHING
17
GROOVED BALL BEARING REPAIR KIT TO A 001 830 49 72
20
CABLE HARNESS
23
BRACKET
23
BRACKET
26
SCREW FRONT SHIFTING ROD TO REAR SHIFTING ROD
29
COOLANT LINE
29
HOSE HIGH PRESSURE 370MM
29
COOLANT LINE LOW PRESSURE 550MM
29
HOSE LOW PRESSURE 550MM, Replaced By: A0008306096
47
PRESSURE MONITOR HIGH PRESSURE 18/22BAR, Replaced By: A0008331150
47
PRESSURE MONITOR LOW PRESSURE 0.2/0.4 BAR
47
SWITCH HIGH PRESSURE 18/22BAR
50
PRESSURE MONITOR HIGH PRESSURE 20/25BAR
50
SWITCH LOW PRESSURE 0,2/0,4BAR
50
PRESSURE MONITOR HIGH PRESSURE 18/22 BAR
50
PRESSURE MONITOR LOW PRESSURE 0,2/0,4BAR, Replaced By: A0008331050
62
SEAL RING
65
FITTING601-7313
71
LOOM TIE
78
NUT BRACKET TO SIDE MEMBER M12X1.5
79
HEXAGON HEAD BOLT AIR DEHYDRATOR TO BRACKET M12X55,V 207570
201
COMPRESSOR , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A6298309460
201
COMPRESSOR , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A6298309460
201
COMPRESSORFKX40/470K, TO BE ADAPTED DURING ASSEMBLY
