Поз.
Артикул
Описание
5

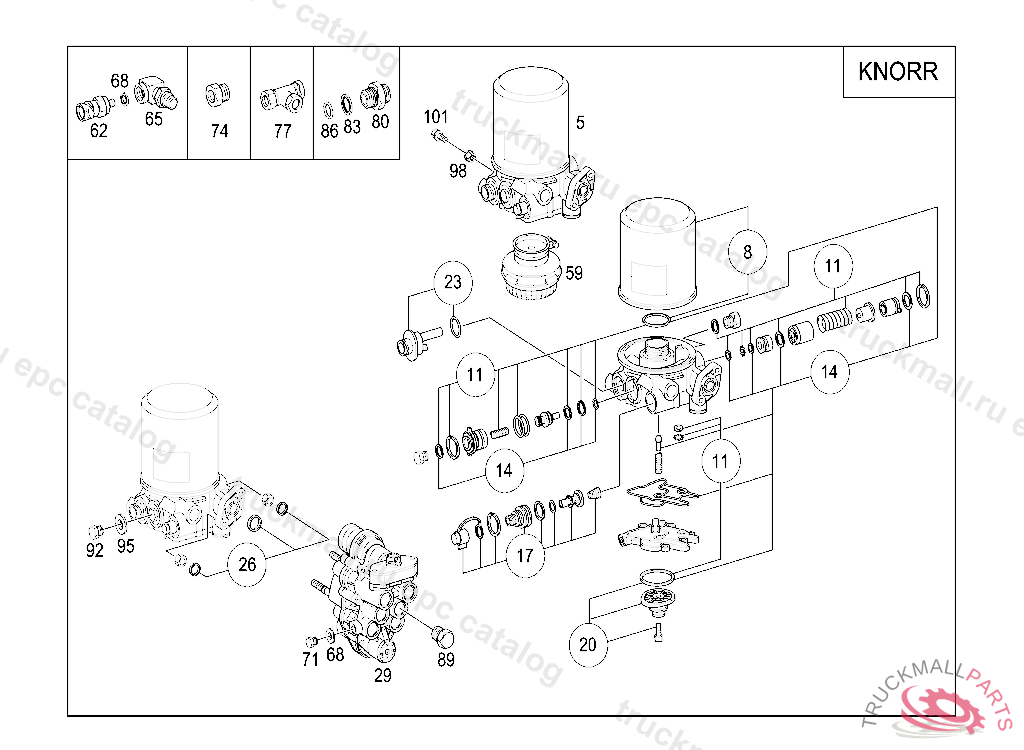

AIR DEHYDRATOR WITH PRESSURE REGULATOR AND HEATING KNORR,6.12, Replaced By: A0004309615
8
AIR CLEANER WITH OIL SEPARATOR WABCO
8
AIR CLEANER PARTS KIT KNORR
8
AIR CLEANER , Replaced By: A0004293695
11
REPAIR KIT AIR DEHYDRATOR KNORR
14
GASKET KIT AIR DEHYDRATOR TO 693 420 75 71
17
PARTS KIT PRESSURE REGULATOR TO 693 420 73 71,75 71
20
PARTS KIT AIR DEHYDRATOR,CONNECTION: "30", KNORR
23
HEATER PARTS KIT KNORR
26
SEAL RING FOUR-CIRCUIT PROTECTION VALVE TO AIRDRIER KNORR
29
VALVE (FOUR-CIRCUIT PROTECTIVE VALVE) KNORR, 4.05
59
MUFFLER
62
PLUG SOCKET COMPRESSOR
62
PRESSURE SWITCH RELAY VALVE,CONNECTION: "21", 5.5 BAR
65
ELBOW FITTING LINE CONNECTION
68
SEAL RING 3/2-WAY VALVE
71
SCREW PLUGROCKINGER,TYP 59 U150
74
FITTING REDUCTION FITTING
77
FITTING FROM T-FITTING TO SCREW CONNECTION
80
SCREW-IN FITTING RELAY VALVE,CONNECTIONS: "32,34"
83
THRUST RING CHECK VALVE TO AIR RESERVOIR
86
O-RING CHECK VALVE TO AIR RESERVOIR
89
SCREW PLUG AIR RESERVOIR
92
SCREW PLUG AIR DEHYDRATOR,CONNECTION: M10X1
92
SCREW PLUGROCKINGER,TYP 59 U150
95
SEAL RING 3/2-WAY VALVE,CONNECTION: "Z"
95
SEAL RING 3/2-WAY VALVE
98
NUT BRACKET TO SIDE MEMBER M12X1.5
101
HEXAGON HEAD BOLT BEARING BRACKET TO SIDE MEMBER M 12X50
101
HEXAGON HEAD BOLT. SCREW FRONT EXHAUST PIPE TO BRACKET
999
AIR DEHYDRATOR WITH FOUR-CIRCUIT PROTECTIVE VALVE WABCO
999
VALVE (FOUR-CIRCUIT PROTECTIVE VALVE)
999
SEAL RING (FOUR-CIRCUIT PROTECTIVE VALVE) 11X2
