Mercedes A0039977252 - Шланг воздушный вентиляции генератора

TOURINO REISEBUS AUF MBC 444.203

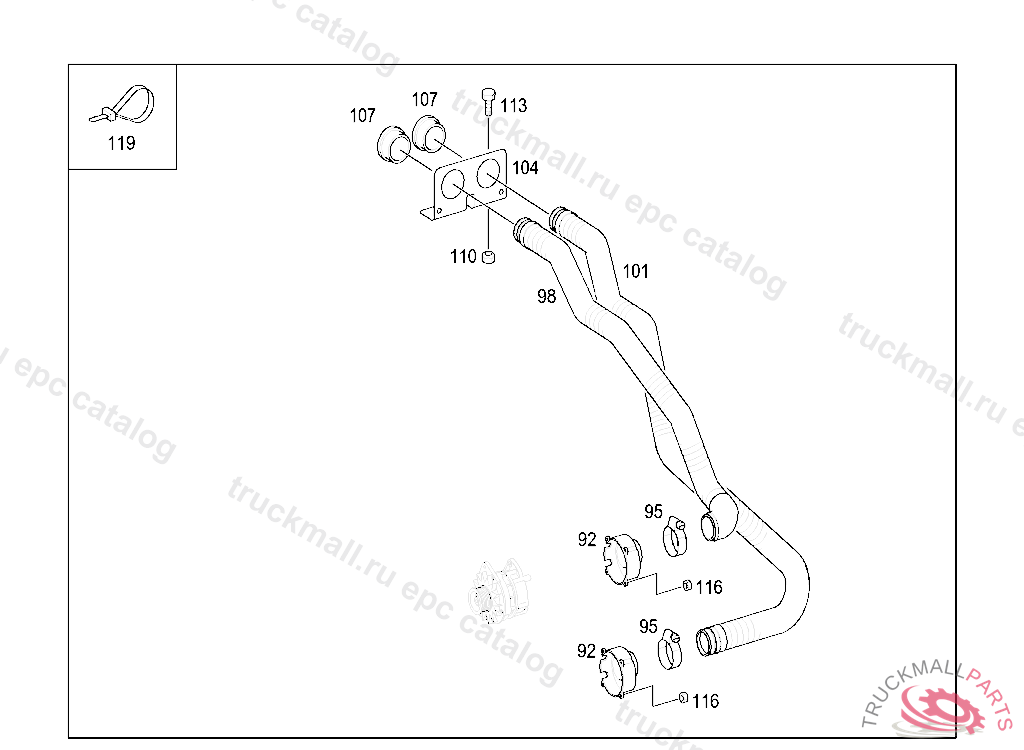

52 CHASSIS SHEET METAL - 120 AIR INTAKE IL. 4

Поз.
Артикул
Описание
92
A5421540004
COVER
92
A0001543004
COVER
95
N000000001468
CLAMP HOSE TO RADIATOR,PIPE ELBOW,AND WATER PUMP 60-80X13 MM
98
A0069977552
SUCTION HOSE1200MM
98
A0029974752
HOSE1200MM
101
A0029973952
HOSE1700MM
101
A0039977252
HOSE2800MM
104
A6345280540
BRACKET
107
A0005280001
PROTECTIVE GRILLE ALTERNATOR AIR INTAKE
110
N913023008003
NUT HORN TO BRACKET M8
110
N910112010001
NUT , Replaced By: N913023010002
113
N910105010009
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
113
N910105008045
SCREW. HEXAGON HEAD BOLT GGVS-COMPONENT IN BATTERY CARRIER M8X55
116
N910112010001
NUT , Replaced By: N913023010002
116
N910112005000
HEXAGON NUT. NUT ELECTRIC CABLE TO ALTERNATOR
119
A0049971890
LOOM TIE
119
A0029979090
LOOM TIE , Replaced By: A0059974390
999
A4448310028
INTERMEDIATE PIECE70X60X25MM
999
N000000003186
CLAMP76/25MM, Replaced By: N000000006128
999
N000000006128
CLAMP76/25MM
