Mercedes N304032008006 - ГАЙКА М8

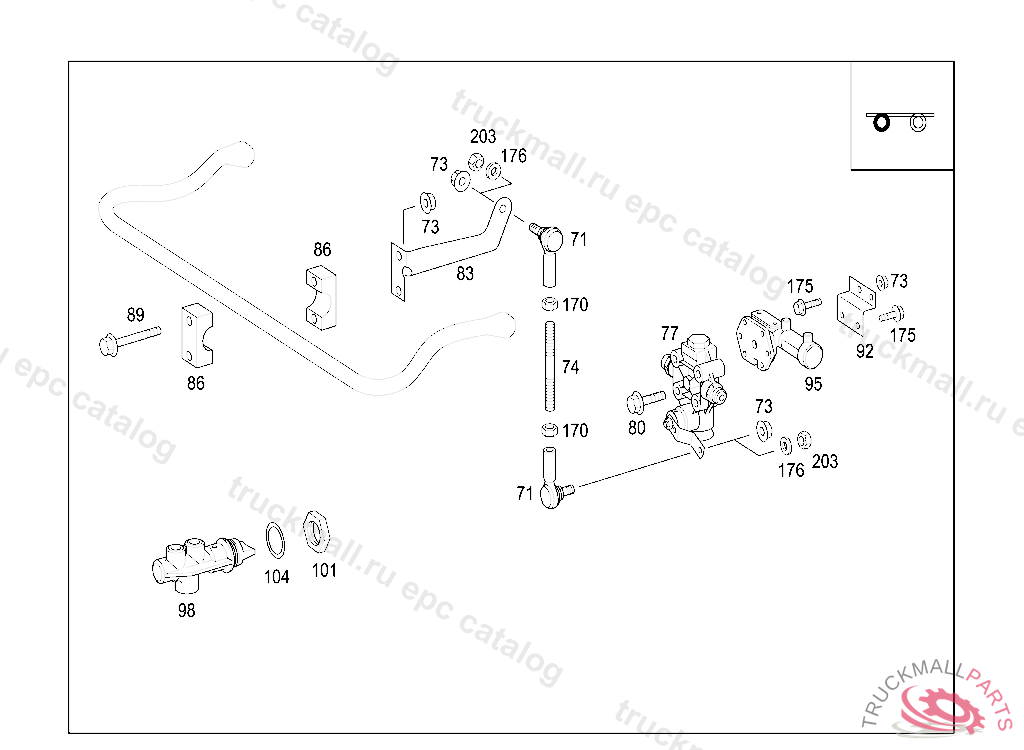

TOURINO REISEBUS AUF MBC 444.203
32 SPRINGS AND SUSPENSION - 060 COMPRESSED AIR LINES,LEVEL ADJUSTMENT VALVES IL. 2
Поз.
Артикул
Описание
71
A0019962545
ANGLE JOINTA13
71
A0003280063
JOINTA13, Replaced By: A0019962545
73
N913023008003
NUT HORN TO BRACKET M8
74
A0003280034
ROD FROM AIR SPRING VALVE TO FRONT AXLE 8 X 90 MM
74
A0019906914
ROD FROM AIR SPRING VALVE TO REAR AXLE M8X250MM
77
A0003278825
VALVE FRONT AXLE
77
A0003279125
VALVE FRONT AXLE
80
N910105008038
SCREW BUMPER TO REAR CROSS MEMBER M 8X50
80
N910105008006
SCREW VALVE TO BRACKET M 8X60
83
A4443270027
LEVER
86
A4443270021
COVER
89
N910105008042
SCREW , Replaced By: N910143008009
92
A4443270040
BRACKET
95
A0003277625
VALVE REAR AXLE LEVEL ADJUSTMENT VALVE
98
A0003277725
VALVE REAR AXLE LEVEL ADJUSTMENT VALVE
101
A0049906351
NUT VALVE TO BRACKET
104
A0059903940
WASHER
170
N304032008006
NUT
175
N910105008026
SCREW BRACKET TO CAB REAR PANEL M 8X20
175
N910105008039
SCREW , Replaced By: N910143008002
176
N000125008445
WASHER PUMP TO CONSOLE
176
N000000003250
WASHER BRACKET TO CAB REAR PANEL
203
N910113008003
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
