Поз.
Артикул
Описание

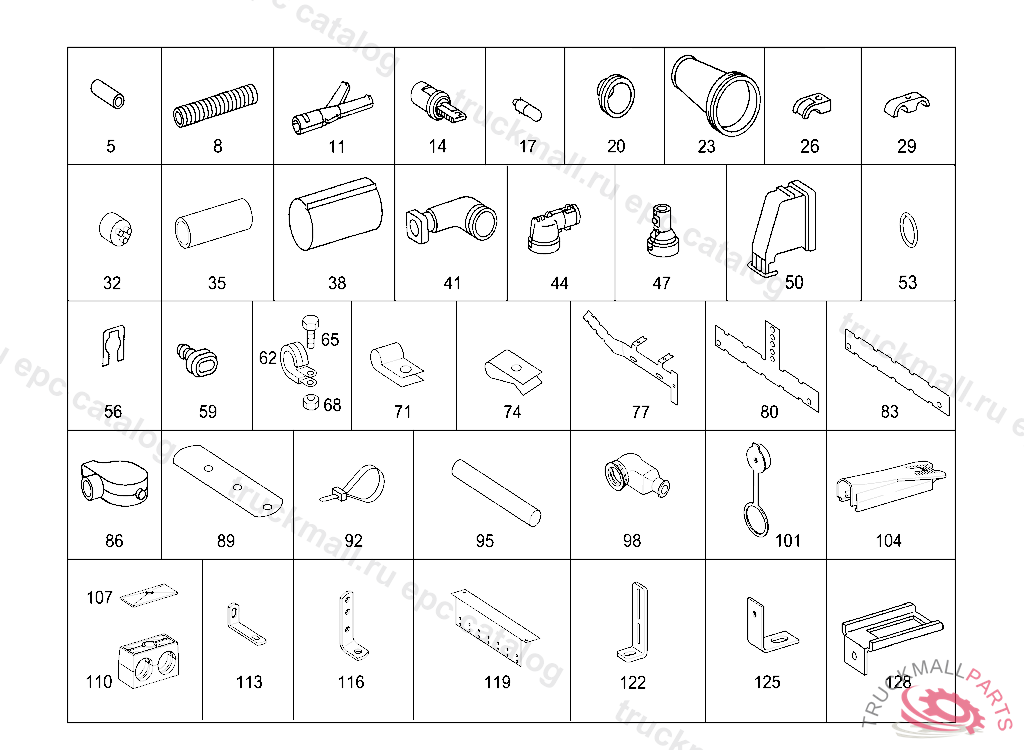

5
GROMMET
5
GROMMET5.0 MM
5
GROMMET BATTERY CABLE TO BATTERY MASTER SWITCH
5
SHRINK HOSE
5
GROMMET HOSE LINE PROTECTION TO 000 546 16 30,71 30
5
GROMMET1.75 MM
5
GROMMET3.0 MM
5
GROMMET LINE MOUNTING 10.0 MM
8
INSULATING HOSE4 X 0.5 MM, ORDER BY THE METER
8
INSULATING HOSE HOSE LINE PROTECTION 13 MM, ORDER BY THE METER
8
INSULATING HOSE HOSE LINE PROTECTION 10 MM, ORDER BY THE METER
8
INSULATING HOSE , Replaced By: A0015460030
8
INSULATING HOSE PRESSURE REGULATOR,CONNECTION "3", ORDER BY THE METER5 148812
8
INSULATING HOSE FLEXIBLE, FOR CABLE HARNESS DIA.: 29.0 MM, ORDER BY THE METER
8
INSULATING HOSE RIGID, FOR CABLE HARNESS DIA.: 26 MM
8
CORRUGATED HOSE , ORDER BY THE METER, Replaced By: A0005461630
8
INSULATING HOSE RIGID, FOR CABLE HARNESS DIA.: 23 MM, ORDER BY THE METER
11
MOLDED PIECE29-22-22
11
MOLDED PIECE10-10-10
11
MOLDED PIECE29 - 29 - 17
11
MOLDED PIECE17-17-13
11
MOLDED PIECE26.0-26.0-10.0
11
MOLDED PIECE13-13-8.5
11
MOLDED PIECE13-10-8.5
11
MOLDED PIECE10-8.5-8.5
11
MOLDED PIECE17-10-8.5
11
MOLDED PIECE17-17-10
11
MOLDED PIECE17-13-13
11
MOLDED PIECE22-22-8.5
11
MOLDED PIECE26-26-8.5
11
MOLDED PIECE22-17-13
11
MOLDED PIECE22-22-13
11
MOLDED PIECE17-10-10
11
MOLDED PIECE22-22-10
11
MOLDED PIECE17-17-8.5
11
MOLDED PIECE17-13-10
11
MOLDED PIECE26 - 22 - 22
11
MOLDED PIECE22-17-17
11
MOLDED PIECE26.0-22.0-17.0
11
MOLDED PIECE8.5-8.5-8.5
14
SOCKET
17
MINIATURE LAMP. BULB24V/1W
20
GROMMET HOSE TO RADIATOR
23
GROMMET FOR BORE 60MM
23
GROMMET DIA., 30X65 MM
26
CLAMPING PIECE BATTERY CABLE MOUNTING
29
CLAMPING PIECE , Replaced By: A6205460244
32
GROMMET ELECTRIC CABLE
35
INSULATING HOSE5 X 0.6 MM, ORDER BY THE METER
35
INSULATING HOSE FEED 11X0.7 MM, ORDER BY THE METER
35
INSULATING HOSE LINE MOUNTING, ORDER BY THE METER
35
INSULATING HOSE AIR DEHYDRATOR, ORDER BY THE METER
38
INSULATING HOSE WITH OVERLAP, FOR CABLE HARNESS DIA.: 30-32 MM, ORDER BY THE METER
38
INSULATING HOSE , Replaced By: A6155460030
41
BOOT PRESSURE SWITCH SCREW-CONNECTION TO M 27X1, M 24X1
44
BOOT 90 DEGREE OUTLET FOR CORRUGATED TUBE NW 8.5 GGVS
44
BOOT 90-DEGREE OUTLET FOR CORRUGATED TUBE 10 MM
47
CAP TWO-PIN PLUG CONNECTION,126372
50
CAP
53
SEAL RING ENGINE SPEED SENSOR, BLACK 10.0X2.0, 2PIN
53
O-RING. SEAL RING BRAKE WEAR SENSOR,HIGHLY FLEXIBLE, BLACK 9.5X1.8, 3PIN
53
SEAL RING ENGINE SPEED SENSOR, ORANGE 9.25X1.8, 2PIN
53
O-RING. SEAL RING BRAKE WEAR SENSOR,HIGHLY FLEXIBLE, ORANGE 10.0X2.0, 3PIN
56
LOCK INSULATING HOSE
59
CAP. BOOT ,126372
62
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
62
CLAMP LINE MOUNTING
62
CLAMP , Replaced By: N916016010211
62
CLAMP CABLE MOUNTING 26/15
62
CLAMP30 / 25
62
CLAMP35/20, Replaced By: N000000007514
62
CLAMP COMPRESSED AIR LINE TO TRANSMISSION COVER 25/15
62
CLAMP LINE MOUNTING 15-18 MM,V 207570
62
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
62
CLAMP
62
CLAMP LINE MOUNTING 10/15, Replaced By: N000000007511
62
CLAMP SUCTION/DELIVERY/RETURN LINES 15/15 MM, Replaced By: A0019950642
65
SCREW BRACKET TO CAB REAR PANEL M 8X20
65
SCREW BRACKET TO DISC WHEEL M 10X16,D 315832
65
SCREW , Replaced By: N304017006026
65
SCREW , Replaced By: N914146006102
65
SCREW , Replaced By: N910143008000
65
SCREW PICK-UP PLATE BRACKET ON LONGITUDINAL MEMBER M 14X25
65
HEXAGON HEAD BOLT HEAT SHIELD MOUNTING M16X1.5X30
65
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
65
SCREW. HEXAGON HEAD BOLT GGVS-COMPONENT IN BATTERY CARRIER M8X55
65
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
65
SCREW STEERING COLUMN MOUNTED SWITCH PLUGCONNECTION
65
SCREW BUMPER TO REAR CROSS MEMBER M 8X50
65
SCREW VALVE TO BRACKET M 8X60
65
SCREWM 8X22, T40
65
HEXAGON HEAD BOLT REFRIGERANT LINE TO CYLINDER HEAD M6X65
65
ECCENTRIC SCREW ROLLER BLIND TO BODY M6X16 T30
65
HEXAGON HEAD BOLT. SCREW BATTERY MOUNTING M5X12
65
HEXAGON HEAD BOLT SUPPORT TO FRAME M14X1.5X60
65
SCREW BRACKET AND CLAMP M6X20
65
HEXAGON HEAD BOLT. SCREW BRACKET TO TRANSMISSION M 10X50
65
SCREW SPEED SENSOR TO REAR AXLE
68
HEXAGON NUTM14X1.5
68
NUT PLUG SOCKET TO BRACKET,5 906887
68
NUT , Replaced By: N913023006001
68
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
68
NUT RELAY TO BRACKET M5
68
NUT HEATING PIPE TO BRACKET
68
NUT , Replaced By: N913023010002
68
HEXAGON NUT ELECTRIC CABLE TO ALTERNATOR TERMINAL B-
68
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
68
HEXAGON NUT. NUT ELECTRIC CABLE TO ALTERNATOR
71
CLAMP ELECTRIC CABLE MOUNTING TO FIRE WALL
71
CLAMP HOSE TO FLANGE AND TO VALVE
74
LOCK NUT. SPRING NUT STEP TO ENTRANCE
74
LOCK NUT. SPRING NUT MOUNTING PARTS
74
LOCK. NUT , Replaced By: A0039941745
77
BRACKET
80
BRACKET
83
BRACKET
86
BOOT , Replaced By: A0005464635
86
BOOT , Replaced By: A0005464635
89
BRACKET
92
LOOM TIE
92
CABLE TIE LINE MOUNTING 375X8.4MM
92
CABLE TIE , Replaced By: A0049971890
92
CABLE TIE IONIC EXCHANGER 380X7.8MM
92
CABLE TIE. LOOM TIE , Replaced By: A0019978490
92
CABLE TIE310X5MM
95
BRACKET
95
BRACKET MOUNT FRAME BASIC MODULE 15X1,5X1100MM
98
BOOT , Replaced By: A0005463335
101
CAP DIAGNOSIS PLUG SOCKET
104
CAPTO 016 545 87 28
107
COVER PLATE
110
HOSE CLAMP
113
BRACKET
113
BRACKET , Replaced By: A0005010070
113
BRACKET ROCKER SWITCH
113
BRACKET
113
BRACKET
116
BRACKET ALTERNATOR
119
ANGLE FUSE STRIP
122
BRACKET HOSE ATTACHMENT
122
BRACKET
125
BRACKET , Replaced By: A3014780040
128
BRACKET ROCKER SWITCH
