Mercedes A0006840035 - Скоба крепления покрытия пола

TOURINO REISEBUS AUF MBC 444.203

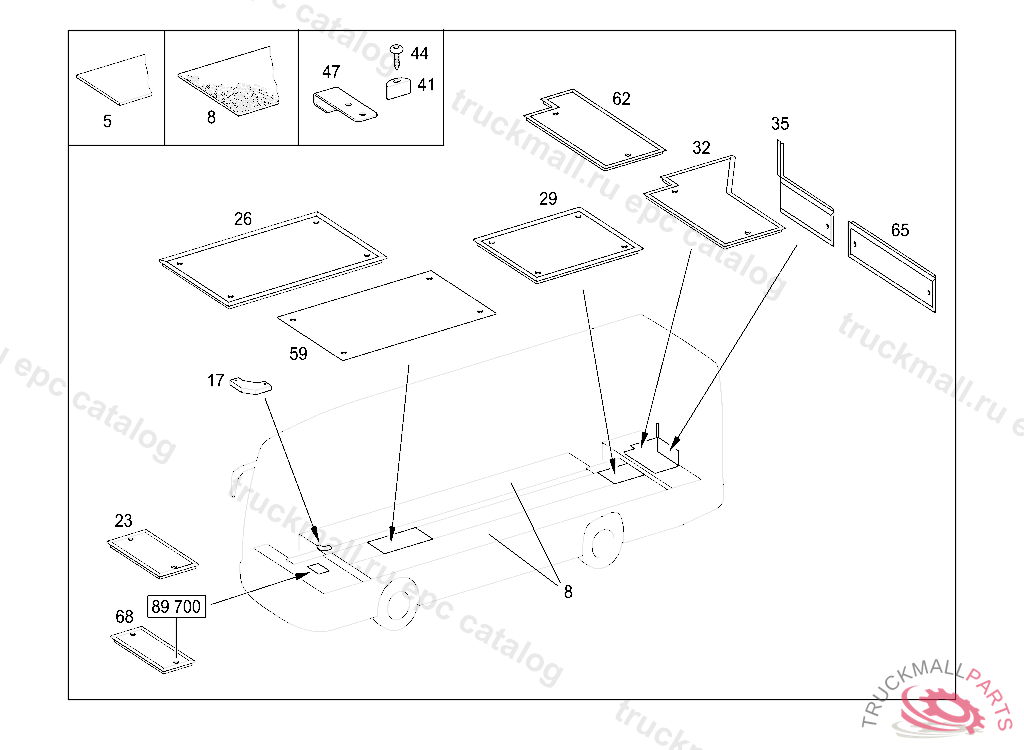

68 PANELLING AND LINING - 270 FLOORING,FLOOR FLAPS IL. 3

Поз.
Артикул
Описание
5
A0009837680
PLYWOOD WOOD VENEER 2500X1880X12MM,ACAJOU-RAL7000, ABMESSUNG ANGEBEN
5
A0009837480
PLYWOOD10X2365X150MM, ABMESSUNG ANGEBEN
8
A0006800003
CARPET FOOTMAT
8
A3579838995
CARPET , STATE COLOR NUMBER WHEN ORDERING
17
A6299850109
COVER SECTION CORNER PIECE 151,5X151,5MM
23
A4446800023
FLAP IN FRONT OF FRONT AXLE 429X270MM
26
A4446800123
FLAP ABOVE FRONT AXLE 1109X559MM
29
A4446800823
FLAP TRANSMISSION 677X515MM
29
A4446800223
FLAP TRANSMISSION 677X515MM
32
A4446800623
FLAP ENGINE
32
A4446800323
FLAP ENGINE
35
A4446800723
FLAP ENGINE
35
A4446800423
FLAP ENGINE
41
A0006840135
BRACKET
44
N000000000838
TAPPING SCREW4,8X22MM
47
A0006840035
BRACKET
59
A4446820017
COVERING FUEL TANK 1085X520MM
62
A4446801023
FLAP ENGINE
65
A4446801123
FLAP ENGINE
68
A4446800923
FLOOR FLAP VALUABLES COMPARTMENT
999
A6289850225
METAL SECTION STEP PROTECTION, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
