Mercedes A0018262982 - Патрон лампы указателя поворотов

TOURINO REISEBUS AUF MBC 444.203

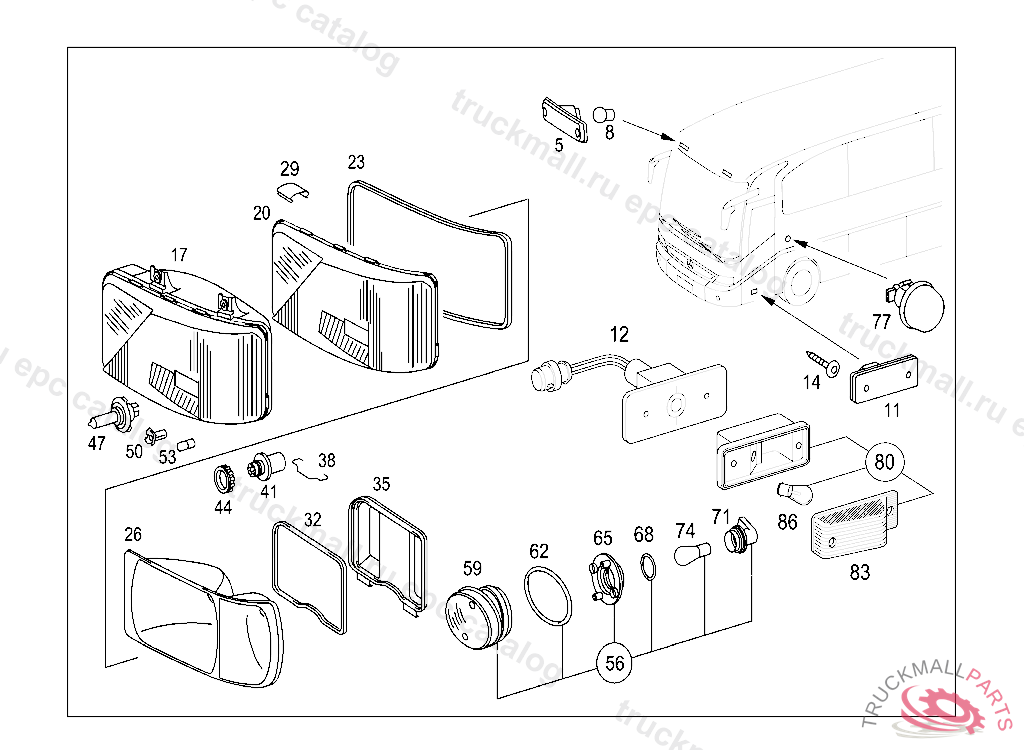

82 ELECTRICAL SYSTEM - 130 HEADLAMPS,BLINKER-AND-POSITION LAMPS, FRONT, SIDE REFLECTORS

Поз.
Артикул
Описание
5
A0008264747
SIDE MARKER LAMP (POSITION LAMP) FRONT TOP,WITHE, Replaced By: A0008264947
8
N072601024704
BULB WITH REINFORCED COILED FILAMENT 24 V/10 W
11
A0005444411
SIDE MARKER LAMP (SIDE MARKER LAMP),AMBER
12
A0005446011
SIDE MARKER LAMPLED, Replaced By: A0005446911
14
A0009881225
SLEEVE, CYLINDRICAL
17
A6668200159
LIGHTING UNIT LEFT HEADLAMP
17
A6668200259
LIGHTING UNIT RIGHT HEADLAMP
20
A0008261356
LENS LEFT
20
A0008261456
LENS RIGHT
23
A0018265180
SEAL
26
A0008260188
REFLECTOR RIGHT
26
A0008260088
REFLECTOR LEFT
29
A0008267084
SPRING
32
A0018265280
SEAL
35
A0008264124
COVER RIGHT
35
A0008264024
COVERING LEFT
38
A0008267184
SPRING
41
A0008260126
PLUG
44
A0005460522
NUT. CLAMPING RING
47
N072601024802
BULB24 V/70-75 W
50
N072601024270
BULB24V,70W
53
N072601024250
BULB24V-5W
56
A6668200158
SIGNAL LAMP LEFT AND RIGHT FRONT
59
A0028220010
LENS
62
A0008262291
SEAL RING
65
A0008260068
SEAL
68
A0129972645
SEAL RING
71
A0018262982
LAMP SOCKET
74
N000000000065
YELLOW BULB TAILLAMPS 24V-21W
77
A9738200021
BLINKER LAMP
80
A0008200520
BLINKER LAMP RAMP WARNING SYSTEM
80
A0008200620
BLINKER LAMP RIGHT
83
A0028221410
LENS RIGHT
83
A0028221310
LENS LEFT
86
N072601024190
BULB , Replaced By: N072601024192
