Поз.
Артикул
Описание

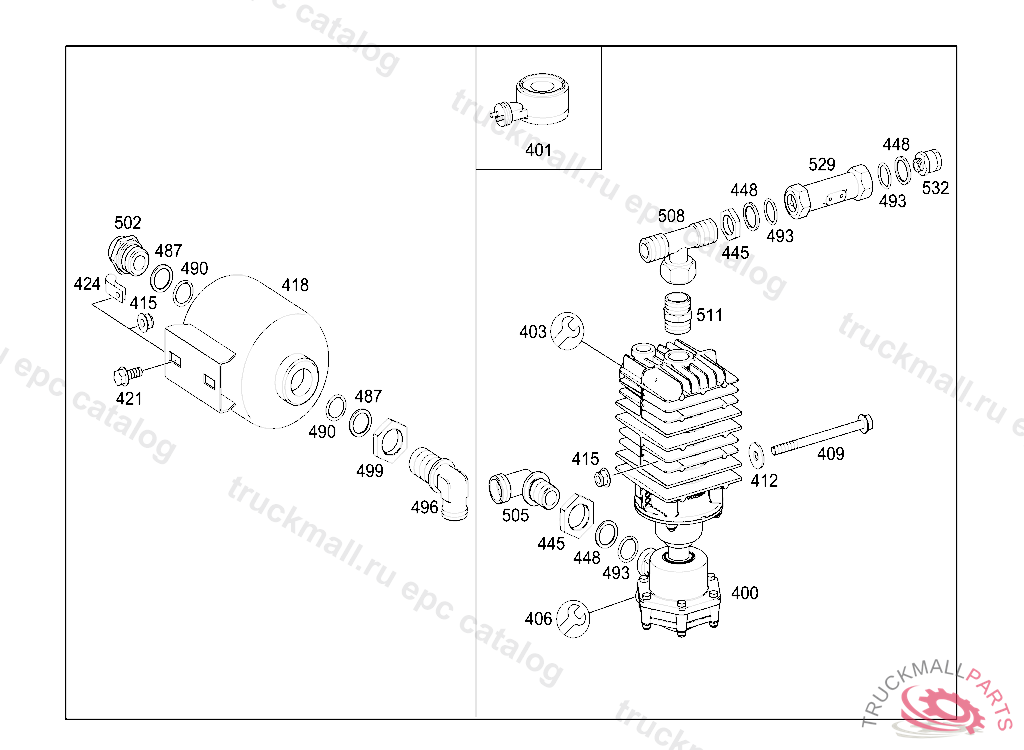

400
SEPARATOR COMPRESSED AIR DAMPING
401
SOLENOID VALVE
403
REPAIR KIT GASKET KIT
406
REPAIR KIT DRAIN VALVE TO A 005 432 74 01
409
HEXALOBULAR BOLT. SCREW , Replaced By: N910105008024
412
WASHER BRACKET TO CAB REAR PANEL
415
NUT ENGINE MOUNTING M8
418
RESERVOIR
421
SCREW BRACKET TO SIDE MEMBER M8X20
424
NUTM8
445
NUT FITTING TO BRACKET,230274
448
THRUST RING CHECK VALVE TO AIR RESERVOIR
487
THRUST RING SUCTION LINE TO OIL PUMP
490
SEAL RING LINE CONNECTION
493
SEAL RING LINE CONNECTION
496
FITTING
499
NUTM26X1.5-14H
502
SCREW-IN FITTING AIR COMPRESSOR,CONNECTION: "20"
502
SCREW-IN FITTING , Replaced By: A0029970271
505
ELBOW FITTING AIR DEHYDRATOR,CONNECTIONS: 1,21
508
T-FITTING CYCLONE PRE-FILTER BOWL
511
FITTING BETWEEN THE LINES
529
NON-RETURN VALVE. VALVE WITH CHECK VALVE WABCO,5 433388
532
FITTING (CHECK VALVE) NG12/M22X1.5, FROM IDENT NO. WEB 105309 ALSO INSTALLED ON 104831-104930,104931-105130,105261,105268-105295,105307. EXCEPT 105317,105318,105324,105382,105388. FROM IDENT NO. VF9 300289 ALSO INSTALLED ON 300046,300282-300284.
999
CLAMP REAR AXLE
999
CLAMP FRONT AXLE
999
CLAMP FRONT AXLE
999
CLAMP
999
CLAMP
