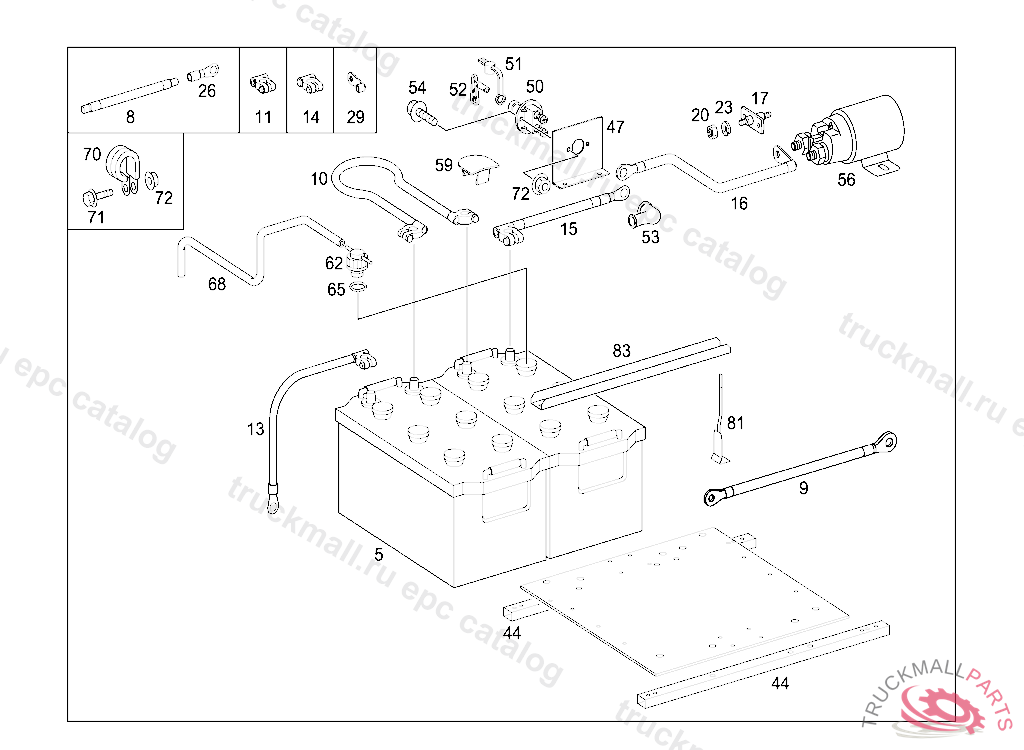

Поз.
Артикул
Описание
5
STARTER BATTERY LOW-MAINTENANCE 12V/200AH
5
BATTERY FILLED AND CHARGED 12V / 200 AH, STATE INDEX 64 WHEN ORDERING
5
BATTERY FILLED AND CHARGED 12V/200AH
8
ELECTRIC CABLE FROM BATTERY POS.POLE TO STARTING MOTOR 70 MM2, ORDER BY THE METER
8
ELECTRIC CABLE6MM2, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
8
ELECTRIC CABLE25MM2, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
8
ELECTRIC CABLE BATTERY AND CONNECTING CABLES 70MM2 (H01N2-D), ORDER BY THE METER
8
ELECTRICAL CABLE. ELECTRIC CABLE BATTERY AND CONNECTING CABLES 95MM2 (H01N2-D), ORDER BY THE METER
8
ELECTRIC CABLE RED 16 MM2, ORDER BY THE METER
8
ELECTRIC CABLE10MM2, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
8
ELECTRIC CABLE70MM2, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
8
ELECTRIC CABLE RUSSET BROWN 35MM2, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
8
ELECTRIC CABLE FROM BATTERY MASTER SWITCH TO CABLE CONNECTOR
8
ELECTRIC CABLE1X35MM2, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
8
ELECTRIC CABLE RED 35MM2, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
9
ELECTRICAL WIRING HARNESS
9
ELECTRICAL WIRING HARNESS
9
ELECTRICAL WIRING HARNESS
9
ELECTRICAL WIRING HARNESS
9
ELECTRICAL WIRING HARNESS FUSE 1X6
9
BATTERY CABLE
9
STARTER WIRING HARNESS
9
ELECTRICAL WIRING HARNESS FUSE 1X6
9
ELECTRICAL WIRING HARNESS FUSE 1X16
9
BATTERY CABLE UP TO GROUND (ENGINE COMPARTMENT)
10
BATTERY CABLE POS.TERM FROM BATTERY I TO BATTERY II
11
SOLDERING TERMINAL BATTERY POS. POLE 70 MM2
13
BATTERY CABLE NEG.TERM BATTERY COMPARTMENT GROUND BRANCH-OFF
14
SOLDERING TERMINAL BATTERY NEG. POLE 70 MM2
15
BATTERY CABLE POS.TERM FROM BATTERY POS. POLE TO BATTERY CUT-OFF
16
STARTER WIRING HARNESS
16
ELECTRICAL WIRING HARNESS
16
STARTER WIRING HARNESS
17
CONNECTOR BATTERY CABLE
20
NUT BOOT TO AIR DUCT AND TO AIR CLEANER
20
NUT
20
NUT SPRING-LOADED PUSH ROD
20
NUT , Replaced By: N304032005005
23
SPRING WASHER CABLE TO ALTERNATOR
23
SPRING WASHER ELECTRIC CABLE TO HORN
23
SPRING WASHER BRAKE SHOE WITH LINING
23
SPRING WASHER CABLE TO ALTERNATOR
26
CABLE SHOE6 - 25 MM
26
CABLE LUG WITH BORE 8.4MMX70MM2
26
CABLE SHOE BATTERY CABLE 10-70 MM
26
CABLE LUG8 - 10
26
CABLE SHOEA 5 - 10
26
CABLE SHOEA 5-16
26
CABLE SHOE FROM BATTERY MASTER SWITCH TO FRAME
26
CABLE SHOE BATTERY CABLE
26
CABLE SHOE NEG. CABLE
26
CABLE SHOEA 10-35
26
CABLE SHOEA 6 - 35
26
CABLE SHOE BATTERY CABLE
26
CABLE SHOE
26
CABLE SHOEA 10 - 35
29
CABLE SHOEA10-95
44
TUBE BATTERY MOUNTING
47
BRACKET BATTERY CUT-OFF
50
SWITCH BATTERY CUT-OFF
51
CAP BATTERY MASTER SWITCH
52
KEY BATTERY CUT-OFF " KISSLING "
53
BOOT. PROTECTIVE CAP CONNECTION TO BATTERY CUT-OFF
54
ECCENTRIC SCREW ROLLER BLIND TO BODY M6X16 T30
54
SCREW BRACKET AND CLAMP M6X20
54
HEXAGON HEAD BOLT
56
RELAY SAFETY MASTER SWITCH 300A
56
RELAY SAFETY MASTER SWITCH 300A
56
RELAY300 A,D 282361
59
BOOT POS. POLE
62
VENT , Replaced By: A0005410847
65
SEAL RING BATTERY COVER
68
HOSE BATTERY VENTING 11 X 2 MM, ORDER BY THE METER
70
CLAMP35/20, Replaced By: N000000007514
70
CLAMP LINE MOUNTING 10/15, Replaced By: N000000007511
70
CLAMP , Replaced By: N916016010211
70
CLAMP SUCTION/DELIVERY/RETURN LINES 15/15 MM, Replaced By: A0019950642
71
SCREW VALVE TO BRACKET M 8X60
71
SCREW. HEXAGON HEAD BOLT SENDER UNIT TO BRACKET M5X25,V 214287
71
SCREW , Replaced By: N914146006102
71
SCREW SHIFT LEVER TO BRACKET M8X30
71
SCREWM6X25
71
SCREW BRACKET TO DISC WHEEL M 10X16,D 315832
71
SCREW BRACKET AND CLAMP M6X20
71
HEXAGON HEAD BOLT. SCREW BRACKET TO TRANSMISSION M 10X50
71
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
71
HEXAGON HEAD BOLT
71
SCREW BATTERY CABLE TO BRACKET M6X45
72
NUT , Replaced By: N913023010002
72
NUT BRACKET TO FIRE WALL
72
HEXAGON NUT STARTING MOTOR TERMINAL 31
72
NUT PLUG SOCKET TO BRACKET,5 906887
81
SCREW BATTERY MOUNTING
83
CLAMPING RAIL ,086410
