Поз.
Артикул
Описание

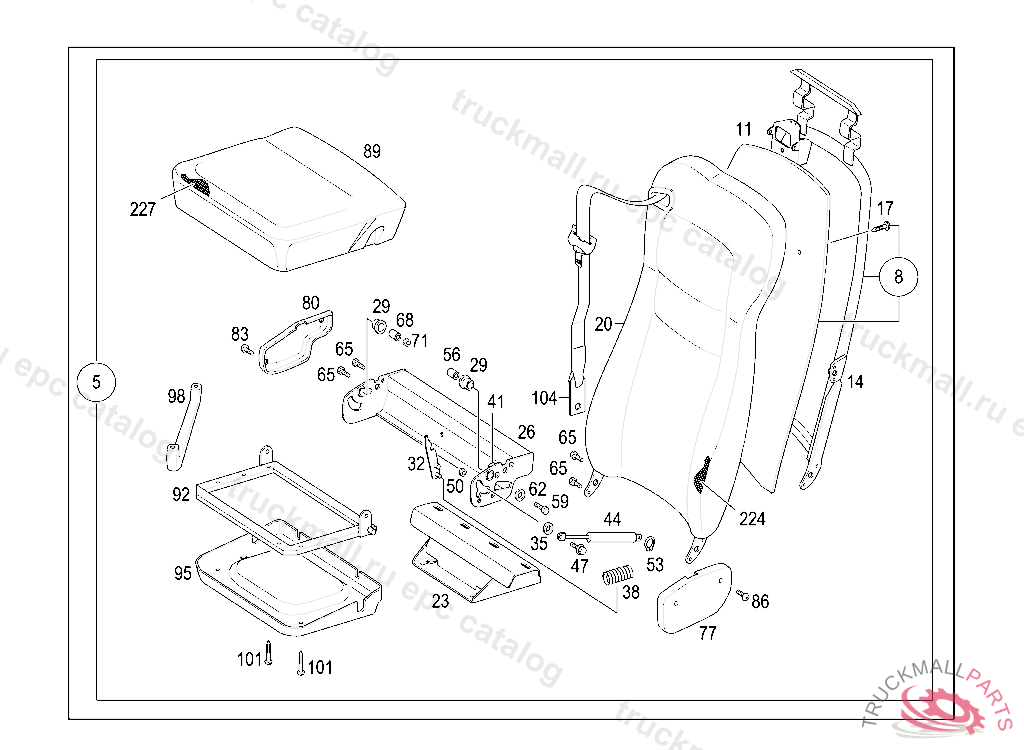

5
FRONT SEAT , DETERMINE COVER FABRIC VIA VEDOC "NFC 5117"
8
BACKREST
11
BACKREST SHELL
14
BACKREST FRAME
17
SCREW
20
PAD
20
SEAT ADAPTER
23
CONSOLE
26
FRAME
26
BACKREST FRAME
29
BUSHING
32
LEVER
35
WASHER8,1X16X2MM
38
SPRING TENSION SPRING
41
HANDLE
44
GAS SPRING
47
HEXAGON HEAD BOLT. SCREW CONSOLE TO COWL AND TO ROOF
50
NUT HEATING PIPE TO BRACKET
50
NUT BRACKET TO FIRE WALL
53
LOCK RING SLIDE TO RETAINING RAIL
56
BUSHING
59
SCREW GRIP RAIL MOUNTING M8X25 TX45
59
SCREW SHIFT LEVER TO BRACKET M8X30
62
WASHER EXHAUST MUFFLER TO STRAP
62
WASHER COMPRESSED AIR LINE TO BRACKET
62
WASHER PUMP TO CONSOLE
65
SCREW , Replaced By: N910143008002
65
SCREW SHIFT LEVER TO BRACKET M8X30
68
BUSHING
68
BUSHING BELT LOCK MOUNTING
68
BUSHING ATTACHMENT,SEAT BELT TONGUE
68
BUSHING
71
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
71
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
77
ORNAMENTAL COVER LEFT
77
ORNAMENTAL COVER LEFT
80
ORNAMENTAL COVER RIGHT
80
ORNAMENTAL COVER RIGHT
83
TAPPING SCREW3.5X16
83
TAPPING SCREW3.5X22
86
TAPPING SCREW3.5X22
89
SEAT ADAPTER
89
SEAT CUSHION , STATE IDENT NO. WHEN ORDERING
92
FRAME
95
SEAT SHELL
95
COVERING , TO BE ADAPTED DURING ASSEMBLY
95
COVERING , TO BE ADAPTED DURING ASSEMBLY
98
HANDLE ON SIDE OF AISLE AND ON SIDE OF WALL
101
TAPPING SCREW3.5X16
101
SCREW ASHTRAY MOUNTING
104
SAFETY BELT
104
SIDE MEMBER
224
COVER SEAT CUSHION, COVER LIKE PASSENGER SEAT, DETERMINE COVER FABRIC VIA VEDOC "NFC 5117"
227
COVER BACKSEAT, COVER LIKE PASSENGER SEAT, DETERMINE COVER FABRIC VIA VEDOC "NFC 5117"
999
FASTENER BUTTON
999
LEVER LOCKING MECHANISM,LEFT
999
TAPPING SCREW4.2X19
