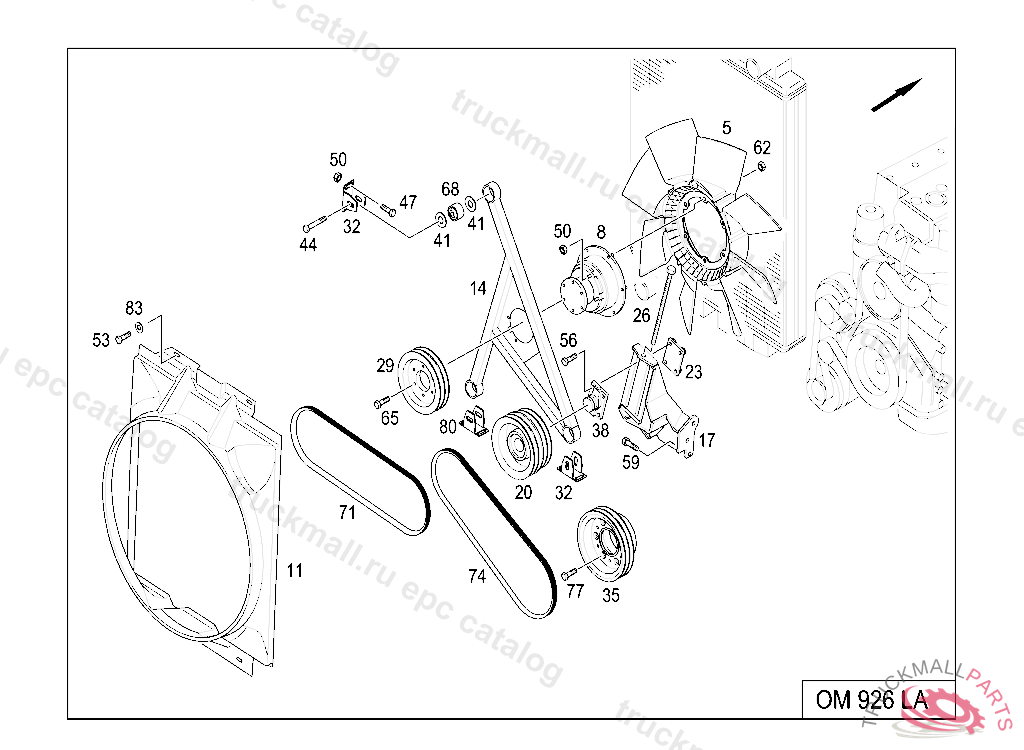

Поз.
Артикул
Описание
5
FAN
8
FAN DRIVE
11
FAN SHROUD
14
SUPPORT
17
CONSOLE
20
PULLEY
23
SUPPORTING PLATE
26
ROD BELT TIGHTENER CLAMPING BOLT
29
PULLEY
32
BRACKET
35
PULLEY
38
PIVOT PIN
41
RUBBER BUFFER
44
HEXAGON HEAD BOLT. SCREW VIBRATION ABSORBER TO BRACKET M 10X65
47
SCREW. HEXAGON HEAD BOLTM10X25
50
NUT , Replaced By: N913023010002
53
SCREW BRACKET TO CAB REAR PANEL M 8X20
56
SCREW BRACKET TO SIDE MEMBER M10X35
59
HEXAGON HEAD BOLT BRACKET TO BEARING BRACKET M12X35
62
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
65
SCREW , Replaced By: N910143008002
68
RUBBER BUFFER SUPPORT TO BRACKET
71
V-BELT1478MM
74
V-BELT1426MM
77
SCREW ROLLER ON SUPPORT
80
BRACKET
83
WASHER BRACKET TO CAB REAR PANEL
