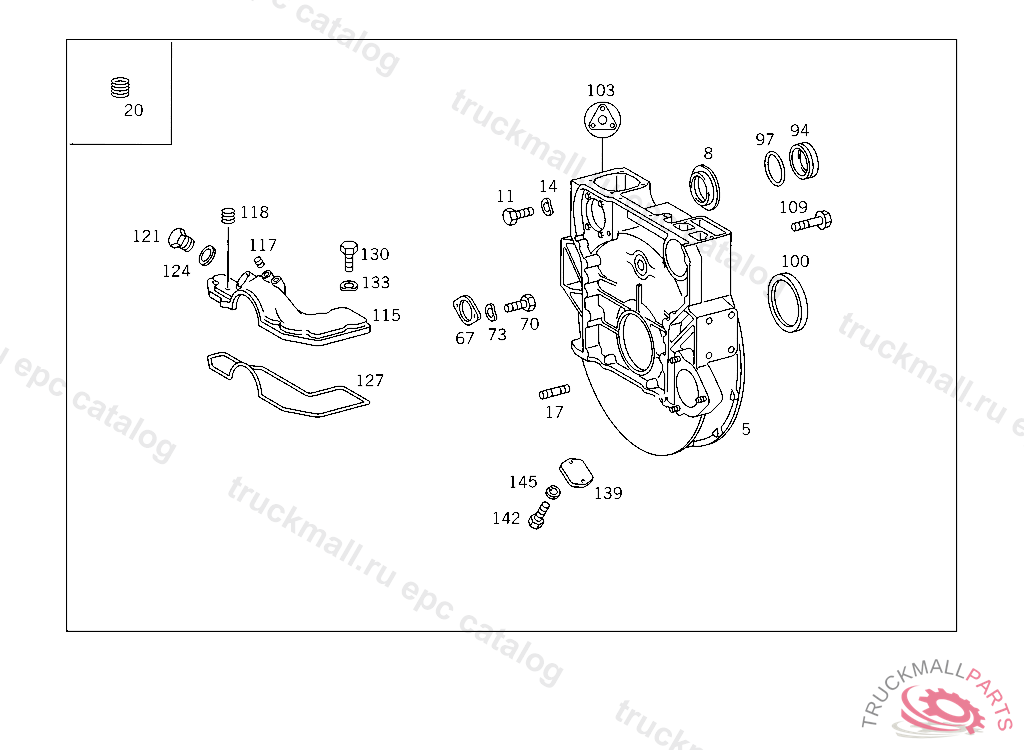

Поз.
Артикул
Описание
5
TIMING CASE
5
TIMING CASE
8
BUSHING AIR COMPRESSOR BEARING
11
SCREW BEARING BRACKET TO FIRE WALL
14
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
14
SPRING WASHER , Replaced By: N000137008212
17
STUD STARTING MOTOR MOUNTING
20
THREADED INSERT ,5 462573
20
THREADED INSERT
67
GUARD PLATE STARTING MOTOR MOUNTING
70
SCREW , Replaced By: N914125008319
70
SCREW BRAKE CABLE TO REAR AXLE
73
SPRING WASHER , Replaced By: N000137008212
73
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
94
EXPANSION PLUG
94
EXPANSION PLUG
97
SEAL RINGTO 388 476 71 69
100
SEAL RING CRANKSHAFT SEALING,REAR,708527 I.D., 120MM
100
SEAL RING , Replaced By: A0139971447
100
SEAL RING
103
GASKET KIT , Replaced By: A4230104833
103
GASKET KIT TIMING CASE TO CYLINDER CRANKCASE
109
SCREW CONVERTER HOUSING TO TRANSMISSION CASE
109
SCREW CONVERTER HOUSING TO TRANSMISSION CASE
115
COVER
117
THREADED INSERT
118
THREADED INSERT DE-AERATION LINE TO COOLING WATER LINE
121
SCREW PLUG
124
SEAL RING TO LOCK DELIVERY BEGINNING INSPECTION HOLE TO 423 010 02 17, 38
127
SEAL RING COVER TO TIMING CASE
127
SEAL RING , Replaced By: A4420150060
130
SCREW BUSHING TO TIMING CASE M8X22
133
SPRING WASHER , Replaced By: N000137008212
133
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
139
COVER TIMING CASE
139
COVER , Replaced By: A4030150109, +002N000933008147, +002N912004008102
142
SHEET METAL SCREW GEAR INDICATOR TO INSTRUMENT PANEL
142
TAPPING SCREW SIDE REFLECTORS,K 057592
142
SCREW STOP TO BATTERY CASE
145
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
