Mercedes A0005420646 - Соединитель

OM 447 447.900

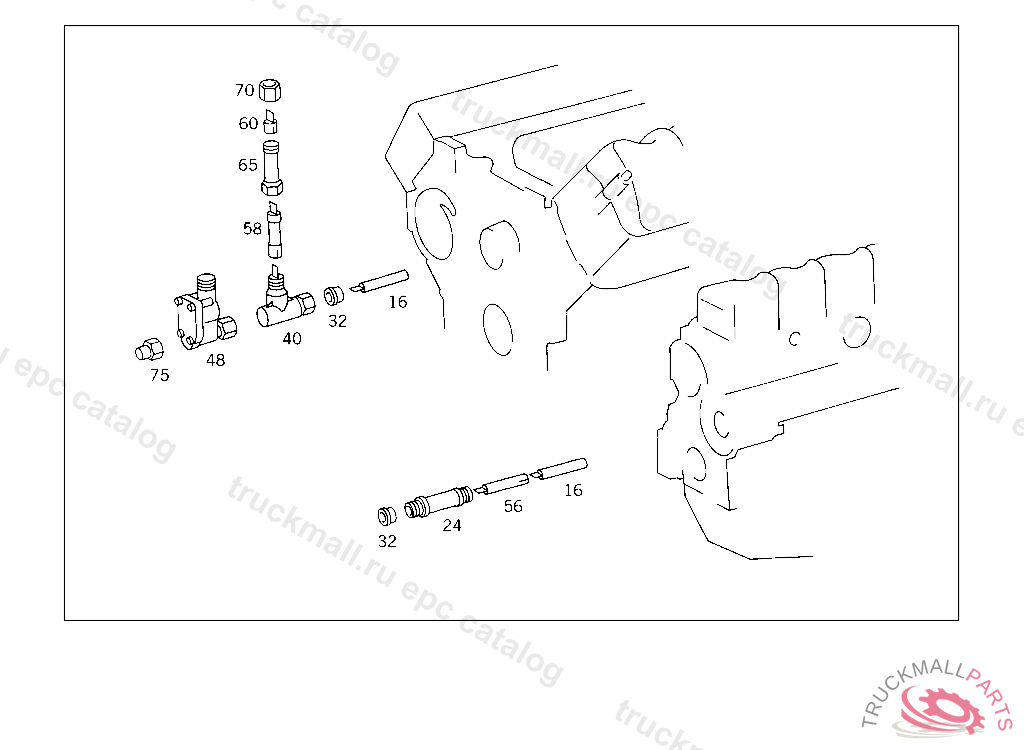

06 GOVERNER AND TACHOMETER - 001 SPEED INDICATOR DRIVE

Поз.
Артикул
Описание
16
A4070640009
FOLLOWER
16
A4070640109
FOLLOWER
16
A4030640109
FOLLOWER
24
A4070640011
CONNECTOR
24
A4070640111
CONNECTOR
32
A0089976347
SEAL RING
40
A0025428430
ANGLE DRIVE
40
A4075425030
ANGLE DRIVE ENGINE SPEED RECORDER
40
A0035427330
ANGLE DRIVE
40
A0025425430
ANGLE DRIVE , FROM CHASSIS 802404
48
A0035422517
SENDER UNIT
56
A0005421647
COUPLER
56
A0005422247
COUPLER , EXHAUST STOCK OF OLD PARTS UP TO ENGINE 023235, Replaced By: A4070640109
58
A0005420747
COUPLER ANGLE DRIVE
60
A0005420947
COUPLER
65
A0005420646
CONNECTOR ANGLE DRIVE
70
A0005420846
CONNECTOR
75
A0009900353
NUT
999
N915020022000
NUT AIR RESERVOIR,CONNECTION "14"
999
N007604030206
SCREW PLUG OIL FILLING
999
N007603030100
SEAL RING OIL DRAIN 30X36 MM
999
N007603022402
SEAL RING RELAY VALVE,CONNECTION: "20"
999
N007603018101
SEAL RING VALVE TO VALVE,K 025179
999
N000908018002
SCREW PLUG, FILLING OIL COOLER M18X1.5
999
A4030110221
COVER
999
A3039972240
SEAL RING ANGLE DRIVE
