OM 447 HLA EURO 2 EURO II
447.903

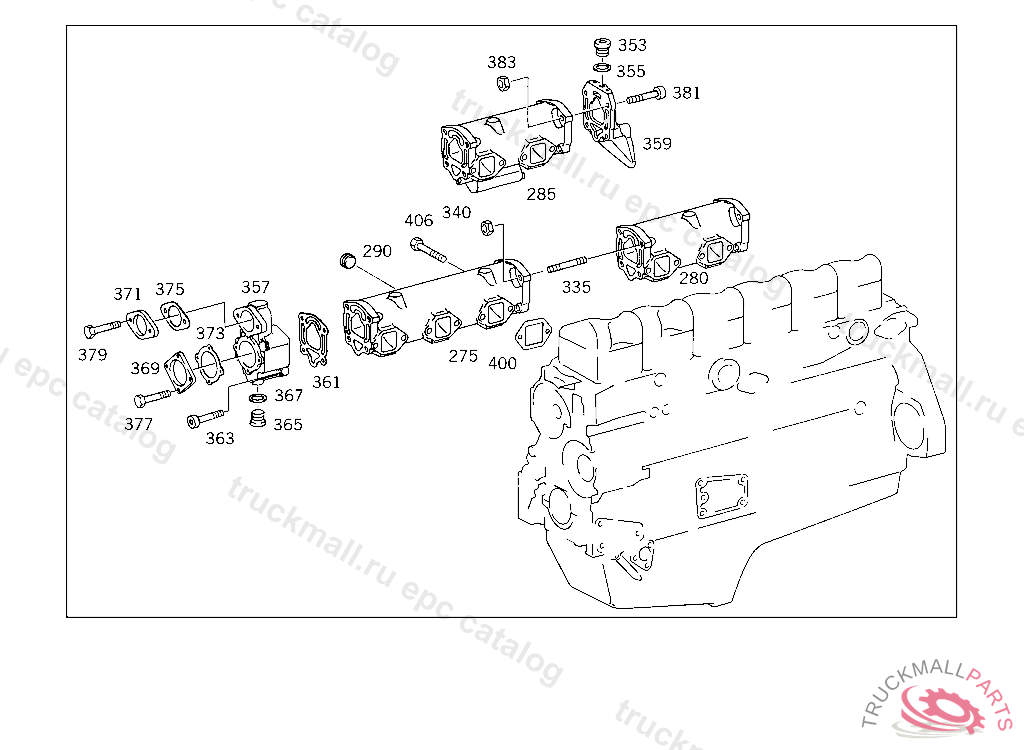

14 INTAKE AND EXHAUST MANIFOLDS
001 EXHAUST MANIFOLDS IL.6

Mercedes N000912012119 - Болт

OM 447 HLA EURO 2 EURO II 447.903

14 INTAKE AND EXHAUST MANIFOLDS - 001 EXHAUST MANIFOLDS IL.6

Поз.
Артикул
Описание
275
A4031404309
EXHAUST MANIFOLD
280
A4031404409
EXHAUST MANIFOLD
285
A4031404509
EXHAUST MANIFOLD
290
N000906022001
SCREW PLUG FRONT AXLE RELAY VALVE "20"
335
N000939012103
STUD BOLT
340
N308673012002
NUT. HEXAGON NUT SHOCK ABSORBER MOUNTING
340
N000934012023
NUT , Replaced By: N308673012002
353
N000908014001
SCREW PLUG , Replaced By: N000908014009
353
N000908014009
SCREW PLUGTO 000 553 03 05,000 553 18 05,
355
N007603014405
SEAL RING FUEL LINE TO FEED PUMP
357
A4031420191
COVER SEA-WATER INLET COVER TO EXHAUST MANIFOLD
359
A4031420291
COVER SEA-WATER INLET COVER TO EXHAUST MANIFOLD
361
A4031420580
GASKET SEA-WATER INLET COVER TO EXHAUST MANIFOLD
363
N000912012157
SCREW SEA-WATER OUTLET COVER TO EXHAUST MANIFOLD
363
N000912012119
SCREW BUFFER TO BODY M 12X30
365
N000908018010
SCREW PLUG BELL HOUSING
367
N007603018101
SEAL RING VALVE TO VALVE,K 025179
369
A4031420915
FLANGE SEA-WATER OUTLET
371
A4031421015
FLANGE SEA-WATER OUTLET
373
A4031420680
GASKET SEA-WATER OUTLET
375
A4031420780
GASKET SEA-WATER OUTLET
377
N304017010040
SCREW STRUT TO CROSS MEMBER M 10X25
377
N000933010174
SCREW , Replaced By: N304017010040
379
N000933012016
SCREW , Replaced By: N304017012020
379
N304017012020
SCREW END PIECE TO EXHAUST PIPE M 12X30
381
N000912012065
SCREW , UP TO CHASSIS 414221 FROM CHASSIS 414222 SEE SPARE PARTS 766.1
381
N000912012157
SCREW SEA-WATER OUTLET COVER TO EXHAUST MANIFOLD
381
N000912012158
SCREW SEA-WATER OUTLET COVER TO EXHAUST MANIFOLD
383
N000934012117
NUT SEA-WATER OUTLET COVER TO EXHAUST MANIFOLD
400
A4031420380
GASKET EXHAUST MANIFOLD TO CYLINDER HEAD
400
A5061420680
GASKET EXHAUST MANIFOLD
406
N304014010015
SCREW DUMPER SHAFT,5 515436
406
N000931010413
SCREW EXHAUST MANIFOLD TO CYLINDER HEAD
406
N000931010345
SCREW , Replaced By: N304014010015
999
N910143010000
SCREW PLATE TO FRAME M 10X45
999
N910105012006
SCREW. HEXAGON HEAD BOLT BRACKET TO TRANSMISSION CASE M12X1.75X55
999
N304017012018
SCREW RELEASE LEVER TO SHAFT
999
N007349010007
WASHER STRUT TO CROSS MEMBER
999
N006796012100
CONICAL SPRING WASHER CONSOLE TO SIDE MEMBER
999
N000931010306
SCREW SHIFTING ROD TO JOINT
999
A5061421601
EXHAUST MANIFOLD CENTRAL
999
A5061420911
CONNECTOR INTERMEDIATE PIECE TO BRACKET
999
A5061420840
BRACKET AT CYLINDER HEAD/OVERFLOW VALVE/FUEL FILTER
999
A5061420359
FLEXIBLE METAL TUBE
999
A5061420259
FLEXIBLE METAL TUBE
999
A5061401514
EXHAUST MANIFOLD CENTRAL
999
A5061401414
EXHAUST MANIFOLD CENTRAL
999
A5061400440
BRACKET CONSOLE TO BRACKET
999
A5060160139
SUPPORT , TO BE ORDERED ONLY FROM MTU-FRIEDRICHSHAFEN
999
A5060160069
SCREW AT CYLINDER HEAD/OVERFLOW VALVE/FUEL FILTER
999
A5060140023
FRAME INTERMEDIATE PIECE TO BRACKET
999
A4449905119
SCREW , Replaced By: A4479905504
999
A4271420001
EXHAUST MANIFOLD ,027658, Replaced By: A4271420401, +012A4031420212, +012A4479905404
999
A4241420080
GASKET , Replaced By: A4441420280
999
A4241400010
EXHAUST MANIFOLD , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO ENGINE OM 401-266672 OM 421-188127, Replaced By: A4441400010
999
A4239900040
WASHER , Replaced By: N007349010003
999
A4229900401
SCREW CYLINDER HEAD TO CYLINDER CRANKCASE
999
A4229900019
SCREW EXHAUST MANIFOLD TO CYLINDER HEAD,407.901 027659
999
A4221400010
EXHAUST MANIFOLD , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO ENGINE OM 402-266672 OM 422-188127 OM 442-012717, Replaced By: A4421400010
999
A4071422001
EXHAUST MANIFOLD , Replaced By: A4271420001
999
A4071421301
EXHAUST MANIFOLD , Replaced By: A4271420101, +012A4479905404
999
A4071421201
EXHAUST MANIFOLD ,027658, Replaced By: A4271420401, +012A4031420212, +012A4479905404
999
A4071421001
EXHAUST MANIFOLD FRONT
999
A4071420601
EXHAUST MANIFOLD , Replaced By: A4071421601
999
A4071420380
GASKET EXHAUST MANIFOLD TO CYLINDER HEAD
999
A4071420301
EXHAUST MANIFOLD , Replaced By: A4071421601
999
A4071420280
GASKET , Replaced By: A4471420180
999
A4071400609
EXHAUST MANIFOLD , Replaced By: A4071400709
999
A4071400009
EXHAUST MANIFOLD , Replaced By: A4071400709
999
A4049905119
SCREW FRONT SUSPENSION EYE TO CYLINDER HEAD
999
A4041422201
EXHAUST MANIFOLD , Replaced By: A4041400409
999
A4041422101
EXHAUST MANIFOLD , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A4041400209
999
A4041420601
EXHAUST MANIFOLD , Replaced By: A4211420201, +001A4224920080
999
A4041420501
EXHAUST MANIFOLD , Replaced By: A4211420201, +001A4224920080
999
A4041420411
CONNECTOR , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 001847, Replaced By: A4241420211
999
A4041420101
EXHAUST MANIFOLD , Replaced By: A4041420801
999
A4041420009
EXHAUST COLLECTOR PIPE , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A4041400209
999
A4041420001
EXHAUST MANIFOLD , Replaced By: A4041420701
999
A4039900219
SCREW , Replaced By: A4479905204
999
A4039900019
SCREW EXHAUST MANIFOLD TO CYLINDER HEAD,407.901 027658
999
A4031420180
GASKET , Replaced By: A4031420380
999
A4031420112
CLAMPING PIECE , Replaced By: A4031420212
999
A3609901640
WASHER , Replaced By: A4239900040
999
A3551440550
BUSHING , Replaced By: A4031440450
999
A3151441850
BUSHING , Replaced By: A4031440550
999
A3024900080
FLANGE GASKET , Replaced By: A4424920080
999
A0079979048
SEAL RING , Replaced By: A0179971748
999
A0001423357
SEAL RING BETWEEN EXHAUST MANIFOLD,FRONT,CENTRAL AND REAR
