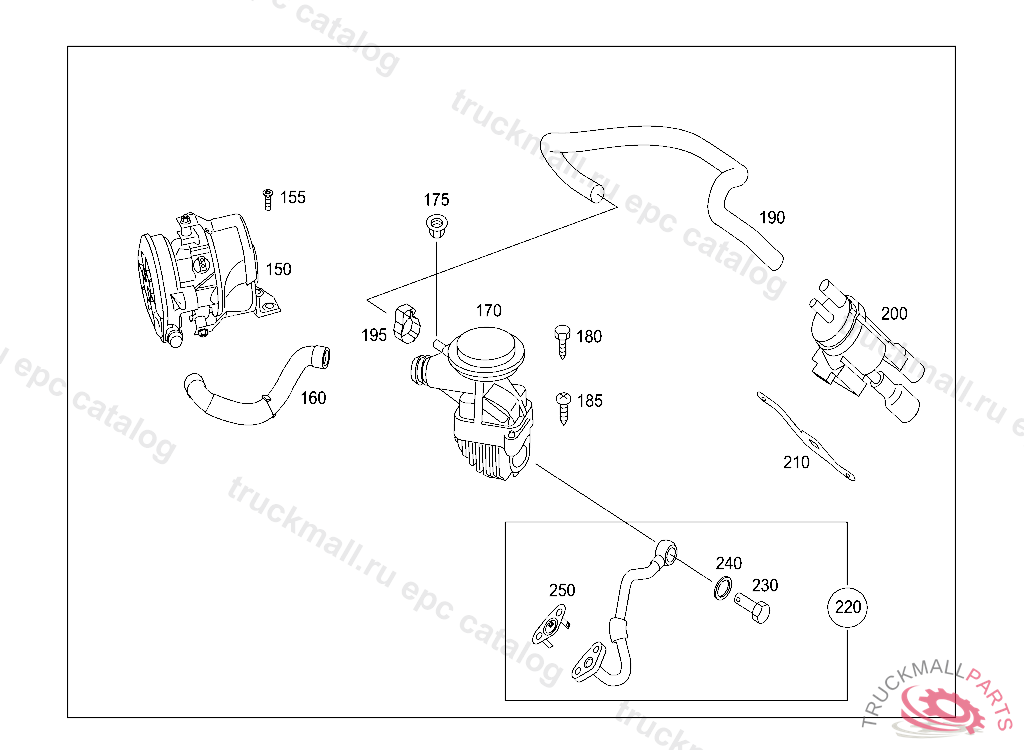

SMART CROSSBLADE - 450.418 - 01 ENGINE HOUSING
Поз.
Артикул
Описание
150
SEKUNDAERLUFTPU
155
HEXALOBULAR BOLTM8X16
160
HOSE SLP- TO PUMP
170
COMBINATION VALVE AIR
185
HEXALOBULAR BOLT CAMSHAFT BEARINGS M6X38
190
HOSE EUV2 ELEC.SWITCH-OVER VALVE TO COMBI.VALVE
195
CLAMP HOSE TO PUMP 9 MM - 9.5 MM
200
ELECTRIC SWITCHING VALVE
210
HOLDER EUV2 ELECTRIC CHANGE-OVER VALVE
220
PIPELINE TO TURBOCHARGER
230
HOLLOW SCREW M16 X 1.5 ON FILTER M16 X 1,5
240
SEALING RING A 16 X 20-CU ON FILTER A 16 X 20-CU
250
SEAL TO TURBOCHARGER
