Mercedes A0109909101 - Болт

SMART ROADSTER-COUPE BRABUS 452.337

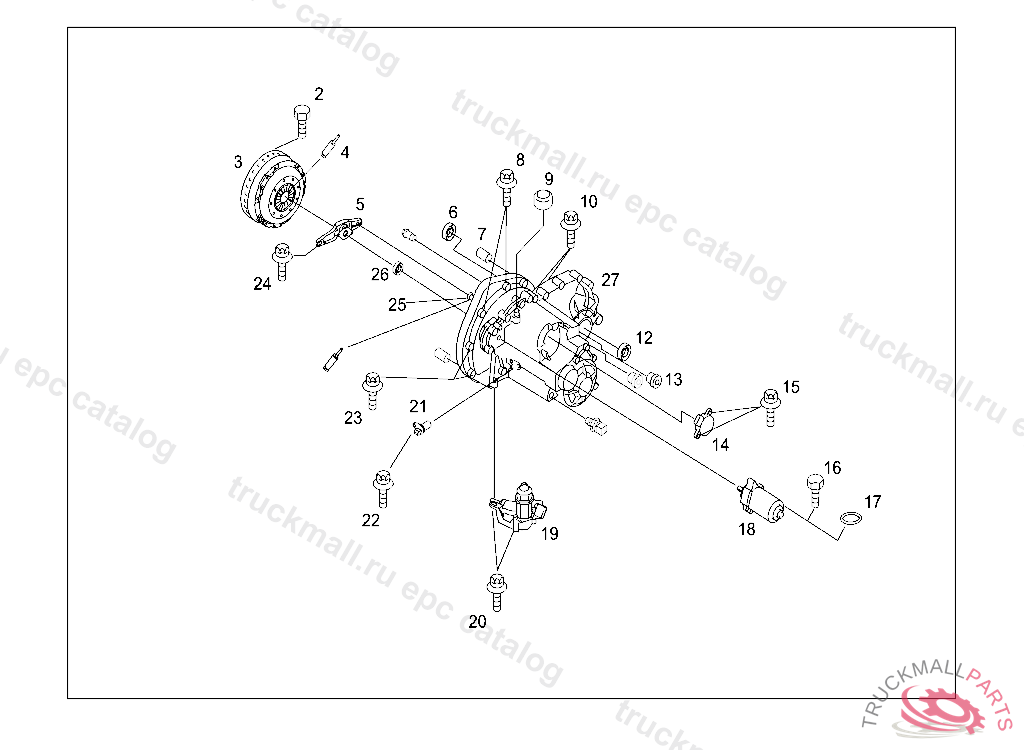

26 GEARSHIFT MECHANISM - 030 FLOOR SHIFT USED WITH MANUAL FIVE- SPEED TRANSMISSION

Поз.
Артикул
Описание
2
A0109909101
BOLTM10 X 18 - 8.8
3
Q0018168V001000000
CLUTCH
4
Q0001893V000000000
GREASE GEARSHAFT
5
Q0001709V007000000
RELEASE SYSTEM
6
Q0000460V000000000
ROTARY SHAFT SEAL
7
A1170150049
CENTERING SLEEVE
8
N910143008014
HEXALOBULAR BOLT. SCREW FRONT EXHAUST PIPE TO BRACKET M 8X120
9
Q0003206V002000000
BREATHER CAP
10
N910143008009
HEXALOBULAR BOLT TRAVEL SENSOR TO FRAME SIDE MEMBER M8X70,V 207570
12
Q0000460V000000000
ROTARY SHAFT SEAL
13
Q0001398V002000000
SCREW PLUG M18 X 1.5
14
Q0003254V009000000
ANGLE SENSOR
15
Q0004101V000000000
SCREW MALE BIHEX M14 X 1.
16
Q0001847V000000000
TORX SCREW M6 X 20 - 8.8M6 X 35
17
Q0001857V000000000
O-RING 55 X 2
18
Q0003227V009000000
ELECTRIC MOTOR
19
Q0003226V016000000
CLUTCH ACTUATOR
20
A0009902603
BOLT
21
Q0015150V001000000
SPEED SENSOR 37/45 KW
22
Q0004101V000000000
SCREW MALE BIHEX M14 X 1.
23
N910143008019
HEXALOBULAR BOLT. SCREW CLAMP ON BRACKET M 8X60
24
Q0004101V000000000
SCREW MALE BIHEX M14 X 1.
25
Q0003204V002000000
MUSHROOM-SHAPED BUTTON
26
Q0002620V000000000
ROTARY SHAFT SEAL
27
Q0018166V001000000
TRANSMISSION 74 KW , L 02469020040204
