Mercedes A1600500369 - Клипса

SMART ROADSTER-COUPE BRABUS 452.337

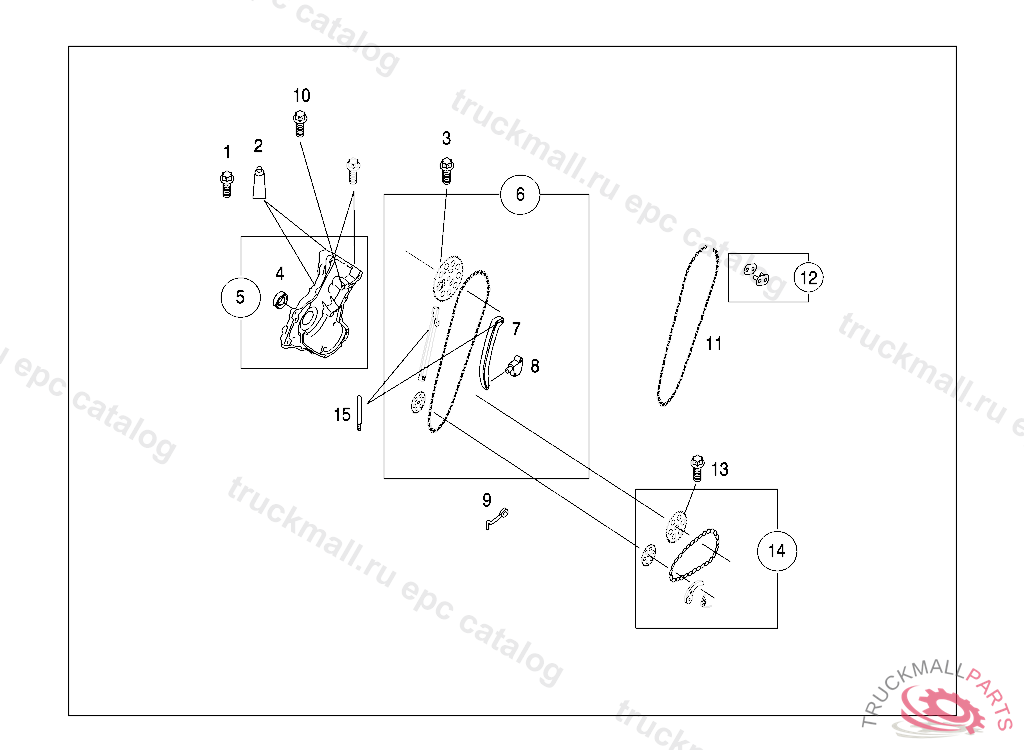

05 ENGINE TIMING - 045 CHAIN DRIVE

Поз.
Артикул
Описание
1
Q0002460V000000000
COLLAR SCREWTORX M8 X 45S - 8.8
2
Q0000282V000000000
SEALING COMPOUND
3
N910105010011
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
4
Q0000337V002000000
SHAFT SEAL
5
A1600100017
COVER
5
Q0002564V002000000
TIMING CASE COVER DIESEL
6
A1600500269
CHAIN PULL
6
Q0004822V002000000
TIMING DRIVE
7
A1600520016
SLIDE RAIL
8
A1600500211
CHAIN TIGHTENER
9
A1601800143
OIL NOZZLE
9
Q0004886V001000000
OIL SPRAY
10
Q0007208V000000000
SCREW DUOTAPTITE M6 X 53
10
N000000001119
HEXALOBULAR BOLT SHIELD AND PRESSURE SENSOR AND SPACER SLEEVE TO REAR BRACKET M6X33
11
Q0007680V001000000
REPAIR CHAIN
12
Q0007681V001000000
RIVETED CHAIN LINK
13
N000000001428
HEXALOBULAR BOLT AIR CLEANER TO BRACKET
14
A1600500369
CHAIN PULL
15
A6010520674
PIN SLIDING RAIL TO CYLINDER HEAD,942/946/947 037074
15
Q0003057V000000000
BEARING PIN CRANKCASE
